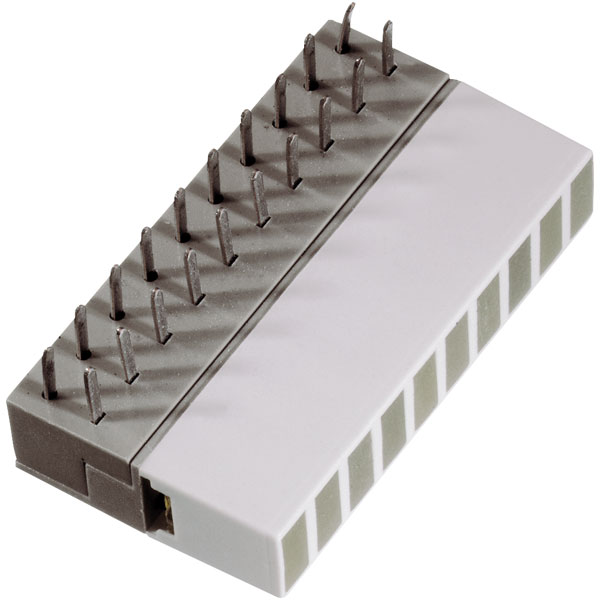

Signal Construct 10-Way Rectangular LED Array 2.54mm Pitch Horizontal Mounting

Signal Construct Brand: Signal Construct

These 10-way mini LED arrays have a large illuminative area in the smallest housing dimensions, with the active surface of the fitted LED corresponding with a standard 5 x 2mm LED. To avoid cross-irradiation between the LEDs they are fully included in the housing. The LED housing is mounted in a right angled housing so that the LED array may be exchanged without the need for unsoldering/soldering. The assembly is designed for PCB mounting on a 2.54mm pitch.

  • Available in a choice of colours
  • Solder pins on a 2.54mm pitch
  • Overexposure is prevented by use of a light shaft
  • Precise pin positioning and V-shaped contact tips ensure problem-free mounting
  • Dimensions (L x W x H) 25.4 x 14 x 5mm
  • UL 94 HB Housing
Description Image Product Buy Pricing (Ex VAT) Colour Length Number of LEDs Height Luminous Intensity Width
Signal Construct ZAEW1030 10 Way LED Array Red 2.54mm Pitch
Signal Construct ZAEW1030 10 Way LED Array Red 2.54mm Pitch
Standard range
Order code: 50-0769
MPN: ZAEW1030

14 in stock, despatched in 4 working days
1+ £4.28
Price per unit Ex VAT 		Red 25.4mm 10 5mm 3.7mcd 14mm
Signal Construct ZAEW1032 10 Way LED Array Green 2.54mm Pitch
Signal Construct ZAEW1032 10 Way LED Array Green 2.54mm Pitch
Standard range
Order code: 50-0771
MPN: ZAEW1032

27 in stock, despatched in 4 working days
2+ £3.57
Price per unit Ex VAT 		Green 25.4mm 10 5mm 3.7mcd 14mm
ColourWavelengthLum. int. (mcd)ViewingOperating
(nm)@ IF (10mA)angletemperature
Red6283.7104°-40°C to +70°C
Yellow5882.5104°-40°C to +70°C
Green5693.7104°-40°C to +70°C
