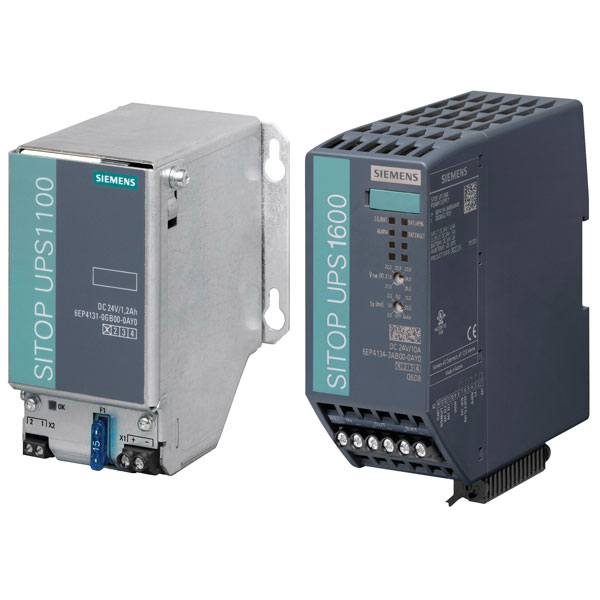

Siemens SITOP UPS1600 UPS and SITOP UPS1100 Battery Modules

Siemens Brand: Siemens

A range of UPS units and battery modules that augment the SITOP 24V power supply units and give uninterruptible supplies with rated currents up to 20A.

UP1600 Uninterruptible Power Supplies
These SITOP UPS modules are DIN rail mounted units that, in conjunction with a battery module, are used to buffer the load current from a 24V power supply. The UPS has digital inputs/outputs and are available with a choice of interfaces.

UPS1100 Battery Modules
These DIN rail mounting SITOP battery modules feature integrated electronics that enable intelligent battery management, maintenance-free accumulators, status monitoring and a high degree of protection.

  • Provides seamless switchover for missing supply voltages
  • Modular DIN Rail mounting system
  • Remote monitoring
  • High dynamic overload capability
  • High charging currents
Description Image Product Buy Pricing (Ex VAT) Output Voltage Output Current Input Voltage Number of Outputs
Siemens 6EP4134-3AB00-0AY0 DIN Rail Mounted UPS
Siemens 6EP4134-3AB00-0AY0 DIN Rail Mounted UPS
Standard range
Order code: 64-8139
MPN: 6EP41343AB000AY0

9 in stock, despatched in 4 working days
1+ £215.44
Price per unit Ex VAT 		23.8V 10A 24V 1
Siemens 6EP4134-3AB00-2AY0 DIN Rail Mounted UPS
Siemens 6EP4134-3AB00-2AY0 DIN Rail Mounted UPS
Standard range
Order code: 64-8141
MPN: 6EP41343AB002AY0

2 in stock, despatched in 4 working days
1+ £336.55
Price per unit Ex VAT 		23.8 10 24 1
UPS
Order code64-813964-814164-8143
Part number6EP4134-3AB00-0AY06EP4134-3AB00-2AY06EP4136-3AB00-1AY0
Rated input current14A14A25A
Rated output current10A10A20A
With power boost 30ms30A30A60A
Extra power for 5s/min15A15A30A
Output charge current max.3A3A4A
Ambient temperature-25°C to +70°C-25°C to +70°C-25°C to +60°C

Input
Rated input voltage24V DC
Input voltage range21 to 29V DC
Output
Output voltage normal modeInput voltage - 0.2V
Output voltage buffer mode...
...(no load)27V DC
...(50% battery rated current)24V DC
...(100% battery rated current)22V
...(exhaustive discharge protection)18.5V

Battery modules
Order code64-813664-8137
Part number6EP4131-0GB00-0AY06EP4133-0GB00-0AY0
Rating1.2Ah3.2A/h
Input
Charging current0.3CA0.3CA
Output
Rated output voltage24V DC24V DC
Rated output current10A20A
Battery fuse (plug-in)15A/32V25A/32V
Backup times
@ 10A1 min9 mins
@ 20A-1 min
Ambient temperature0°C to +40°C0°C to +40°C
