Siemens 7KM2200-2EA00-1JB1 SENTRON meter 3-phase LAN Modbus TCP

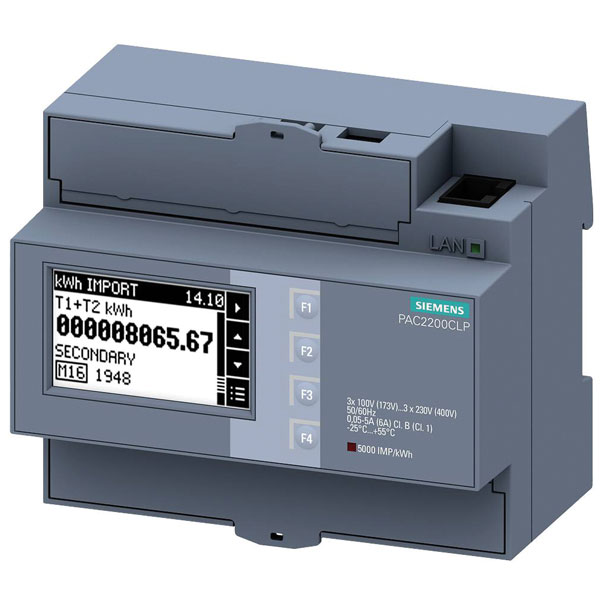

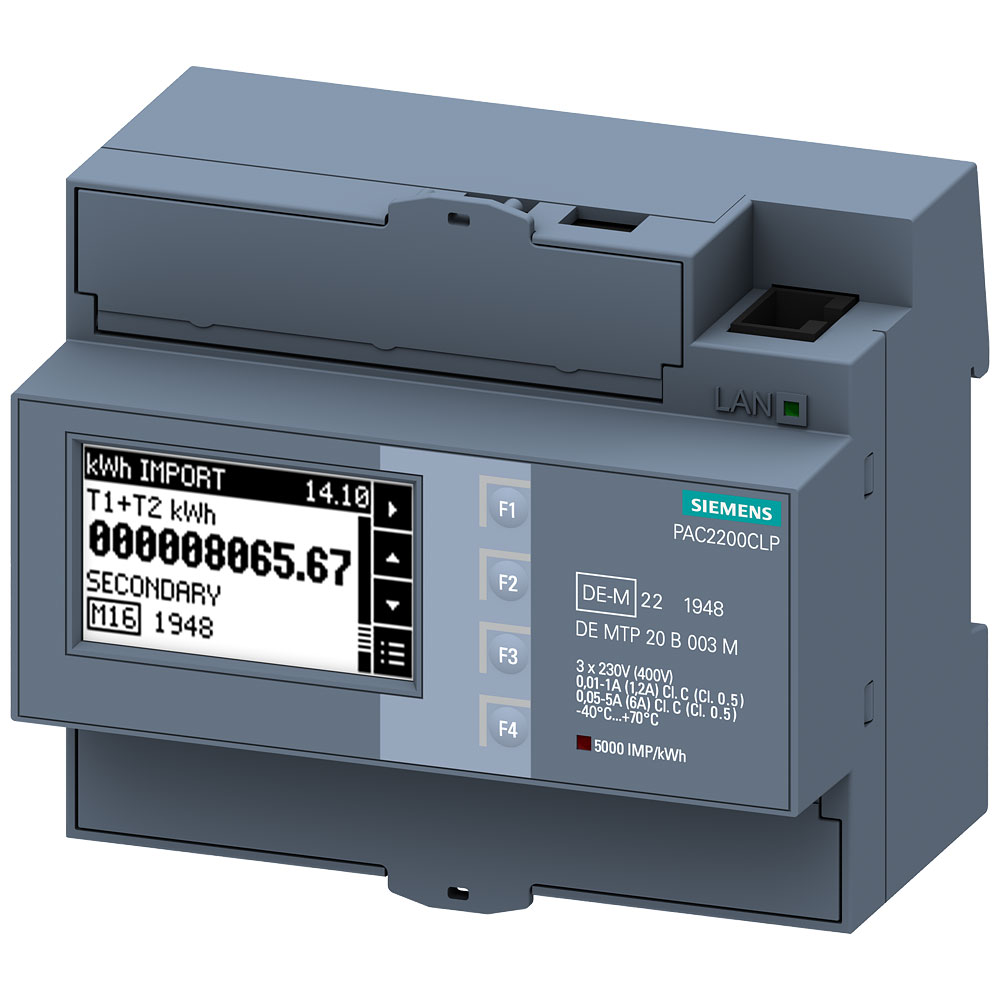

Image Representative of Range

Siemens 7KM2200-2EA00-1JB1 SENTRON meter 3-phase LAN Modbus TCP

Siemens
Order Code:

07-0848

Brand: Siemens MPN: 7KM22002EA001JB1 EAN-13: 4001869576817
Qty Unit Price (Ex VAT)
1+ £554.46
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 4 weeks

The Siemens 7KM2200-2EA00-1JB1 energy consumption meter accurately measures and monitors electrical energy use. It features advanced data logging capabilities, making it ideal for both residential and commercial applications. This device helps in efficient energy management and cost-saving by tracking power consumption.
Accuracy Class N/A
Approval N/A
Calibrated true
Degree of protection (IP) IP40
Degree of protection (NEMA) N/A
Depth N/A
Dim (L x W x H) 71 x 108 x 97 mm
EEC40 signature N/A
Energy type Effecive and reactive power
Escapement mechanism true
Frequency N/A
Height 97mm
Length 71mm
Max. current (Imax) 100A
Measurement type load profile true
MID-approved No
Misc Attribute 7KM2200-2EA00-1JB1
Model Measurement transformer
Mounting method N/A
Nominal current (In) 5A
Nominal voltage (Un) L-L 3 - 480V
Nominal voltage (Un) N-L 3 - 276V
Number of positions total (counter) 12
Pole type Three conductor/four conductor
Power Consumption N/A
Pulse output Electrical
Pulse rate N/A
Pulse type S0
Suitable For Purchase/supply
Tariff control N/A
Tariff type Two-tariff
Type Energy consumption meter
Type of indication Digital
Type of interface N/A
Type of meter Electronic
Width 108mm
Width in number of modular spacings 6
With lock code true
