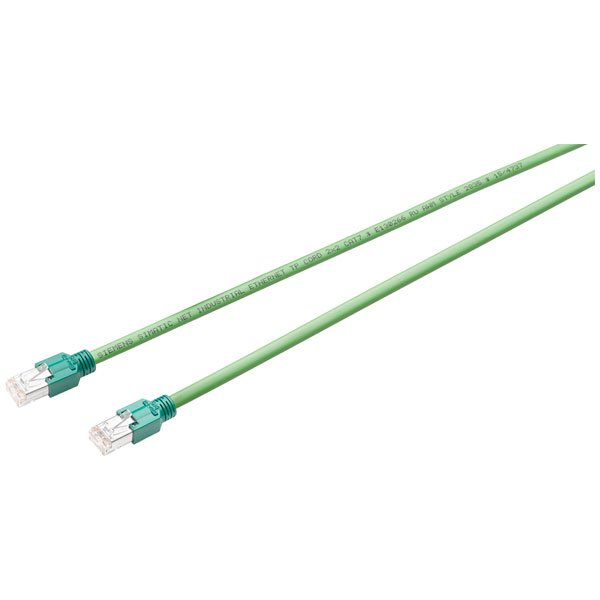

Siemens 6XV18502GH20 Ethernet cord RJ45/RJ45 2m silicone-free suitable

Siemens 6XV1850-2GH20 is a Industrial Ethernet cable designed for reliable data transmission. It features a robust, oil-resistant sheath suitable for harsh environments. Common applications include connecting industrial network components in factory automation and process control.

Connector 1	RJ45
Connector 2	RJ-45
Colour	Green
Length	2m
Type	6XV1850-2GH20
Approved type of underground installation	N/A
Armouring/reinforcement	N/A
AWG size	N/A
Cable geometry	N/A
Cable height approximate	N/A
Cable standard	Cat5
Cable Type	Crossover cable
Cable type according to BS 4737-3.30	N/A
Cable width approximate	N/A
Category	7
Certified for shipboard application	N/A
Characteristic impedance	N/A
Circuit integrity according to DIN 4102-12	N/A
Circuit integrity according to IEC 60331-23	N/A
Colour outer sheath	N/A
Compatible with Grade2TV according to XP-C 90-483	N/A
Compatible with Grade3TV according to XP-C 90-483	N/A
Compliant with BT (British Telecom) specification	N/A
Conductor category	N/A
Conductor Cross Section	0.48mm
Conductor Material	N/A
Conductor surface	N/A
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Copper
Core identification	N/A
Core identification according to HD 308 S2	N/A
Data transfer rate	100 Mbit/s
Diameter conductor	0.48mm
Drain wire	N/A
Duplex	N/A
Flame retardant according to IEC 60332-1-2	N/A
Flame retardant according to IEC 60332-3-21 (Cat A F/R)	N/A
Flame retardant according to IEC 60332-3-22 (Cat A)	N/A
Flame retardant according to IEC 60332-3-23 (Cat B)	N/A
Flame retardant according to IEC 60332-3-24 (Cat C)	N/A
Flame retardant according to IEC 60332-3-25 (Cat D)	N/A
Halogen free according to EN IEC 60754-1	N/A
Halogen free according to EN IEC 60754-2	N/A
Halogen free according to EN IEC 60754-3	N/A
IP Rating	IP20
Jacket Material	Polyvinyl chloride (PVC)
Longitudinal water blocking cable	N/A
Low smoke according to EN IEC 61034-2	N/A
Material	Polyvinyl chloride (PVC)
Material armouring	N/A
Material core insulation	N/A
Material outer sheath	N/A
Max. tensile strength during installation	N/A
Min. permitted bending radius, moving application with forced guidance	42
Min. permitted bending radius, moving application/free movement	42
Min. permitted bending radius, stationary application/permanent installation	42
Misc Attribute	6XV1850-2GH20
Nominal cross section conductor	N/A
Nominal voltage U	N/A
Number of Cores	4
Number of sheath layers	N/A
Number of stranding elements	2
NVP value	N/A
Oil resistant according to EN IEC 60811-404	N/A
Operating temperature (T-T)	-25 - 80°C
Outer diameter approximate	N/A
Package depth	35mm
Package height	180mm
Package width	259.9mm
Permitted cable outer temperature after assembling without vibration	-40 - 70°C
Permitted cable outer temperature during assembling/handling	-40 - 70°C
Plug and Play	Yes
Protective sheath	N/A
Quantity per pack	1 pc(s)
Radial water blocking cable	N/A
Reaction-to-fire according to EN 13501-6: Acidity	N/A
Reaction-to-fire according to EN 13501-6: Class	N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	N/A
Reaction-to-fire according to EN 13501-6: Smoke production	N/A
Rip cord colour according to BS 4737-3.30	N/A
Screen over stranding	N/A
Screen over stranding element	N/A
Segregation class according to EN 50174-2	N/A
Specification core insulation	N/A
Specification material outer sheath	N/A
Storage temperature (T-T)	-40 - 70°C
Stranding	N/A
Stranding element	Pairs
Suitable as computer data cable	N/A
Suitable as signalling cable	N/A
Suitable as telephone cable	N/A
Suitable for underground installation	false
Suitable for use as security alarm cable	N/A
UV resistant	N/A
Weight	83.9g
With rip cord	N/A
With rodent protection	N/A
