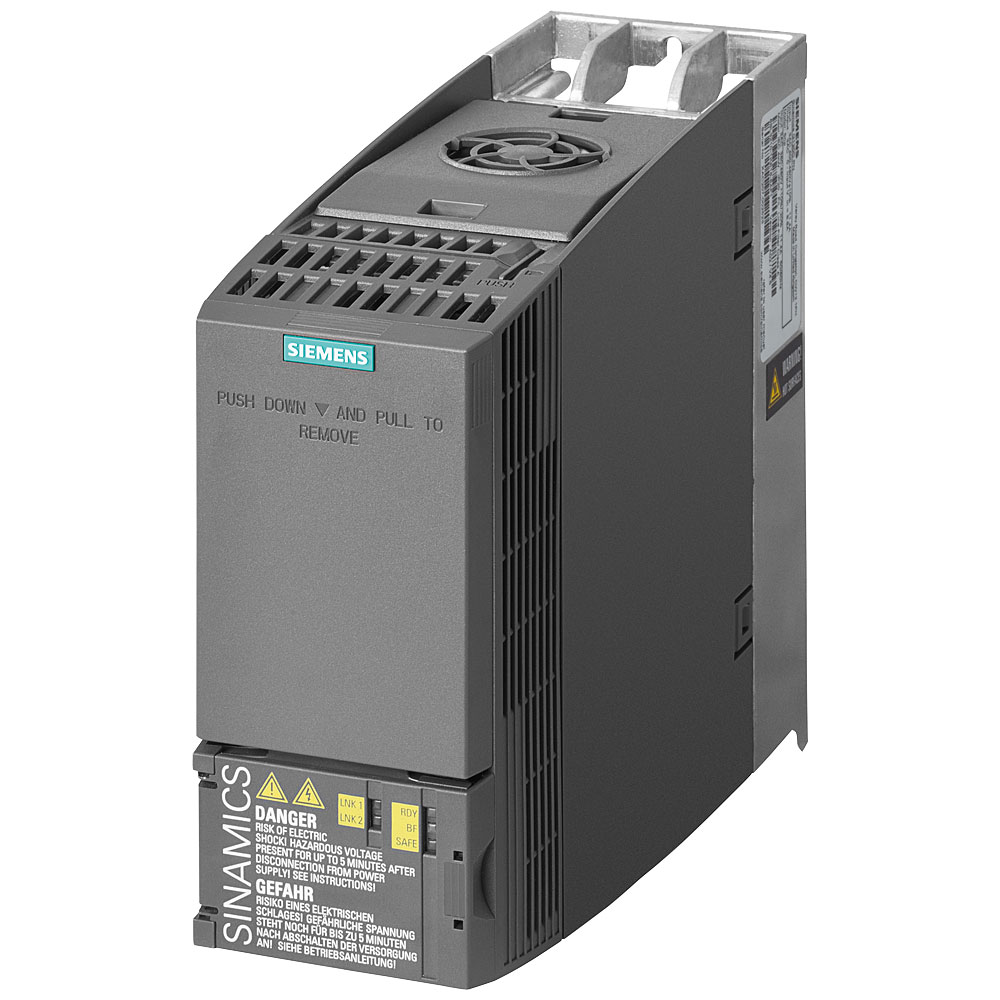

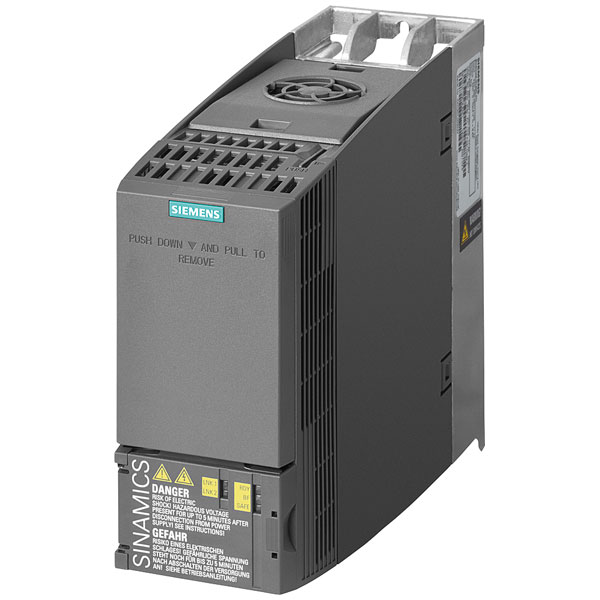

The Siemens frequency inverter 6SL3210-1KE17-5AF1 is a 2.2 kW device designed for input voltages ranging from 380 V to 480 V. It is used to regulate the speed and torque of electric motors in various industrial applications, improving energy efficiency and system performance. Typical uses include conveyor systems, pumps, and fans in manufacturing and processing facilities.
| 4-quadrant operation possible |
FALSE |
| Application in domestic- and commercial area permitted |
TRUE |
| Application in industrial area permitted |
TRUE |
| Degree of protection (IP) |
IP20 |
| Dim |
(W x H x D) 73 x 196 x 225 mm |
| Frequency Range |
0 Hz - 550 Hz |
| Height |
196mm |
| Integrated breaking resistance |
TRUE |
| IP Rating |
IP20 |
| Max. frequency |
550Hz |
| Max. output at linear load at rated output voltage |
2.2kW |
| Max. output at quadratic load at rated output voltage |
3kW |
| Max. output frequency |
550Hz |
| Max. output voltage |
480V |
| Min. frequency |
0Hz |
| Misc Attribute |
6SL3210-1KE17-5AF1 |
| Nominal Current |
7.5A |
| Nominal output current I2N |
7.5A |
| Number of Analogue Inputs |
1 |
| Number of Analogue Outputs |
1 |
| Number of Digital Inputs |
6 |
| Number of Digital Outputs |
2 |
| Number of HW-interfaces industrial Ethernet |
2 |
| Number of HW-interfaces other |
6 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
1 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
0 |
| Number of HW-interfaces serial TTY |
1 |
| Number of HW-interfaces USB |
1 |
| Number of interfaces PROFINET |
2 |
| Number of phases input |
3 |
| Number of phases output |
3 |
| Output rating (max.) |
2.2kW |
| Relative symmetric net frequency tolerance |
5% |
| Relative symmetric net voltage tolerance |
10% |
| Supporting protocol for ASI |
FALSE |
| Supporting protocol for AS-Interface Safety at Work |
FALSE |
| Supporting protocol for CAN |
FALSE |
| Supporting protocol for Data-Highway |
FALSE |
| Supporting protocol for DeviceNet |
FALSE |
| Supporting protocol for DeviceNet Safety |
FALSE |
| Supporting protocol for EtherNet/IP |
TRUE |
| Supporting protocol for Foundation Fieldbus |
FALSE |
| Supporting protocol for INTERBUS |
FALSE |
| Supporting protocol for INTERBUS-Safety |
FALSE |
| Supporting protocol for KNX |
FALSE |
| Supporting protocol for LON |
FALSE |
| Supporting protocol for Modbus |
FALSE |
| Supporting protocol for other bus systems |
TRUE |
| Supporting protocol for PROFIBUS |
FALSE |
| Supporting protocol for PROFINET CBA |
FALSE |
| Supporting protocol for PROFINET IO |
TRUE |
| Supporting protocol for PROFIsafe |
TRUE |
| Supporting protocol for SafetyBUS p |
FALSE |
| Supporting protocol for SERCOS |
FALSE |
| Supporting protocol for SUCONET |
FALSE |
| Supporting protocol for TCP/IP |
FALSE |
| Type |
Frequency inverter |
| Type of converter |
U converter |
| Width |
73mm |
| With optical interface |
FALSE |
| With PC connection |
TRUE |
