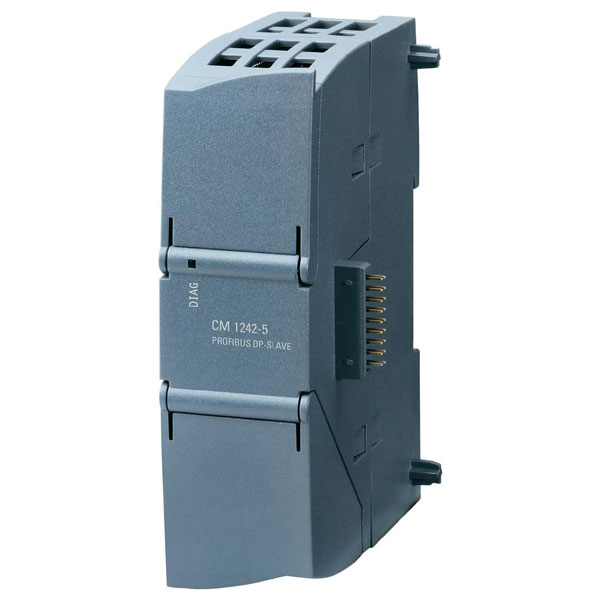

The Siemens 6GK7242-5DX30-0XE0 CM 1242-5 is a Profibus Slave DIN Rail Communication Module. It allows the connection of programming devices and operator panels with a PROFIBUS interface. The modules are intended for use in factory automation, particularly for mechanical engineering.
With the CM 1242-5, low-cost distributed automation solutions can be implemented in simple cases, or even complete plant automation systems. It can be used in all sectors of discrete automation. These include Automotive, Pharmaceuticals, Semiconductors and Food processing industry.
- Dimensions, width: 30mm
- Manufacturer part No.: 6GK7242-5DX30-0XE0
- SPS component (category): SPS add-on module
- Type (manufacturer type): CM 1242-5 Profibus Slave
- SPS component (category): SPS add-on module
- DP Slave
- Weight: 0.170kg
- External power supply: 24V DC
- Electrical connections: 1
- Type: CM 1242-5 Profibus Slave
- Manufacturer's part: Siemens 6GK7242-5DX30-0XE0
| Supporting protocol for ASI |
false |
| Supporting protocol for CAN |
false |
| Type |
Add-on module |
| Appendant operation agent (Ex ia) |
false |
| Appendant operation agent (Ex ib) |
false |
| Certified for UL hazardous location class I |
N/A |
| Certified for UL hazardous location class II |
N/A |
| Certified for UL hazardous location class III |
N/A |
| Certified for UL hazardous location division 1 |
N/A |
| Certified for UL hazardous location division 2 |
N/A |
| Certified for UL hazardous location group A (acetylene) |
N/A |
| Certified for UL hazardous location group B (hydrogen) |
N/A |
| Certified for UL hazardous location group C (ethylene) |
N/A |
| Certified for UL hazardous location group D (propane) |
N/A |
| Certified for UL hazardous location group E (metal dusts) |
N/A |
| Certified for UL hazardous location group F (carbonaceous dusts) |
N/A |
| Certified for UL hazardous location group G (non-conductive dusts) |
N/A |
| Depth |
75mm |
| Display |
No |
| Explosion safety category for dust |
N/A |
| Explosion safety category for gas |
N/A |
| Height |
100mm |
| IO link master |
false |
| IP Rating |
IP20 |
| Mobile communication standard 2G (GSM) |
N/A |
| Mobile communication standard 3G (UMTS) |
N/A |
| Mobile communication standard GPRS |
N/A |
| Number of HW-interfaces CAN |
N/A |
| Number of HW-interfaces industrial Ethernet |
0 |
| Number of HW-interfaces other |
0 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
0 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of HW-interfaces wireless |
0 |
| Number of interfaces PROFINET |
0 |
| Operating Voltage |
24V DCV |
| Performance level according to EN ISO 13849-1 |
N/A |
| Power Consumption |
N/A |
| Radio standard Bluetooth |
false |
| Radio standard WLAN 802.11 |
false |
| Redundancy |
false |
| SIL according to IEC 61508 |
N/A |
| Suitable for safety functions |
false |
| Supporting protocol for AS-Interface Safety at Work |
false |
| Supporting protocol for Data-Highway |
false |
| Supporting protocol for DeviceNet |
false |
| Supporting protocol for DeviceNet Safety |
false |
| Supporting protocol for EtherCAT |
N/A |
| Supporting protocol for EtherNet/IP |
false |
| Supporting protocol for Foundation Fieldbus |
false |
| Supporting protocol for INTERBUS |
false |
| Supporting protocol for INTERBUS-Safety |
false |
| Supporting protocol for KNX |
false |
| Supporting protocol for LON |
false |
| Supporting protocol for Modbus |
false |
| Supporting protocol for other bus systems |
true |
| Supporting protocol for PROFIBUS |
true |
| Supporting protocol for PROFINET CBA |
false |
| Supporting protocol for PROFINET IO |
false |
| Supporting protocol for PROFIsafe |
false |
| Supporting protocol for SafetyBUS p |
false |
| Supporting protocol for SERCOS |
false |
| Supporting protocol for SUCONET |
false |
| Supporting protocol for TCP/IP |
false |
| Transmission rate |
N/A |
| Type of data transmission |
N/A |
| Weight |
STRONG0.170kg/STRONG |
| Width |
30mm |
| With optical interface |
false |
| With potential separation |
false |
