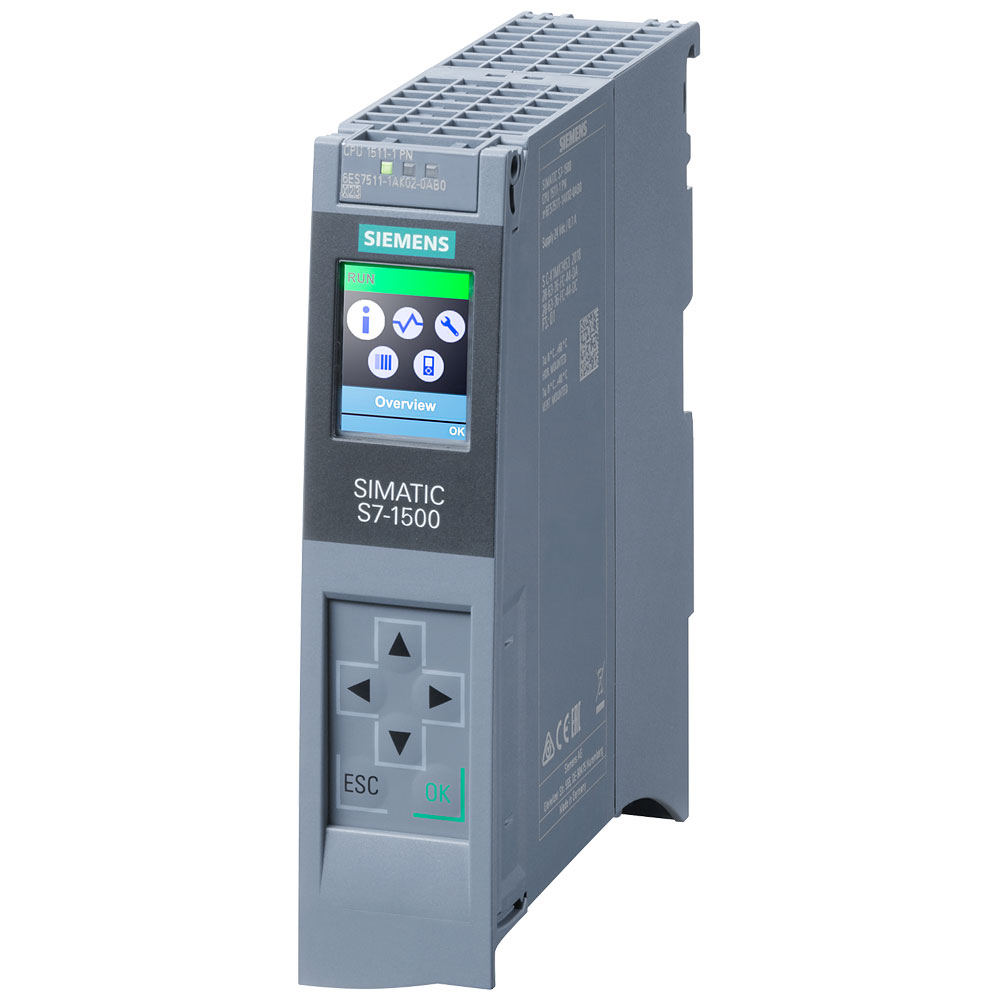

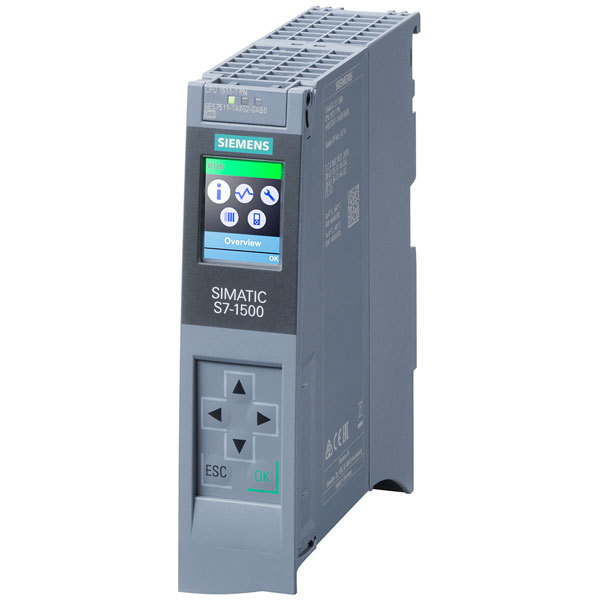

Siemens manufactures the 6ES7511-1AK02-0AB0 PLC CPU, known for its efficient processing capabilities and reliable performance in industrial automation. This compact programmable logic controller features advanced communication options and robust construction for demanding environments. It is typically used in applications like machinery control, process automation, and building services.
| Type |
PLC CPU |
| Number of Outputs |
0 |
| Additional program memory possible |
FALSE |
| Appendant operation agent (Ex ia) |
FALSE |
| Appendant operation agent (Ex ib) |
FALSE |
| Depth |
129mm |
| Dim |
(L x W x H) 129 x 35 x 147 mm |
| Display |
Yes |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
ATEX gas-ex-protection, Cat. 3G |
| Fitting type (details) |
Carry rail mounting |
| Front built-in possible |
FALSE |
| Height |
147mm |
| IO link master |
FALSE |
| Length |
129mm |
| Max. operating voltage |
28.8V DC |
| Memory Size |
1150kB |
| Min. operating voltage |
19.2V DC |
| Misc Attribute 1 |
6ES7511-1AK02-0AB0 |
| Misc Attribute 2 |
modular |
| Mobile communications standard 3G (UMTS) |
FALSE |
| Model |
Modular |
| Number of Analogue Inputs |
0 |
| Number of Analogue Outputs |
0 |
| Number of Digital Inputs |
0 |
| Number of Digital Outputs |
0 |
| Number of HW-interfaces industrial Ethernet |
1 |
| Number of HW-interfaces other |
0 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
0 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
0 |
| Number of HW-interfaces USB |
0 |
| Number of HW-interfaces wireless |
0 |
| Number of interfaces PROFINET |
1 |
| Operating Voltage |
19.2 - 28.8 V DC |
| Processing time (1K, binary operation) |
0.06ms |
| Rack-assembly possible |
FALSE |
| Radio standard Bluetooth |
FALSE |
| Radio standard GPRS |
FALSE |
| Radio standard GSM |
FALSE |
| Radio standard WLAN 802.11 |
FALSE |
| Redundancy |
FALSE |
| Suitable for rail mounting |
TRUE |
| Suitable for safety functions |
FALSE |
| Supported protocols |
MODBUS;PROFINET IO;TCP/IP |
| Supporting protocol for ASI |
FALSE |
| Supporting protocol for AS-Interface Safety at Work |
FALSE |
| Supporting protocol for CAN |
FALSE |
| Supporting protocol for Data-Highway |
FALSE |
| Supporting protocol for DeviceNet |
FALSE |
| Supporting protocol for DeviceNet Safety |
FALSE |
| Supporting protocol for EtherNet/IP |
FALSE |
| Supporting protocol for Foundation Fieldbus |
FALSE |
| Supporting protocol for INTERBUS |
FALSE |
| Supporting protocol for INTERBUS-Safety |
FALSE |
| Supporting protocol for KNX |
FALSE |
| Supporting protocol for LON |
FALSE |
| Supporting protocol for Modbus |
TRUE |
| Supporting protocol for other bus systems |
FALSE |
| Supporting protocol for PROFIBUS |
FALSE |
| Supporting protocol for PROFINET CBA |
FALSE |
| Supporting protocol for PROFINET IO |
TRUE |
| Supporting protocol for PROFIsafe |
FALSE |
| Supporting protocol for SafetyBUS p |
FALSE |
| Supporting protocol for SERCOS |
FALSE |
| Supporting protocol for SUCONET |
FALSE |
| Supporting protocol for TCP/IP |
TRUE |
| System accessory |
TRUE |
| Type of memory |
Other |
| Voltage type (supply voltage) |
DC |
| Wall mounting/direct mounting |
FALSE |
| Width |
35mm |
| With display |
TRUE |
| With optical interface |
FALSE |
