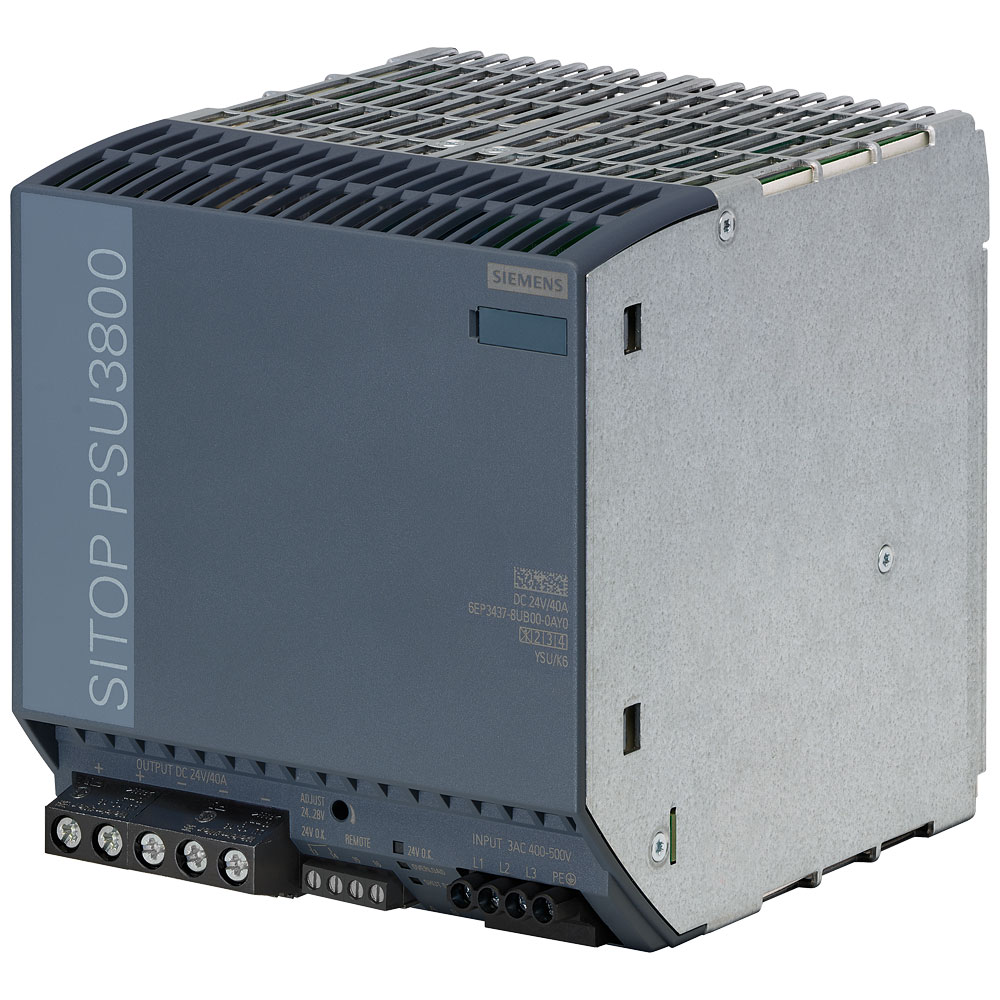

The Siemens 6EP3437-8UB00-0AY0 rail mounted PSU (DIN) delivers a reliable 24 V DC output at 40 A, designed for industrial applications. Featuring compact DIN rail mounting, it provides efficient power conversion and ease of installation. Ideal for use in automation systems and control panels, it ensures consistent power supply in demanding environments.
| Type |
Rail mounted PSU (DIN) |
| Output Voltage |
24V DC |
| Output Current |
40A |
| 1st secondary output voltage |
24 - 24V |
| 2nd secondary output voltage |
N/A |
| 3rd secondary output voltage |
N/A |
| Built-in height |
225mm |
| Built-in width |
135mm |
| Connection |
Screw terminal |
| Country of origin |
Romania |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
150mm |
| Direct mounting possible |
false |
| Height |
145mm |
| Input voltage (max.) |
500V AC |
| Max. output current |
40A |
| Max. output current 1 |
40A |
| Max. output current 2 |
N/A |
| Max. output current 3 |
N/A |
| Misc Attribute |
6EP3437-8UB00-0AY0 |
| Nominal Input Voltage |
400 V/AC |
| Nominal value output current 1 |
40A |
| Nominal value output current 2 |
N/A |
| Nominal value output current 3 |
N/A |
| Nominal value output voltage 1 |
24V |
| Nominal value output voltage 2 |
N/A |
| Nominal value output voltage 3 |
N/A |
| Output voltage stabilized |
true |
| Package depth |
1480mm |
| Package height |
2120mm |
| Package width |
1960mm |
| Performance level according to EN ISO 13849-1 |
N/A |
| Phases |
3 |
| Power Consumption |
N/A |
| Power Output |
960W |
| Power Supply Type |
Indoor |
| Product colour |
Multicolour |
| Quick installation guide |
Yes |
| Rated supply voltage AC 50 Hz |
400 - 400V |
| Rated supply voltage AC 60 Hz |
500 - 500V |
| Rated supply voltage DC |
N/A |
| Secondary voltage adjustable |
true |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
N/A |
| Stabilized |
true |
| Suitable for distribution board |
true |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
N/A |
| Type of electric connection |
N/A |
| Voltage type (supply voltage) |
AC |
| Wall mounting possible |
false |
| Weight |
3.3kg |
| Width |
135mm |
| Width in number of modular spacings |
N/A |
