Siemens 6EP3436-7SB00-3AX0 sitop psu6200 24V 20A 480W rail-mounted psu

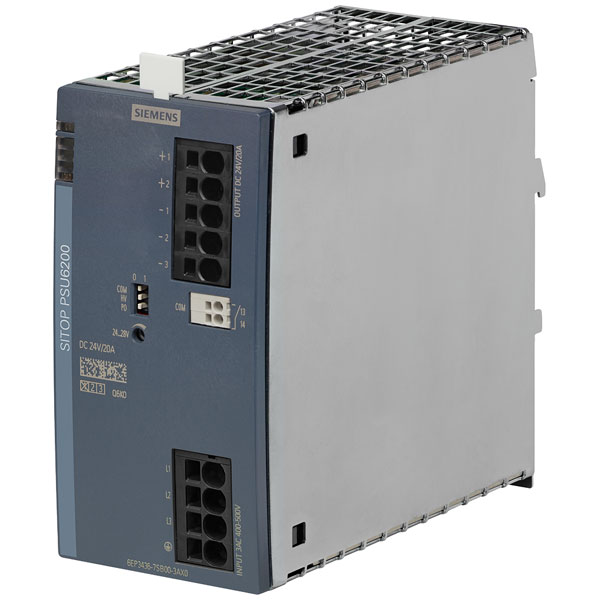

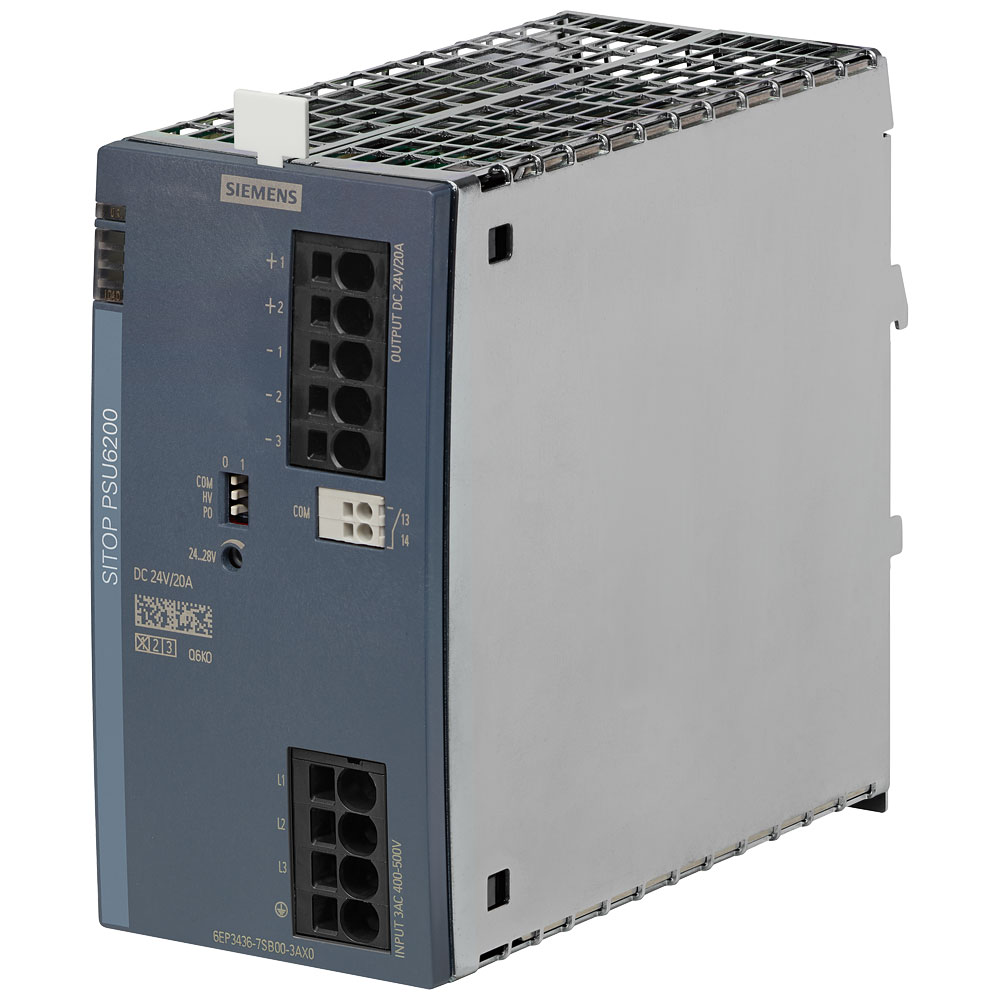

Image Representative of Range

Siemens 6EP3436-7SB00-3AX0 sitop psu6200 24V 20A 480W rail-mounted psu

Siemens
Order Code:

07-0682

Brand: Siemens MPN: 6EP34367SB003AX0 EAN-13: 4025515155348
Qty Unit Price (Ex VAT)
1+ £240.81
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

Siemens 6EP3436-7SB00-3AX0 is a rail mounted PSU with a single output offering 20 A and 480 W. This industrial power supply unit is ideal for integration into DIN rail systems for efficient and reliable power distribution. Typical applications include automation systems, machinery control panels, and other industrial installations.
Type Rail mounted PSU (DIN)
Output Voltage TRUE
Output Current 20A
Number of Outputs 1
Power Rating 480W
1st secondary output voltage 24 - 24V
2nd secondary output voltage N/A
3rd secondary output voltage N/A
Built-in height 225mm
Built-in width 70mm
Connection Push-in connector
Degree of protection (IP) IP20
Degree of protection (NEMA) N/A
Depth 155mm
Dim (L x W x H) 155 x 45 x 135 mm
Direct mounting possible FALSE
Height 135mm
Input voltage (max.) 600V
IP Rating IP20
Length 155mm
Max. output current 20A
Max. output current 1 20A
Max. output current 2 N/A
Max. output current 3 N/A
Max. temperature +70°C
Min. input voltage 450V
Min. temperature -40°C
Misc Attribute 6EP3436-7SB00-3AX0
Nominal value output current 1 20A
Nominal value output current 2 N/A
Nominal value output current 3 N/A
Nominal value output voltage 1 24V
Nominal value output voltage 2 N/A
Nominal value output voltage 3 N/A
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output voltage stabilized true
Performance level according to EN ISO 13849-1 N/A
Phases 3
Power Consumption N/A
Power Output 480W
Rated supply voltage AC 50 Hz N/A
Rated supply voltage AC 60 Hz N/A
Rated supply voltage DC N/A
Secondary voltage adjustable TRUE
Short-circuit-proof TRUE
SIL according to IEC 61508 N/A
Stabilized TRUE
Suitable for distribution board TRUE
Suitable for rail mounting TRUE
Suitable for safety functions N/A
Type of electric connection Spring clamp connection
Voltage type (supply voltage) AC/DC
Wall mounting possible FALSE
Width 70mm
Width in number of modular spacings N/A
