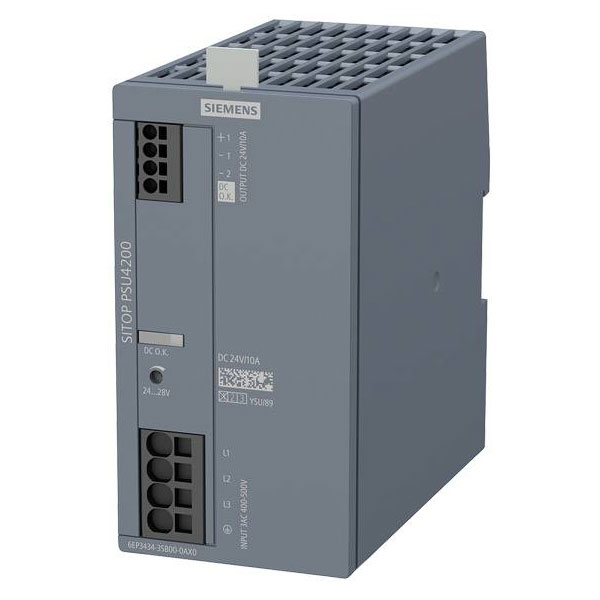

The Siemens 6EP3434-3SB00-0AX0 is a rail mounted PSU designed for industrial applications, offering reliable power supply in a compact DIN rail format. It features robust build quality suitable for harsh environments and ensures efficient operation with high-performance output. Typical applications include use in automation systems, control panels, and machinery where consistent power delivery is critical.
| Type |
Rail mounted PSU (DIN) |
| Power Rating |
240W |
| 1st secondary output voltage |
24 - 24V |
| 2nd secondary output voltage |
N/A |
| 3rd secondary output voltage |
N/A |
| Built-in height |
225mm |
| Built-in width |
70mm |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
125mm |
| Direct mounting possible |
true |
| Height |
135mm |
| Max. output current 1 |
10A |
| Max. output current 2 |
N/A |
| Max. output current 3 |
N/A |
| Misc Attribute |
6EP3434-3SB00-0AX0 |
| Nominal value output current 1 |
10A |
| Nominal value output current 2 |
N/A |
| Nominal value output current 3 |
N/A |
| Nominal value output voltage 1 |
24V |
| Nominal value output voltage 2 |
N/A |
| Nominal value output voltage 3 |
N/A |
| Output voltage stabilized |
true |
| Performance level according to EN ISO 13849-1 |
N/A |
| Power Consumption |
N/A |
| Power Output |
240W |
| Rated supply voltage AC 50 Hz |
500 - 500V |
| Rated supply voltage AC 60 Hz |
400 - 400V |
| Rated supply voltage DC |
N/A |
| Secondary voltage adjustable |
true |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
N/A |
| Stabilized |
true |
| Suitable for distribution board |
true |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
N/A |
| Type of electric connection |
N/A |
| Voltage type (supply voltage) |
AC |
| Wall mounting possible |
true |
| Width |
70 |
| Width in number of modular spacings |
N/A |
