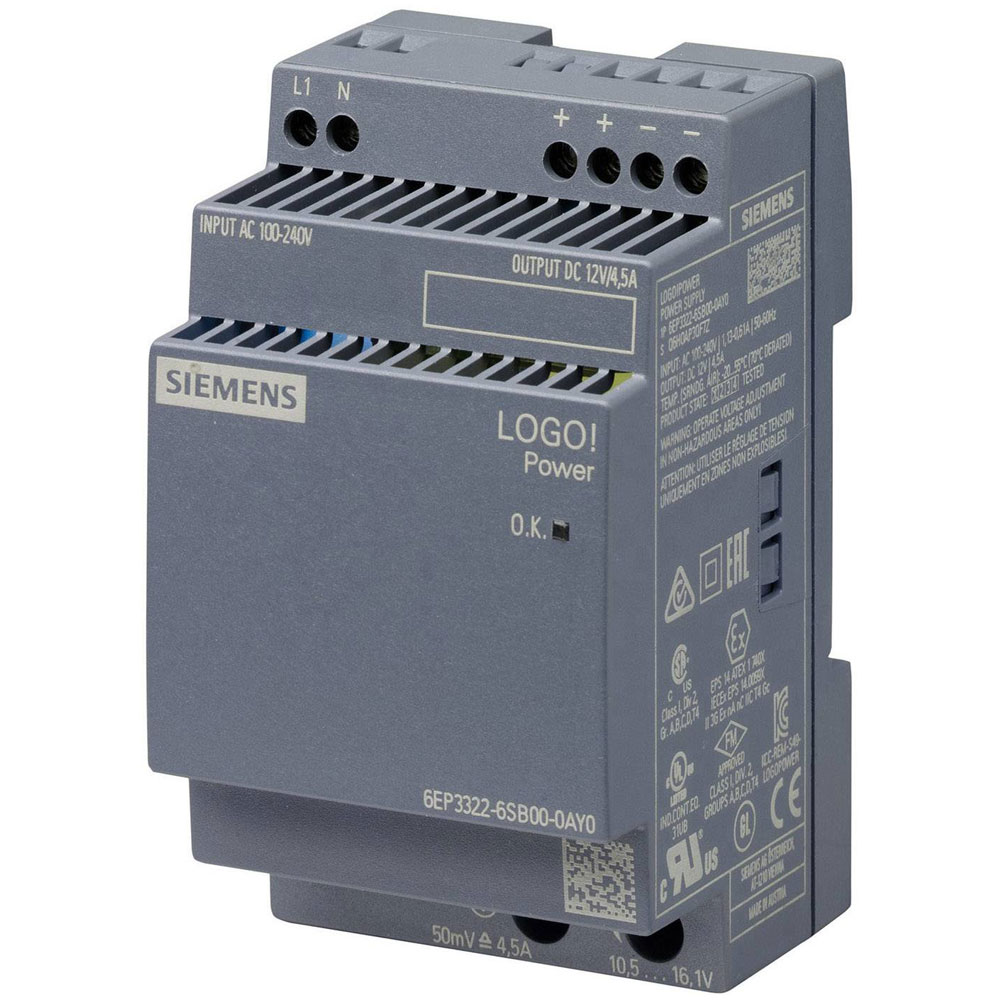

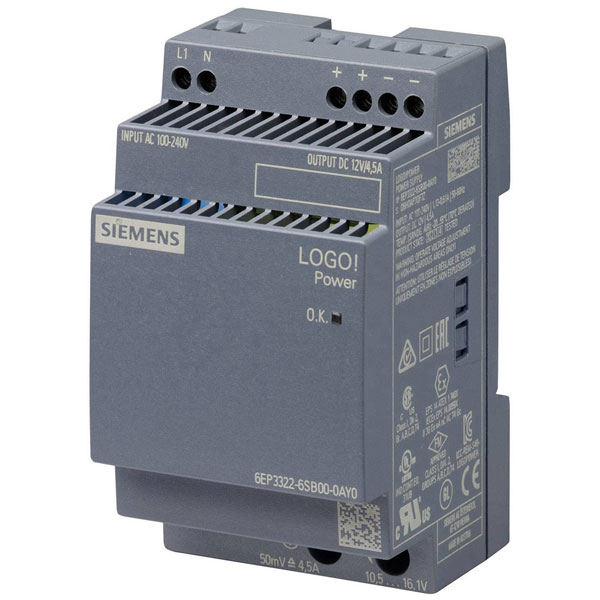

Siemens 6EP33226SB000AY0 LOGO!Power PLC supply 12V/4.5A AC 100-240V

The Siemens 6EP3322-6SB00-0AY0 is a PLC power supply unit designed to deliver reliable and efficient power for programmable logic controllers. With its robust performance, it offers overvoltage protection and high efficiency for industrial applications. This power supply is suited for automation systems in manufacturing and process control environments.

Type	PLC power supply unit
Output Voltage	12V DC
Number of Outputs	1
Power Rating	54W
1st secondary output voltage	12 - 12V
2nd secondary output voltage	N/A
3rd secondary output voltage	N/A
Built-in height	130mm
Built-in width	54mm
Connection	Screw terminal
Country of origin	Austria
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	53mm
Dim	(L x W x H) 53 x 54 x 90 mm
Direct mounting possible	true
Height	90mm
IP Rating	IP20
Length	53mm
Max. operating voltage	240V AC
Max. output current	4.5A
Max. output current 1	4.5A
Max. output current 2	N/A
Max. output current 3	N/A
Maximum Input Volage	240V AC
Maximum Temperature	+70°C
Min. operating voltage	100V AC
Min. temperature	-25°C
Minimum Input Volage	100V AC
Misc Attribute	6EP3322-6SB00-0AY0
Nominal value output current 1	4.5A
Nominal value output current 2	N/A
Nominal value output current 3	N/A
Nominal value output voltage 1	12V
Nominal value output voltage 2	N/A
Nominal value output voltage 3	N/A
Operating Voltage	100 - 240 V AC
Output voltage stabilized	true
Package depth	73mm
Package height	96mm
Package width	67mm
Performance level according to EN ISO 13849-1	N/A
Phases	1
Power Consumption	N/A
Power Output	54W
Power Supply Type	Indoor
Product colour	Multicolour
Quick installation guide	Yes
Rated supply voltage AC 50 Hz	240 - 240V
Rated supply voltage AC 60 Hz	100 - 100V
Rated supply voltage DC	N/A
Secondary voltage adjustable	true
Short-circuit-proof	true
SIL according to IEC 61508	N/A
Stabilized	true
Suitable for distribution board	true
Suitable for rail mounting	true
Suitable for safety functions	N/A
Type of electric connection	N/A
Voltage type (supply voltage)	AC/DC
Wall mounting possible	true
Weight	250g
Width	54mm
Width in number of modular spacings	N/A
