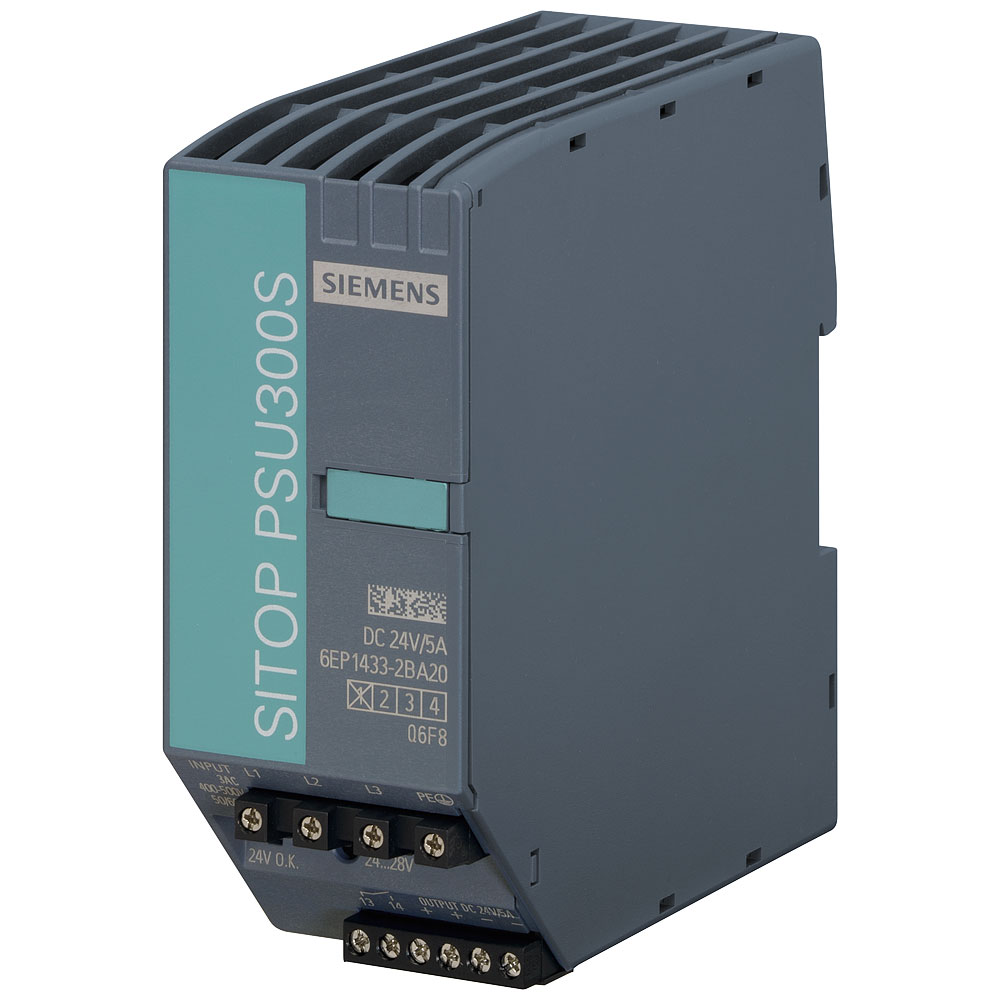

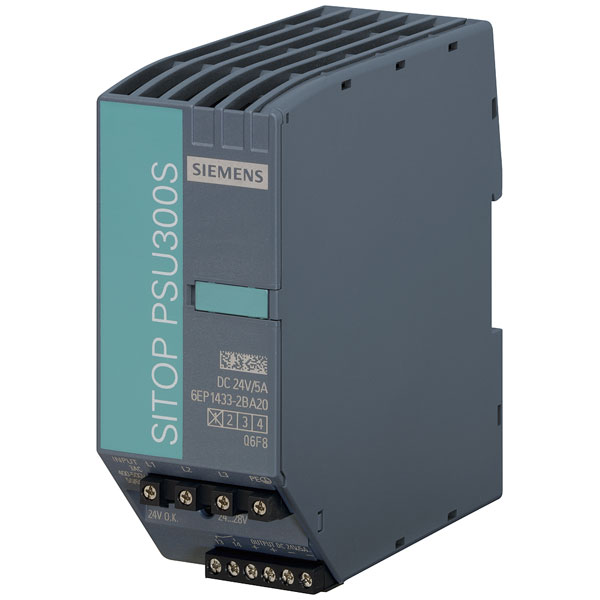

The Siemens 6EP1433-2BA20 is a rail-mounted power supply unit providing 24 V DC at 5 A. This DIN rail PSU is ideal for industrial power applications, offering robust and reliable performance. It is typically used in automation and control systems where consistent power delivery is essential.
| Type |
Rail mounted PSU (DIN) |
| Output Voltage |
24V DC |
| Output Current |
5A |
| 1st secondary output voltage |
24 - 24V |
| 2nd secondary output voltage |
N/A |
| 3rd secondary output voltage |
N/A |
| Built-in height |
225mm |
| Built-in width |
50mm |
| Connection |
Screw terminal |
| Country of origin |
Austria |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
120mm |
| Direct mounting possible |
false |
| Height |
125mm |
| Input voltage (max.) |
500V AC |
| Max. output current |
5A |
| Max. output current 1 |
5A |
| Max. output current 2 |
N/A |
| Max. output current 3 |
N/A |
| Misc Attribute |
6EP1433-2BA20 |
| Nominal Input Voltage |
400 V/AC |
| Nominal value output current 1 |
5A |
| Nominal value output current 2 |
N/A |
| Nominal value output current 3 |
N/A |
| Nominal value output voltage 1 |
24V |
| Nominal value output voltage 2 |
N/A |
| Nominal value output voltage 3 |
N/A |
| Output voltage stabilized |
true |
| Package depth |
55mm |
| Package height |
135mm |
| Package width |
130mm |
| Performance level according to EN ISO 13849-1 |
N/A |
| Phases |
3 |
| Power Consumption |
N/A |
| Power Output |
120W |
| Power Supply Type |
Indoor |
| Product colour |
Multicolour |
| Quick installation guide |
Yes |
| Rated supply voltage AC 50 Hz |
400 - 400V |
| Rated supply voltage AC 60 Hz |
500 - 500V |
| Rated supply voltage DC |
N/A |
| Secondary voltage adjustable |
true |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
N/A |
| Stabilized |
true |
| Suitable for distribution board |
true |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
N/A |
| Type of electric connection |
N/A |
| Voltage type (supply voltage) |
AC |
| Wall mounting possible |
false |
| Weight |
500g |
| Width |
50mm |
| Width in number of modular spacings |
N/A |
