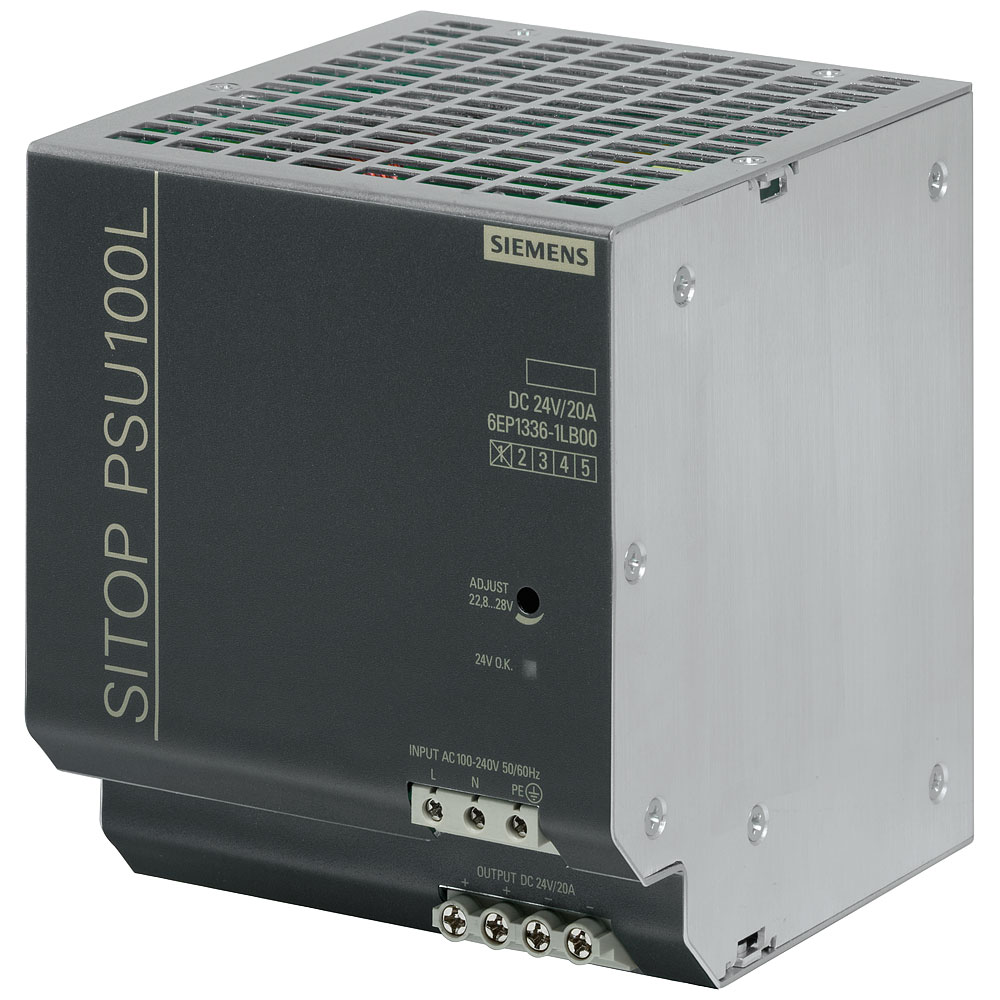

The Siemens 6EP1336-1LB00 is a DIN rail mounted power supply unit capable of delivering 20 A output, designed for industrial applications. Its robust construction and reliable performance make it ideal for use in automation, control systems, and building technology. This single-piece PSU ensures efficient power conversion and distribution in demanding environments.
| Type |
Rail mounted PSU (DIN) |
| Output Voltage |
TRUE |
| Output Current |
20A |
| Power Rating |
480W |
| 1st secondary output voltage |
24 - 24V |
| 2nd secondary output voltage |
N/A |
| 3rd secondary output voltage |
N/A |
| Built-in height |
225mm |
| Built-in width |
110mm |
| Connection |
Screws |
| Country of origin |
China |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
125mm |
| Dim |
(L x W x H) 125 x 110 x 125 mm |
| Direct mounting possible |
FALSE |
| Height |
125mm |
| IP Rating |
IP20 |
| Length |
125mm |
| Max. output current |
20A |
| Max. output current 1 |
20A |
| Max. output current 2 |
N/A |
| Max. output current 3 |
N/A |
| Max. temperature |
+70°C |
| Min. temperature |
-25°C |
| Misc Attribute |
6EP1336-1LB00 |
| Nominal value output current 1 |
20A |
| Nominal value output current 2 |
N/A |
| Nominal value output current 3 |
N/A |
| Nominal value output voltage 1 |
24V |
| Nominal value output voltage 2 |
N/A |
| Nominal value output voltage 3 |
N/A |
| Output voltage stabilized |
true |
| Package depth |
1430mm |
| Package height |
1900mm |
| Package width |
1630mm |
| Performance level according to EN ISO 13849-1 |
N/A |
| Phases |
1 |
| Power Consumption |
N/A |
| Power Output |
480W |
| Power Supply Type |
Indoor |
| Product colour |
Multicolour |
| Quick installation guide |
Yes |
| Rated supply voltage AC 50 Hz |
240 - 240V |
| Rated supply voltage AC 60 Hz |
100 - 100V |
| Rated supply voltage DC |
100 - 240V |
| Secondary voltage adjustable |
TRUE |
| Short-circuit-proof |
TRUE |
| SIL according to IEC 61508 |
N/A |
| Stabilized |
TRUE |
| Suitable for distribution board |
TRUE |
| Suitable for rail mounting |
TRUE |
| Suitable for safety functions |
N/A |
| Type of electric connection |
Screw connection |
| Voltage type (supply voltage) |
AC/DC |
| Wall mounting possible |
FALSE |
| Width |
110mm |
| Width in number of modular spacings |
N/A |
