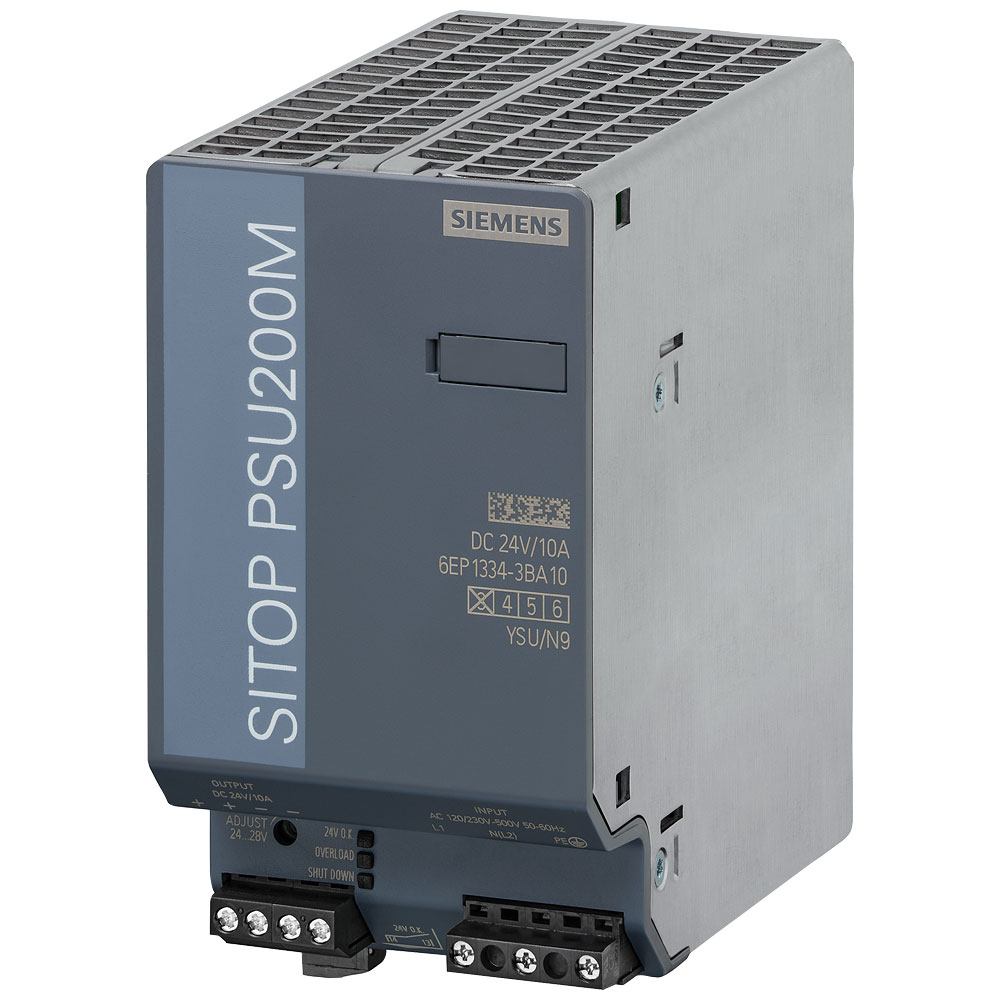

The Siemens 6EP1334-3BA10-8AB0 is a rail-mounted PSU designed for industrial applications, providing a reliable 24 V DC output with a current rating of 10 A. This DIN rail power supply module is ideal for automation systems, control cabinets, and machine installations where stable and efficient power is essential. Its robust construction and compact design make it suitable for integration in a variety of environments.
| Type |
Rail mounted PSU (DIN) |
| 2nd secondary output voltage |
N/A |
| 3rd secondary output voltage |
N/A |
| Built-in height |
225mm |
| Built-in width |
70mm |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
121mm |
| Height |
125mm |
| Max. output current 2 |
N/A |
| Max. output current 3 |
N/A |
| Maximum input voltage [AC] |
500V |
| Minimum Input Voltage [AC] |
120V |
| Misc Attribute |
6EP1334-3BA10-8AB0A |
| Nominal Input Voltage |
230 /ACV |
| Nominal value output current 2 |
N/A |
| Nominal value output current 3 |
N/A |
| Nominal value output voltage 1 |
24V |
| Nominal value output voltage 1 [DC] |
24V |
| Nominal value output voltage 2 |
N/A |
| Nominal value output voltage 3 |
N/A |
| Package depth |
100mm |
| Package height |
170mm |
| Package width |
160mm |
| Performance level according to EN ISO 13849-1 |
N/A |
| Phases |
2 |
| Power Consumption |
N/A |
| Power Output |
240W |
| Power Supply Type |
Indoor |
| Product colour |
Multicolour |
| Quick installation guide |
Yes |
| Rated supply voltage AC 50 Hz |
230 - 230V |
| Rated supply voltage AC 60 Hz |
120 - 120V |
| Rated supply voltage DC |
N/A |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
N/A |
| Suitable for distribution board |
true |
| Suitable for safety functions |
N/A |
| Suitable for wall mounting |
rail |
| Voltage type (supply voltage) |
AC |
| Weight |
800g |
| Width |
70mm |
| Width in number of modular spacings |
N/A |
