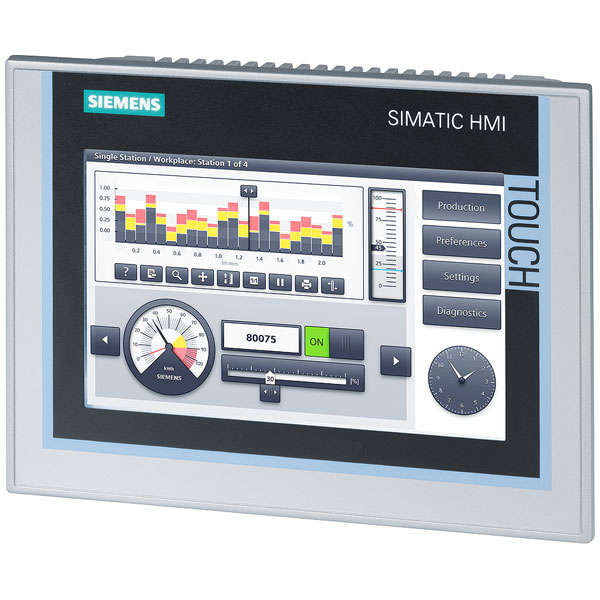

Siemens 6AV21240GC010AX0 SINAMICS G120C PLC display with screening plate

The Siemens 6AV2124-0GC01-0AX0 PLC display is a versatile component from the SIMATIC series, designed for efficient HMI integration. It features a user-friendly interface ideal for automation and control tasks in industrial environments. Common applications include machinery operation and process monitoring.

Type	PLC display
Supply voltage DC	19.2 - 28.8V
Additional software components, loadable	TRUE
Built-in depth	63mm
Certified for UL hazardous location class I	N/A
Certified for UL hazardous location class II	N/A
Certified for UL hazardous location class III	N/A
Certified for UL hazardous location division 1	N/A
Certified for UL hazardous location division 2	N/A
Certified for UL hazardous location group A (acetylene)	N/A
Certified for UL hazardous location group B (hydrogen)	N/A
Certified for UL hazardous location group C (ethylene)	N/A
Certified for UL hazardous location group D (propane)	N/A
Certified for UL hazardous location group E (metal dusts)	N/A
Certified for UL hazardous location group F (carbonaceous dusts)	N/A
Certified for UL hazardous location group G (non-conductive dusts)	N/A
Colour display	TRUE
Current Consumption	500mA
Degree of protection (IP), front side	IP65
Degree of protection (NEMA), front side	N/A
Display	Yes (built-in)
Height of the front	158mm
IO link master	FALSE
IP Rating	IP65 (when built-in), Back IP20
Misc Attribute	6AV2124-0GC01-0AX0
Mobile communication standard 2G (GSM)	false
Mobile communication standard 3G (UMTS)	false
Mobile communication standard GPRS	false
Mobile communications standard 3G (UMTS)	FALSE
Number of buttons with LED	0
Number of colours of the display	16777216
Number of function buttons, programmable	0
Number of grey-scales/blue-scales of display	0
Number of HW-interfaces industrial Ethernet	1
Number of HW-interfaces other	0
Number of HW-interfaces parallel	0
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	1
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	2
Number of HW-interfaces wireless	0
Number of interfaces PROFINET	1
Number of online languages	32
Number of password levels	50
Number of pixels, horizontal	800
Number of pixels, vertical	480
Number of system buttons	0
Operating Temperature	0 - 50°C
Power Consumption	N/A
Process default value (input) possible	TRUE
Process value representation (output) possible	TRUE
Radio standard Bluetooth	FALSE
Radio standard GPRS	FALSE
Radio standard GSM	FALSE
Radio standard WLAN 802.11	FALSE
Screen diagonal	7mm
Series	Siemens-HMI
Suitable for rail mounting	FALSE
Suitable for safety functions	FALSE
Supply voltage AC 50 Hz	N/A
Supply voltage AC 60 Hz	N/A
Supporting protocol for ASI	FALSE
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for CAN	FALSE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherCAT	N/A
Supporting protocol for EtherNet/IP	TRUE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Supporting protocol for KNX	FALSE
Supporting protocol for LON	FALSE
Supporting protocol for Modbus	TRUE
Supporting protocol for other bus systems	TRUE
Supporting protocol for PROFIBUS	TRUE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	TRUE
Supporting protocol for PROFIsafe	FALSE
Supporting protocol for SafetyBUS p	FALSE
Supporting protocol for SERCOS	FALSE
Supporting protocol for SUCONET	FALSE
Supporting protocol for TCP/IP	TRUE
Touch technology	N/A
Type of display	TFT
Usable project memory/user memory	12000kB
Voltage type (supply voltage)	DC
Wall mounting/direct mounting	FALSE
Weight	1.56
Width	214mm
Width of the front	214mm
With alpha numeric keyboard	TRUE
With message indication	TRUE
With message system (incl. buffer and confirmation)	TRUE
With numeric keyboard	TRUE
With printer output	TRUE
With recipes	TRUE
With SW interfaces	FALSE
