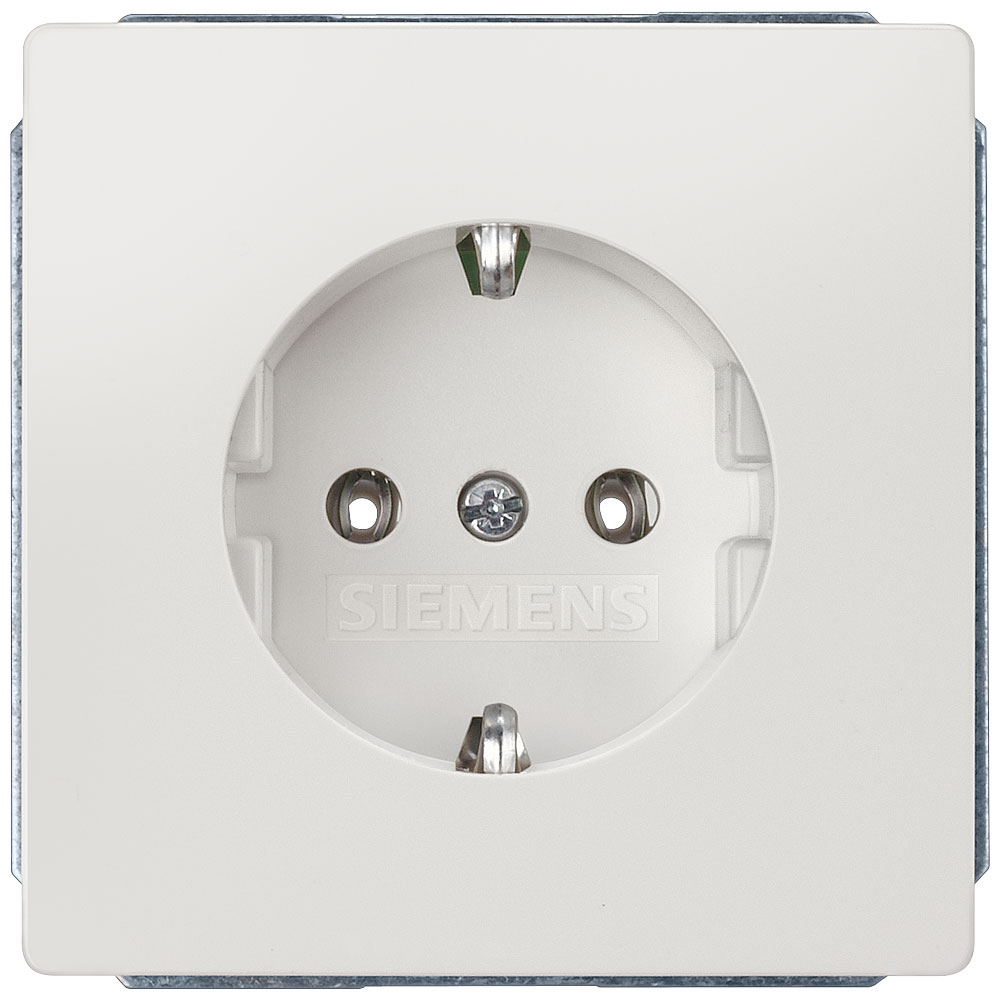

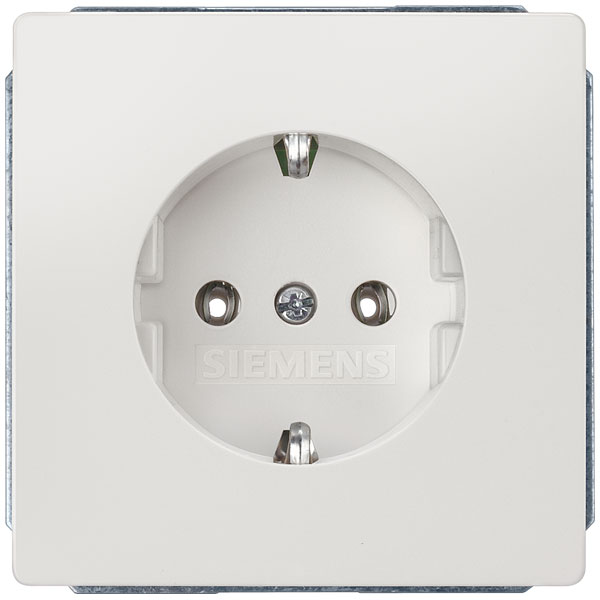

Siemens offers the 5UB18530KK, a white socket outlet with protective contact, as part of its switch product range. This component features overvoltage and fault current protection, serving as an earth leakage switch. It is typically used in residential and commercial settings where safety and reliable power distribution are essential.
| Type |
Switch product range |
| Size/ Dimensions |
(L x W) 68 mm x 68 mm |
| IP Rating |
IP20 |
| Colour |
White |
| Connection Type |
Push-in clamp |
| Device depth |
45mm |
| Device height |
70mm |
| Device width |
70mm |
| Eject-mechanism |
FALSE |
| Fault current protection |
FALSE |
| Halogen free |
TRUE |
| Impact Strength |
Other |
| Insulated mounting |
FALSE |
| Label space/information surface |
FALSE |
| Length |
68mm |
| Lockable |
FALSE |
| Material quality |
Thermoplastic |
| Min. depth of built-in installation box |
45 |
| Model |
Other |
| Mounting Method |
Flush mounted (plaster) |
| Nominal Current |
16A |
| Nominal Voltage |
250V |
| Number of active contacts (flat) |
2 |
| Number of Phases |
2 |
| Number of socket outlets switchable |
0 |
| Number of units |
1 |
| Overvoltage protection |
FALSE |
| Protective contact |
TRUE |
| RAL-number (similar) |
9010 |
| Rotated central insert |
FALSE |
| Special power supply |
No special power supply |
| Suitable for degree of protection (IP) |
IP20 |
| Surface finishing |
Glossy |
| Surface protection |
Other |
| Transparent |
FALSE |
| Type of fastening |
Mounting with screw |
| Width |
68mm |
| With built-in USB power supply |
FALSE |
| With enhanced contact protection |
FALSE |
| With function lighting |
FALSE |
| With hinged lid |
FALSE |
| With loop through function |
TRUE |
| With miniature fuse |
FALSE |
| With on/off switch |
FALSE |
| With orientation lighting |
FALSE |
