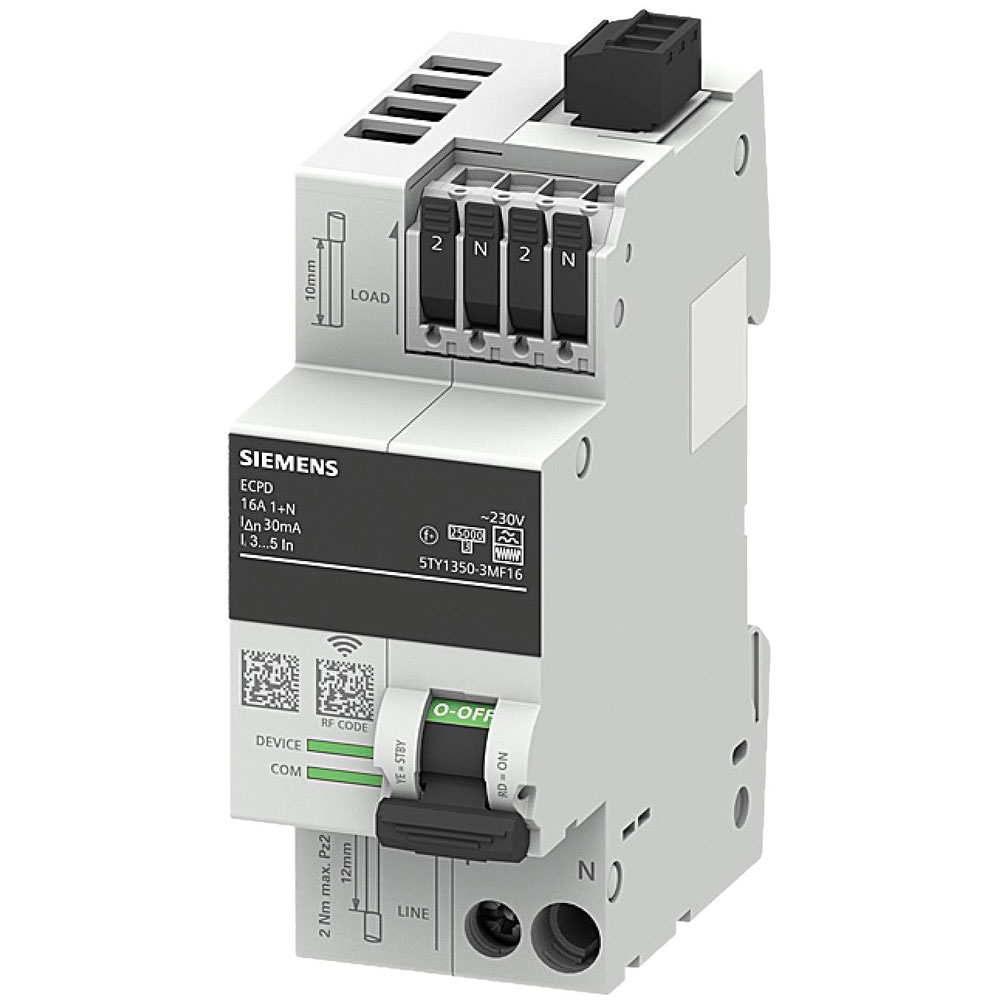

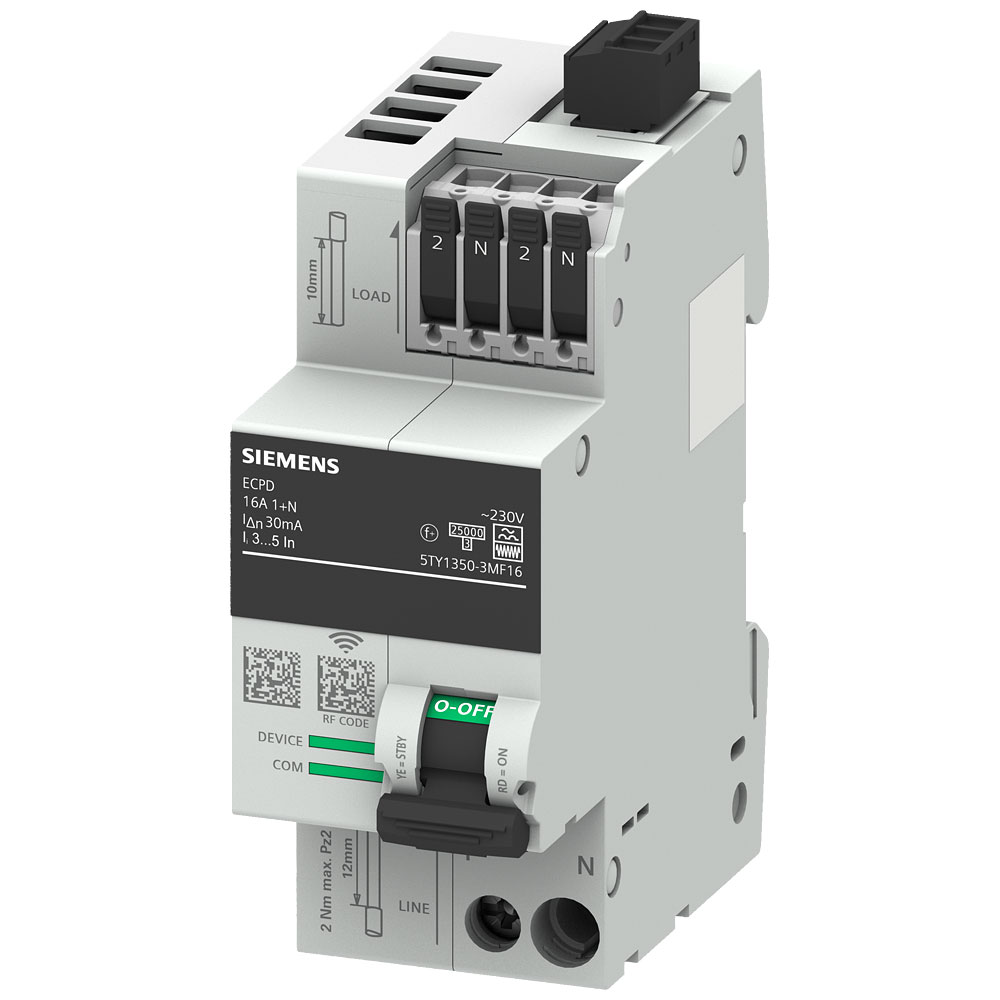

The Siemens 5TY13503MF16 is a 1-phase circuit protection device with a 2-pin configuration, designed for 0.03 A at 230 V. Manufactured by Siemens, it ensures reliable operation in electrical circuits by preventing overloads and short circuits. Typically utilised in residential and commercial electrical installations, this part effectively protects sensitive equipment from electrical faults.
| Type |
Circuit protection |
| Ambient temperature during operating |
N/A |
| Anti-nuisance tripping version |
N/A |
| Built-in depth |
70mm |
| Concurrently switching neutral conductor |
N/A |
| Connectable conductor cross section multi-wired |
N/A |
| Connectable conductor cross section solid-core |
N/A |
| Current limiting class |
3 |
| Degree of protection (IP) |
IP20 |
| Depth |
70mm |
| Differential current rating |
0.03A |
| Dim |
(W x H x D) 36 x 90 x 70 mm |
| Disconnection characteristic |
N/A |
| Flush-mounted installation |
true |
| Frequency |
N/A |
| Height |
90mm |
| Leakage current type |
F |
| Misc Attribute 1 |
ECPD 1+N |
| Misc Attribute 2 |
5TY1 |
| Model |
1-phase |
| Number of Pins |
2 |
| Number of poles (total) |
2 |
| Number of protected poles |
N/A |
| Overvoltage category |
N/A |
| Pollution degree |
2 |
| Power loss |
N/A |
| Rated current |
16A |
| Rated fault current |
0.03A |
| Rated impulse withstand voltage Uimp |
4kV |
| Rated insulation voltage Ui |
250V |
| Rated short-circuit breaking capacity according to EN 61009 |
75kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 |
N/A |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
75kA |
| Rated voltage |
230V |
| Release characteristic |
N/A |
| Release characteristics |
F |
| Surge current capacity |
N/A |
| Switch-off capacity |
16A |
| Voltage Rating |
230V |
| Voltage type |
AC |
| Width |
36mm |
| Width in number of modular spacings |
2 |
| With interlocking device |
true |
