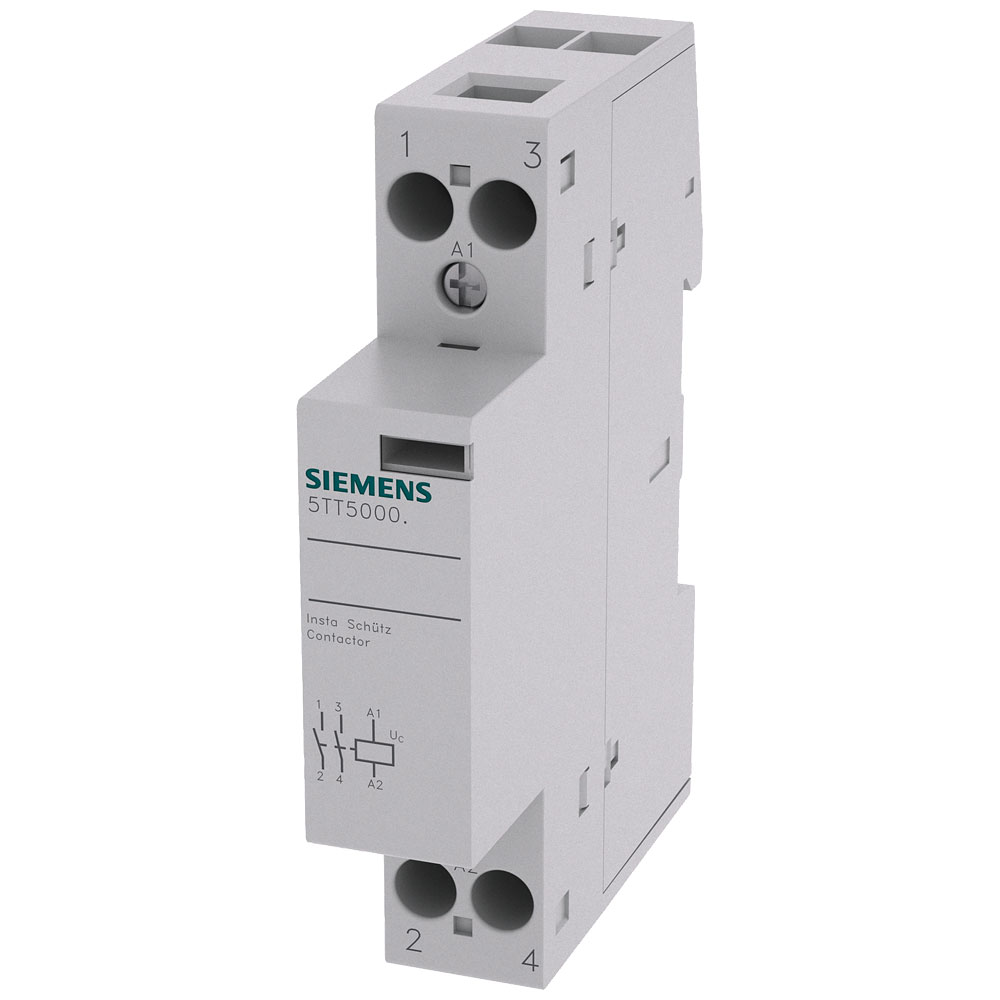

The Siemens 5TT5000-2 remote switch is an electrical contactor designed for efficient power management. It supports up to 20 A and features two makers, suitable for controlling electrical loads remotely. This component is typically used in industrial and residential settings for automation and energy management solutions.
| Type |
Remote switch |
| Coil Voltage |
230V AC |
| Additional equipment possible |
TRUE |
| Built-in depth |
64mm |
| Contact Type |
2 makers |
| Control voltage (max.) |
24V AC |
| Control voltage (min.) |
24V AC |
| Control voltage range |
24 - 24 V AC |
| Current load |
20A |
| Degree of protection (IP) |
IP20 |
| Depth |
71mm |
| Dimensions |
(W x H x D) 17.5 x 90 x 71 mm |
| Height |
90mm |
| Hum-free |
false |
| IP Rating |
IP20 |
| Max. incandescent lamp load |
N/A |
| Max. load fluorescent lamp |
N/A |
| Max. load fluorescent lamp (Duo circuit) |
N/A |
| Max. load fluorescent lamp (parallel compensated) |
N/A |
| Misc Attribute |
5TT5000-2 |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
2 |
| Number of modular spacings |
1 |
| Number of normally closed contacts |
0 |
| Number of normally open contacts |
2 |
| Product colour |
Multicolour |
| Rated excitation voltage |
24-24V |
| Rated operating voltage |
230-230V |
| Rated operation current |
20A |
| Slider for hand switch |
FALSE |
| Switching voltage (max.) |
230V AC |
| Switching voltage (min.) |
230V AC |
| Utilization category according to EN IEC 60947-4-1 |
N/A |
| Voltage type (excitation voltage) |
AC/DC |
| Voltage type (operating voltage) |
AC |
| Weight |
144g |
| Width |
17.5mm |
| Width in number of modular spacings |
1 |
| With day/night function |
false |
