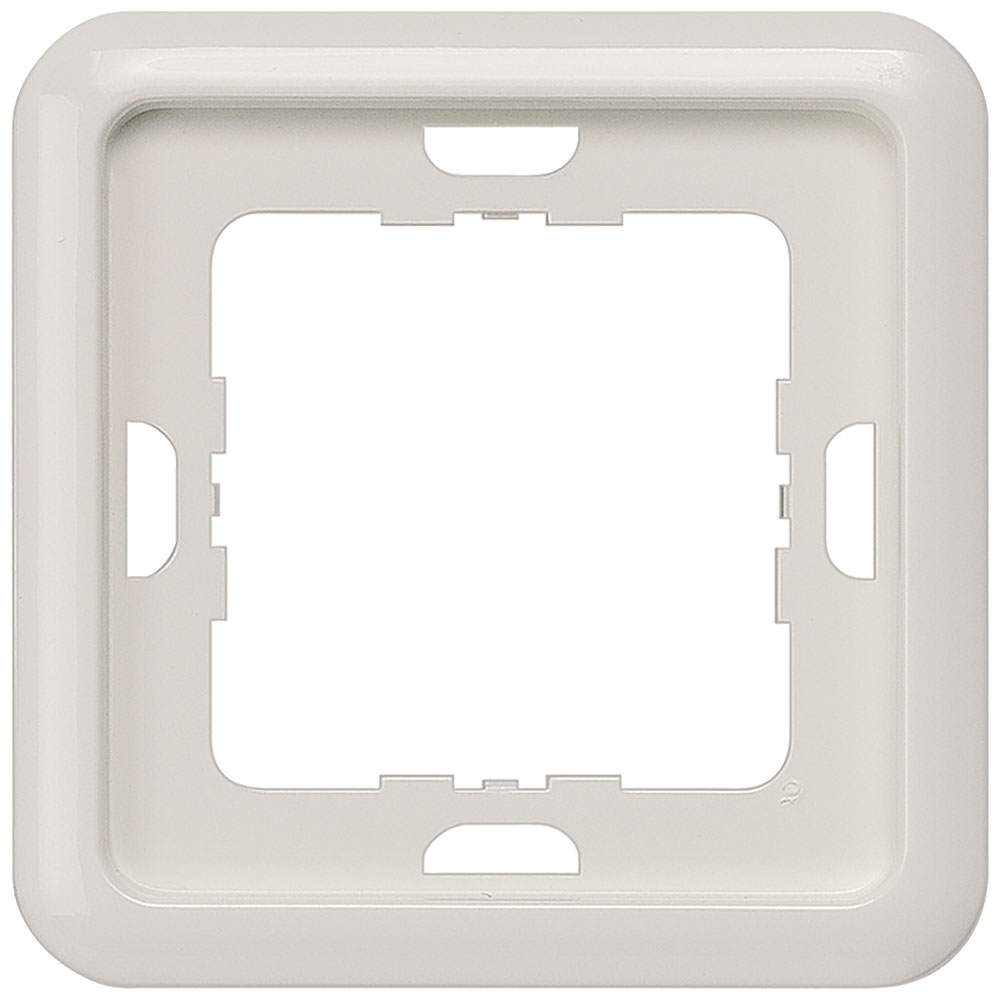

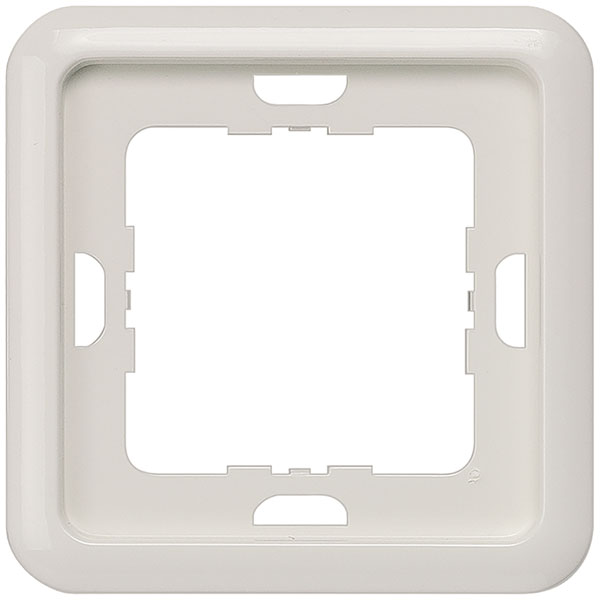

Siemens 5TG1811 Delta 1x Frame titanium white 80x80mm modular design

Siemens 5TG1811 is a frame component in the Delta white switch product range, designed for aesthetic compatibility in modern interior spaces. This frame provides a clean, elegant border for switch installations, enhancing the overall look of the electrical fitting. It is typically used in residential and commercial buildings to offer a seamless and stylish appearance for wall-mounted switches.

Type	Switch product range
Anti-bacterial treatment	false
Built-in height	N/A
Built-in width	N/A
Colour	White
Degree of protection (IP)	IP20
Depth	N/A
Diameter bore hole (opening)	68mm
Flush-mounted installation	true
Halogen free	TRUE
Height	80mm
Impact strength	> IK10
IP Rating	IP20
Label space/information surface	FALSE
Length	80mm
Material	N/A
Material quality	Thermoplastic
Misc Attribute	1-fach Frames
Mounting Direction	Horizontal and vertical
Number of device inserts horizontal	N/A
Number of device inserts vertical	N/A
Number of modules horizontal (module system)	1
Number of modules vertical (module system)	1
Number of units	1
Package depth	70mm
Package height	70mm
Package width	9mm
Quantity per pack	1 pc(s)
RAL-number (similar)	9010
Similar RAL	9010
Size/ Dimensions	(L x W) 80 mm x 80 mm
Suitable for built-in installation	FALSE
Suitable for subfloor installation duct box	FALSE
Suitable for wall duct	FALSE
Surface finishing	Glossy
Surface protection	Other
Switch type component	Frame
Transparent	FALSE
Type of fastening	Clamp mounting
Type series	Delta
Weight	17g
Width	80mm
With hinged lid	FALSE
With mounting grid	N/A
