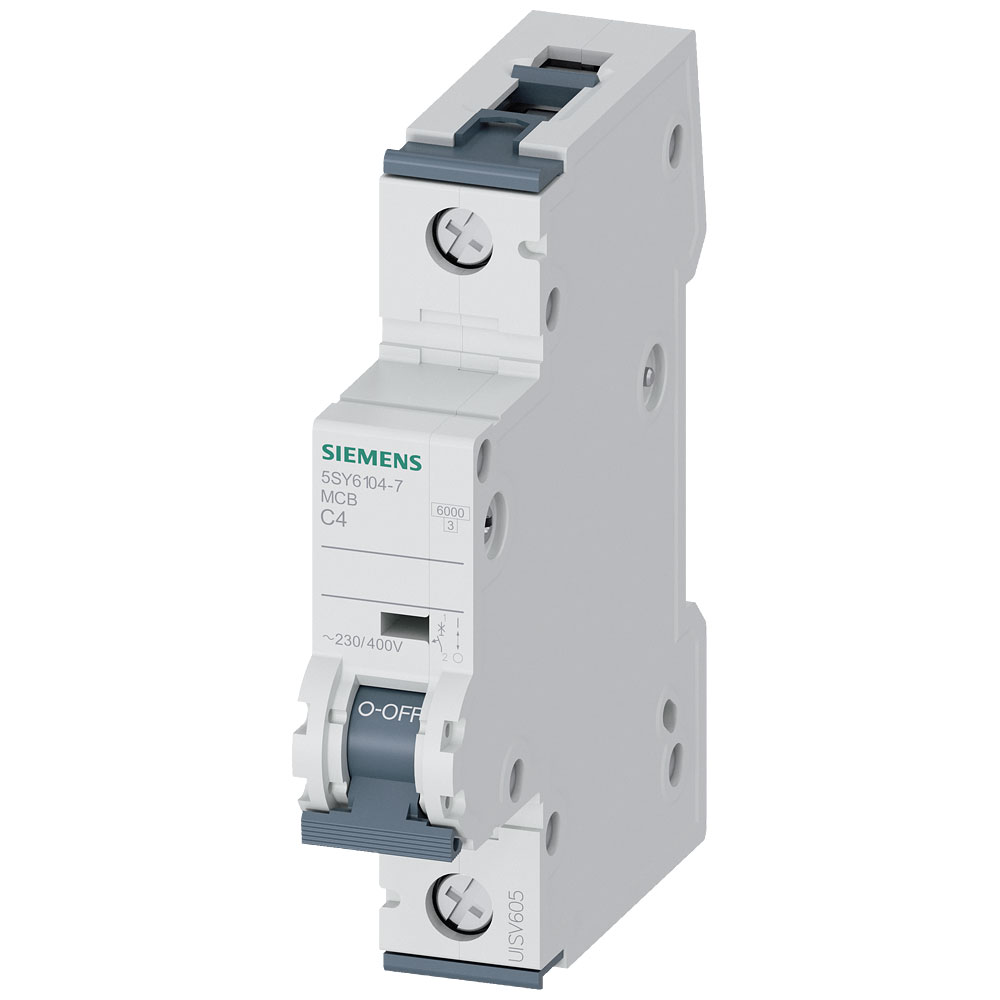

Siemens 5SY61047 Miniature Circuit Breaker 4A 230/400V 1-pole 6kA

Image Representative of Range

Siemens 5SY61047 Miniature Circuit Breaker 4A 230/400V 1-pole 6kA

Siemens
Order Code:

07-0528

Brand: Siemens MPN: 5SY61047 EAN-13: 4001869246024
Qty Unit Price (Ex VAT)
1+ £22.11
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
13 in stock, despatched in 4 working days

The Siemens 5SY61047 circuit breaker is designed to handle a current of 4 A at voltages of 230 V or 400 V. It is commonly used for protecting electrical circuits in residential and commercial installations. This circuit breaker ensures safe operation by quickly interrupting the circuit during overload or fault conditions.
Type Circuit breaker
Additional equipment possible TRUE
Built-in depth 70mm
Compatible with (details) SENTRON
Concurrently switching neutral conductor FALSE
Current limiting class 3
Degree of protection (IP) IP20
Depth 76mm
Dim (W x H x D) 18 x 90 x 76 mm
Factory colour Grey
Frequency 50-60MHz
Height 90mm
Nominal Current 4A
Nominal current - rounded value 4A
Number of Poles 1
Number of poles (total) 1
Number of protected poles 1
Operating Voltage 440V
Overvoltage category 3
Pollution degree 3
Rated Current 4A
Rated impulse withstand voltage Uimp 4
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 30kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 30kA
Rated Voltage 400V
Release characteristic C
Release characteristics C
Switch-off capacity 5kA
Voltage type AC
Width 18mm
Width in number of modular spacings 1
