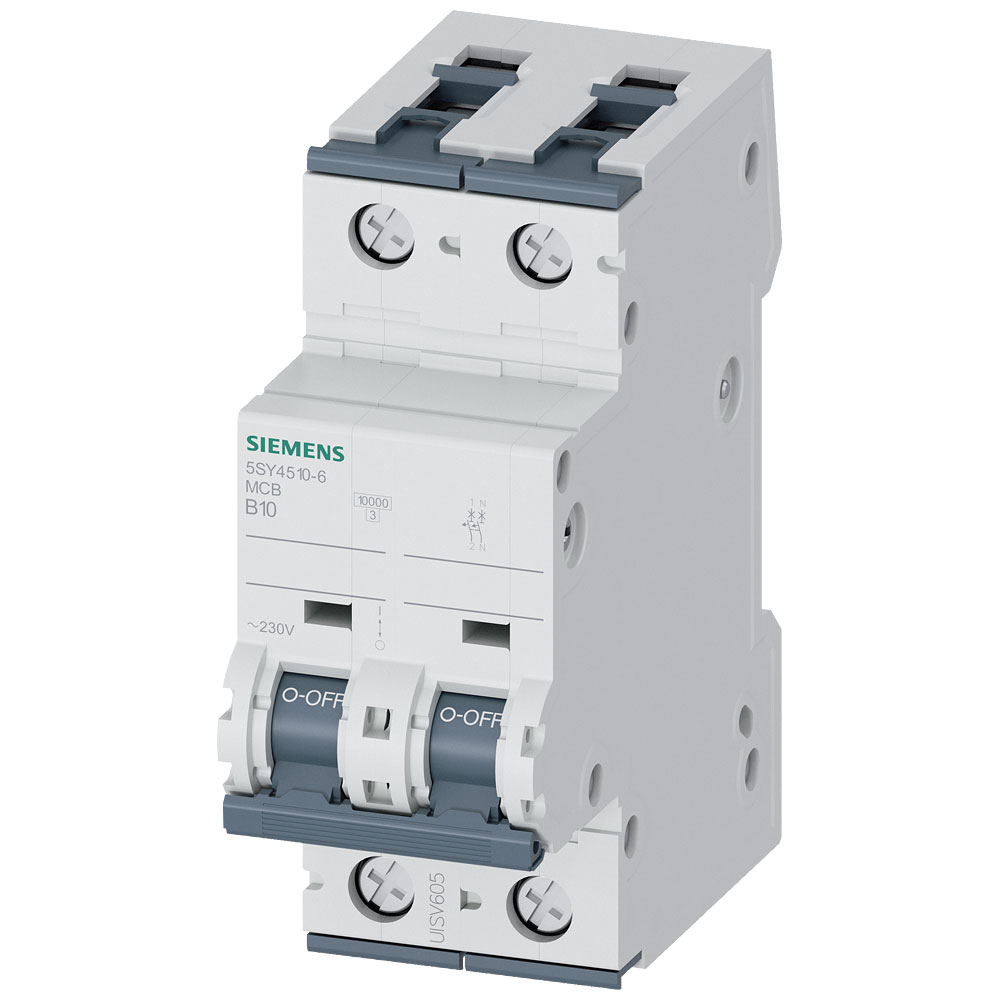

The Siemens 5SY4510-6 circuit breaker is designed for safe and reliable protection with a current rating of 10 A, supporting voltage operations at 230 V or 400 V. This circuit breaker is commonly used in residential and commercial electrical systems, providing essential protection against overloads and short circuits. With its proven performance, it is ideal for maintaining electrical safety and system integrity.
| Type |
Circuit breaker |
| Current Rating |
10a |
| Voltage Rating - AC |
230V AC |
| No. of Poles |
2 |
| Tripping Characteristics |
B Curve |
| Additional equipment possible |
TRUE |
| Ambient temperature during operating |
-40 - 70°C |
| Built-in depth |
70mm |
| Compatible with (details) |
SENTRON |
| Concurrently switching neutral conductor |
TRUE |
| Connectable conductor cross section multi-wired |
0.75 - 35mm² |
| Connectable conductor cross section solid-core |
0.75 - 35mm² |
| Current limiting class |
3 |
| Current Ratng |
10A |
| Degree of protection (IP) |
IP20 |
| Depth |
76mm |
| Dim |
(W x H x D) 36 x 90 x 76 mm |
| Explosion-proof |
false |
| Factory colour |
Grey |
| Flush-mounted installation |
false |
| Frequency |
50-60MHz |
| Height |
90mm |
| Number of pins |
2 |
| Number of poles (total) |
2 |
| Number of protected poles |
1 |
| Overvoltage category |
3 |
| Pollution degree |
3 |
| Power loss |
N/A |
| Rated current |
10A |
| Rated impulse withstand voltage Uimp |
4 |
| Rated insulation voltage Ui |
250V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V |
10kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V |
10kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V |
20kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V |
20kA |
| Rated voltage |
230V |
| Switch-off Capacity |
5kA |
| Voltage Rating |
230V |
| Voltage type |
AC |
| Width |
36mm |
| Width in number of modular spacings |
2 |
