Siemens 5SY43326 Circuit Breaker 32A 230V/400V 10kA 3-pole

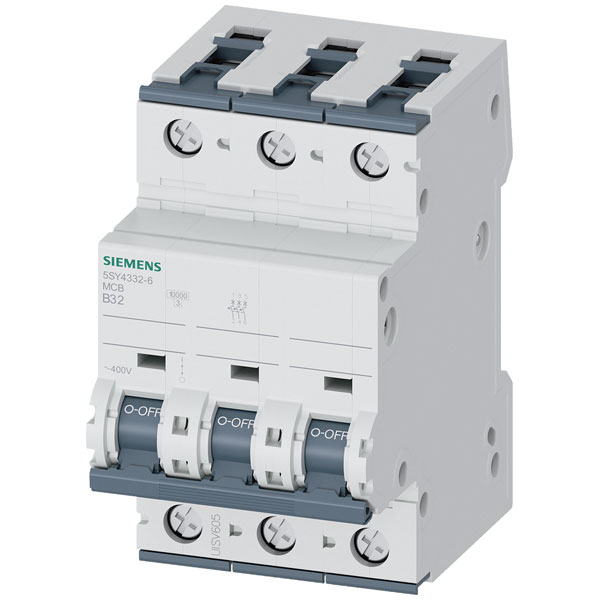

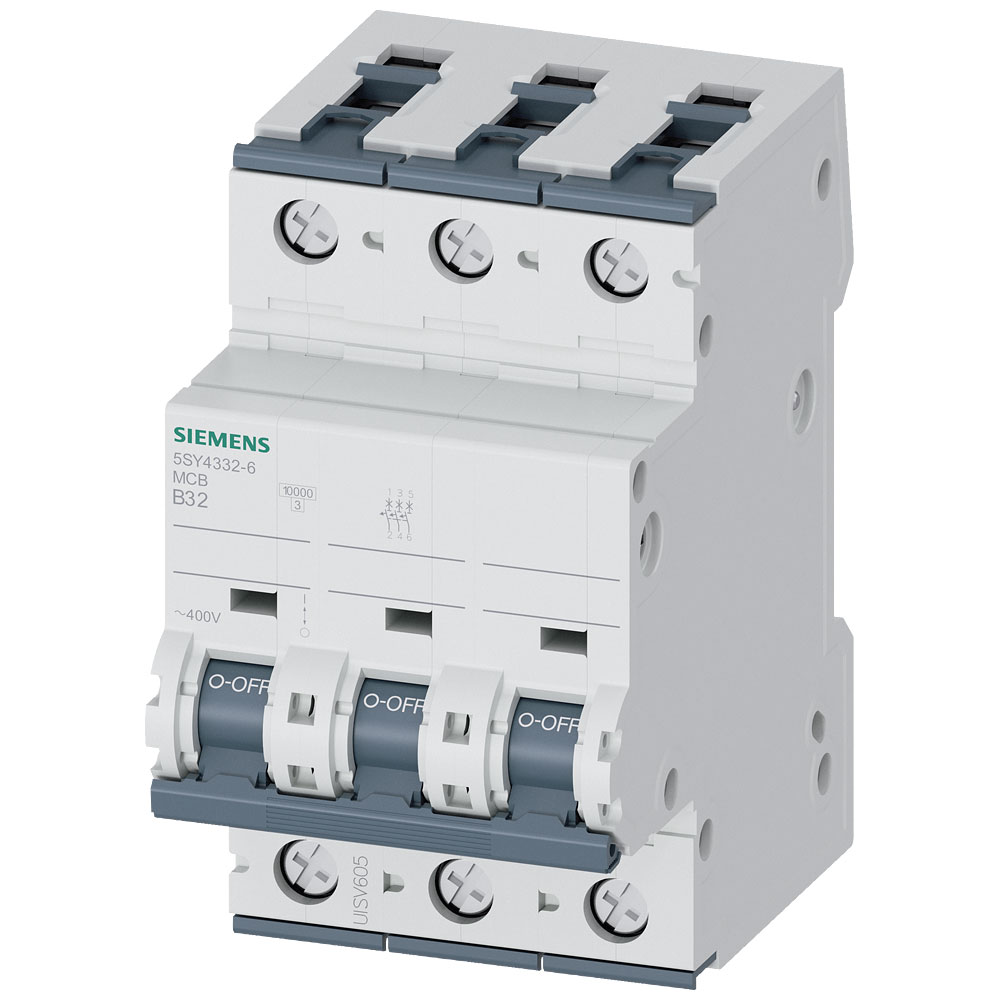

Image Representative of Range

Siemens 5SY43326 Circuit Breaker 32A 230V/400V 10kA 3-pole

Siemens
Order Code:

07-0519

Brand: Siemens MPN: 5SY43326 EAN-13: 4001869181806
Qty Unit Price (Ex VAT)
1+ £39.75
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

The Siemens 5SY43326 is a circuit breaker designed for a current rating of 32 A and supports voltages of 230 V and 400 V. This circuit breaker provides essential protection for electrical circuits in residential and commercial settings, ensuring safety by preventing overloads and short circuits. Typical applications include use in distribution boards for lighting and power circuits.
Type Circuit breaker
Additional equipment possible TRUE
Ambient temperature during operating -40 - 70°C
Built-in depth 70mm
Compatible with (details) SENTRON
Concurrently switching neutral conductor FALSE
Connectable conductor cross section multi-wired 0.75 - 35mm²
Connectable conductor cross section solid-core 0.75 - 35mm²
Current limiting class 3
Current Ratng 32A
Degree of protection (IP) IP20
Depth 76mm
Dim (W x H x D) 54 x 90 x 76 mm
Explosion-proof false
Factory colour Grey
Flush-mounted installation false
Frequency 50-60MHz
Height 90mm
Number of Pins 3
Number of poles (total) 3
Number of protected poles 3
Overvoltage category 3
Pollution degree 3
Power loss N/A
Rated current 32A
Rated impulse withstand voltage Uimp 4
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 20kA
Rated voltage 400V
Release characteristic B
Release characteristics B
Switch-off capacity 5kA
Voltage Rating 400V
Voltage type AC
Width 54mm
Width in number of modular spacings 3
