Siemens 5SY43207 miniature Circuit Breaker 3-pole 32A 400V 10kA

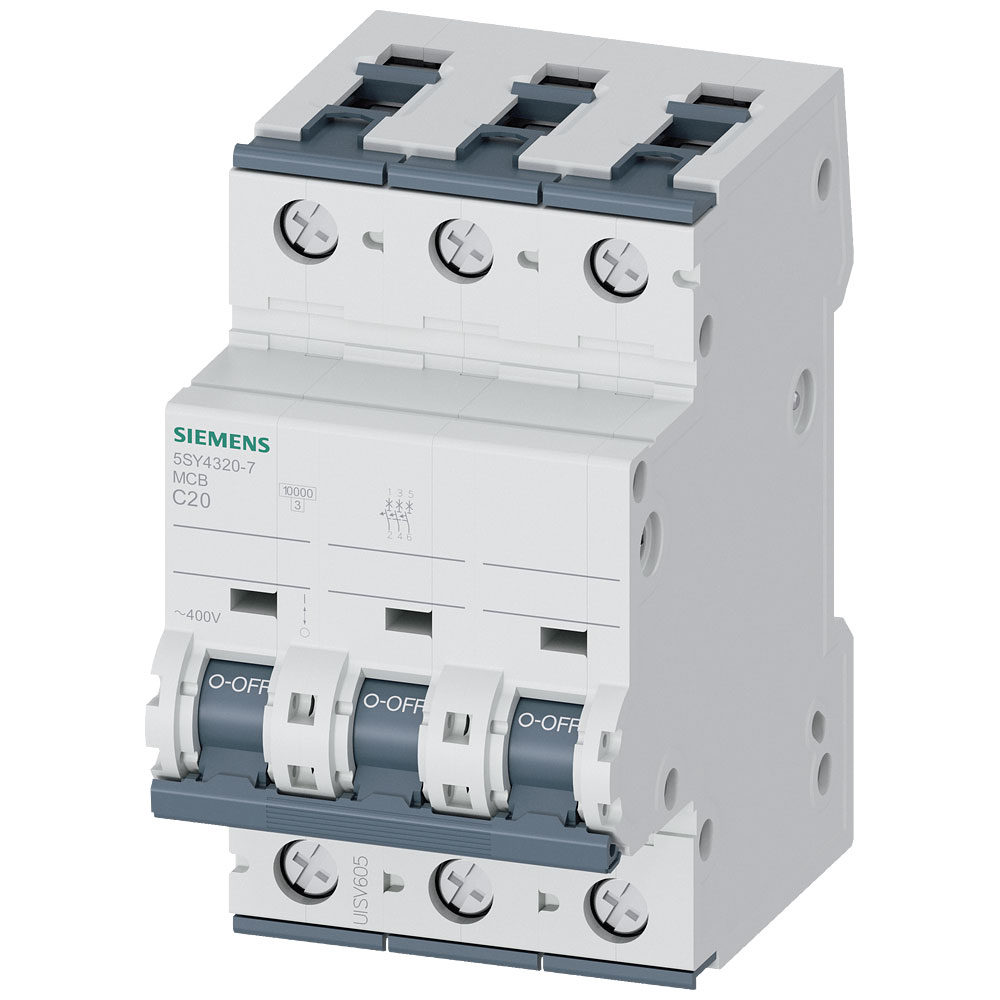

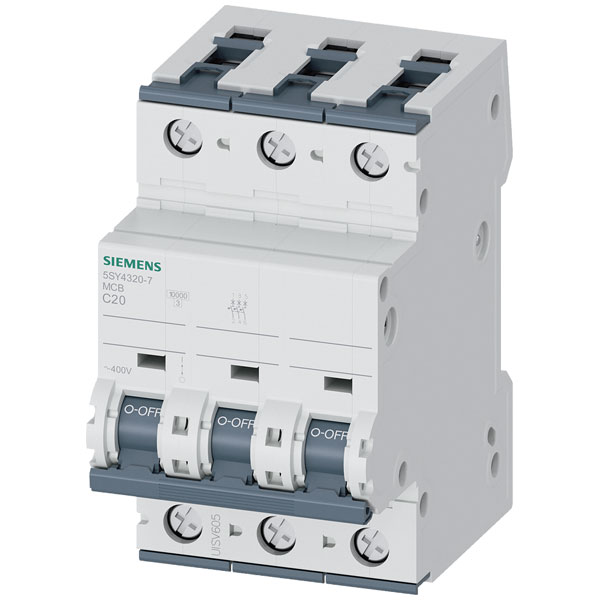

Image Representative of Range

Siemens 5SY43207 miniature Circuit Breaker 3-pole 32A 400V 10kA

Siemens
Order Code:

07-0516

Brand: Siemens MPN: 5SY43207 EAN-13: 4001869181967
Qty Unit Price (Ex VAT)
1+ £72.93
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Siemens 5SY43207 circuit breaker is rated at 20 A and supports voltage levels of 230 V and 400 V. It provides reliable overcurrent protection for residential and commercial electrical systems. Typical applications include safeguarding lighting circuits and electrical appliances from short circuits and overloads.
Type Circuit breaker
Additional equipment possible TRUE
Built-in depth 70mm
Compatible with (details) SENTRON
Concurrently switching neutral conductor FALSE
Current limiting class 3
Degree of protection (IP) IP20
Depth 76mm
Dim (W x H x D) 54 x 90 x 76 mm
Factory colour Grey
Frequency 50-60MHz
Height 90mm
Nominal Current 20A
Nominal current - rounded value 20A
Number of Pins 3
Number of poles (total) 3
Number of protected poles 3
Operating Voltage 440V
Overvoltage category 3
Pollution degree 3
Rated Current 20A
Rated impulse withstand voltage Uimp 4
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 20kA
Rated Voltage 400V
Release characteristic C
Release characteristics C
Switch-off capacity 5kA
Voltage type AC
Width 54mm
Width in number of modular spacings 3
