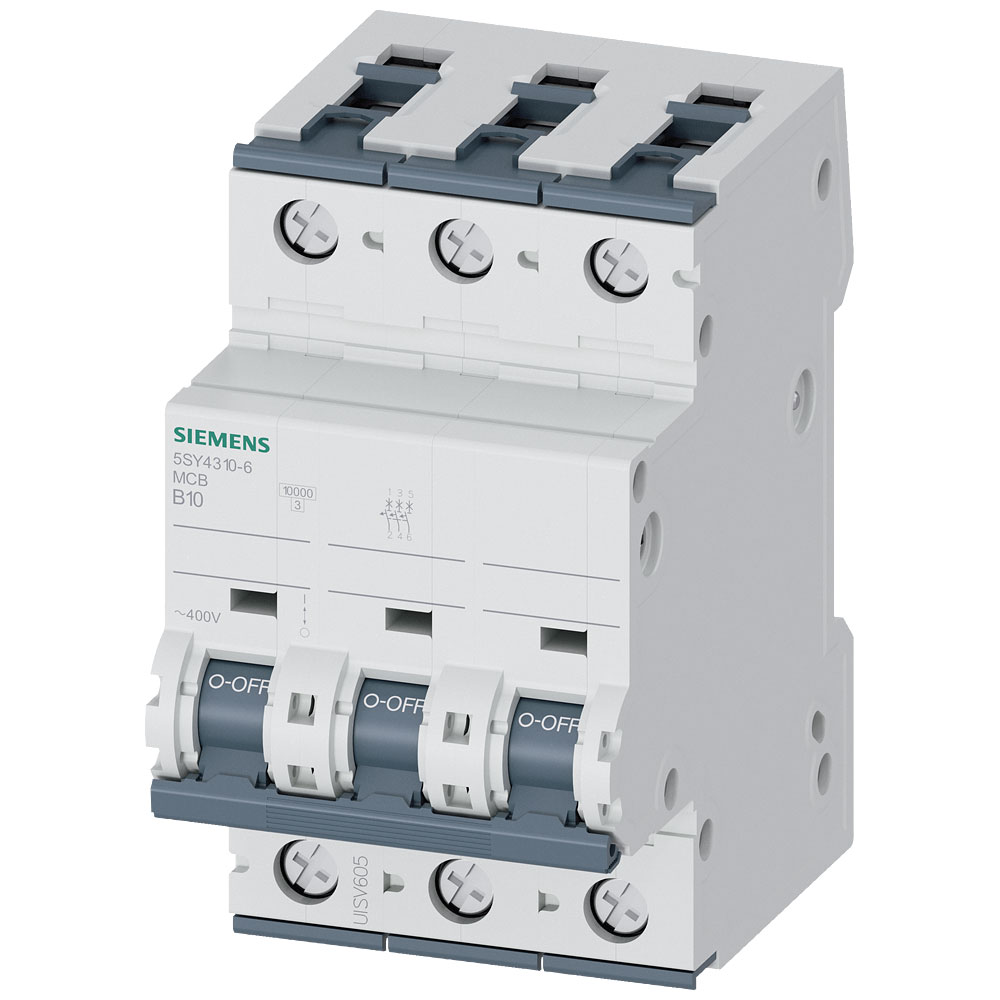

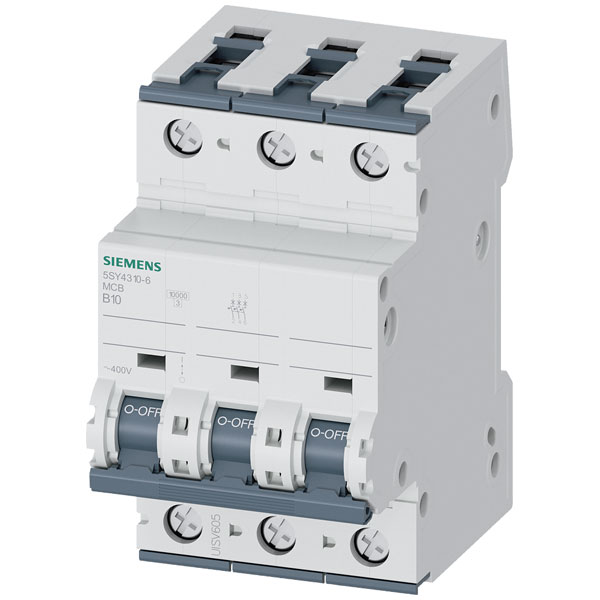

Siemens 5SY43106 Circuit Breaker 10A 230/400V 3-pole 10kA C 70mm

Produced by Siemens, the 5SY43106 circuit breaker is rated for 10 A with a voltage capacity of 230 V to 400 V. This device is suitable for protecting electrical circuits from overloads and short circuits. It is commonly used in residential and commercial electrical installations.

Type	Circuit breaker
Current Rating	10a
Voltage Rating - AC	400V AC
No. of Poles	3
Tripping Characteristics	B Curve
Additional equipment possible	TRUE
Ambient temperature during operating	-40 - 70°C
Built-in depth	70mm
Compatible with (details)	SENTRON
Concurrently switching neutral conductor	FALSE
Connectable conductor cross section multi-wired	0.75 - 35mm²
Connectable conductor cross section solid-core	0.75 - 35mm²
Current limiting class	3
Current Ratng	10A
Degree of protection (IP)	IP20
Depth	76mm
Dim	(W x H x D) 54 x 90 x 76 mm
Explosion-proof	false
Factory colour	Grey
Flush-mounted installation	false
Frequency	50-60MHz
Height	90mm
Number of Pins	3
Number of poles (total)	3
Number of protected poles	3
Overvoltage category	3
Pollution degree	3
Power loss	N/A
Rated current	10A
Rated impulse withstand voltage Uimp	4
Rated insulation voltage Ui	440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	20kA
Rated voltage	400V
Switch-off Capacity	5kA
Voltage Rating	400V
Voltage type	AC
Weight	0
Width	54mm
Width in number of modular spacings	3
