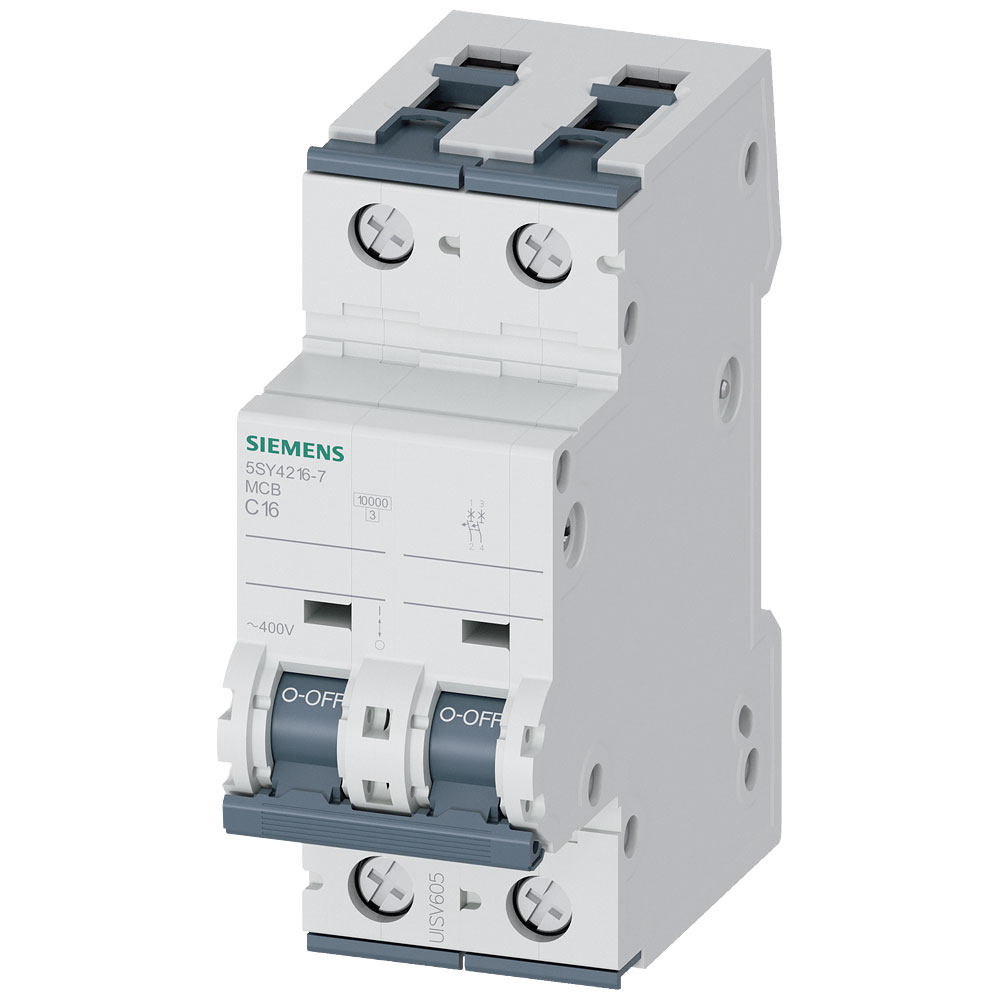

Siemens 5SY42167 Miniature Circuit Breaker 16A 230V 400V 10kA 2-pole B

Image Representative of Range

Siemens 5SY42167 Miniature Circuit Breaker 16A 230V 400V 10kA 2-pole B

Siemens
Order Code:

07-0506

Brand: Siemens MPN: 5SY42167 EAN-13: 4001869181660
Qty Unit Price (Ex VAT)
1+ £64.45
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Siemens 5SY42167 circuit breaker is rated for 16 A and operates at 230 V/400 V. This device provides protection by safely disconnecting circuits in residential and commercial electrical systems. It is commonly used to prevent overloads and short circuits in building electrical installations.
Type Circuit breaker
Additional equipment possible TRUE
Built-in depth 70mm
Compatible with (details) SENTRON
Concurrently switching neutral conductor FALSE
Current limiting class 3
Degree of protection (IP) IP20
Depth 76mm
Dim (W x H x D) 36 x 90 x 76 mm
Factory colour Grey
Frequency 50-60MHz
Height 90mm
Nominal Current 16A
Nominal current - rounded value 16A
Number of Pins 2
Number of poles (total) 2
Number of protected poles 2
Operating Voltage 440V
Overvoltage category 3
Pollution degree 3
Rated Current 16A
Rated impulse withstand voltage Uimp 4
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 20kA
Rated Voltage 400V
Release characteristic C
Release characteristics C
Switch-off capacity 5kA
Voltage type AC
Width 36mm
Width in number of modular spacings 2
