Siemens 5SV60167KK16 afdd Fuse 16A 230V 6kA 1+N C current Breaker

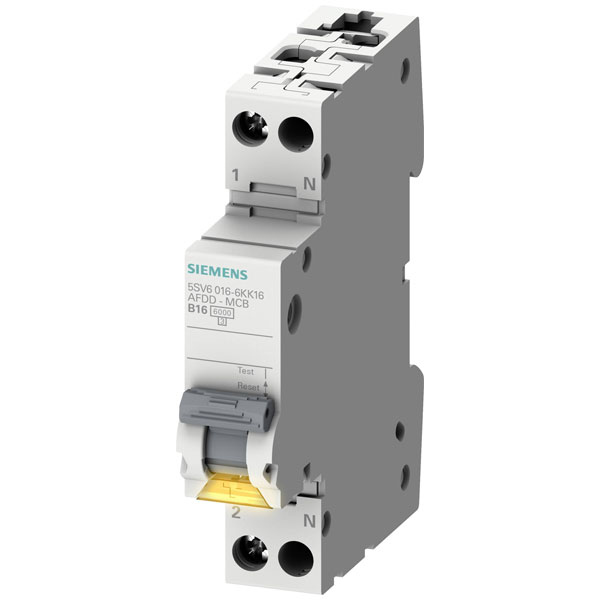

Siemens manufactures the 5SV6016-7KK16 circuit protection device with a 16 A fuse size and is designed for 230 V systems. This AFDD helps prevent electrical fires caused by arc faults, enhancing safety in residential and commercial installations. It is ideal for use in settings that require high safety standards, such as homes, offices, and public buildings.

Type	AFDD
Fuse Size	1
Current Rating	16A
Voltage Rating - AC	230V
Additional equipment attached at delivery	Fire protection switch
Built-in depth	70mm
Colour	White
Concurrently switching neutral conductor	true
Construction size according to DIN 43880	N/A
Control voltage type auxiliary equipment	AC
Current limiting class	3
Degree of protection (IP)	IP20
Depth	68.5mm
Dim	(W x H x D) 18 x 90 x 68.5 mm
Frequency	50 - 50Hz
Height	90mm
Nominal Voltage	230V
Number of Pins	2
Number of Poles	2
Overvoltage category	N/A
Pollution degree	2
Rated short-circuit breaking capacity according to EN 60898	6kA
Rated short-circuit breaking capacity according to IEC 60947-2	6kA
Rated switch current auxiliary device	6000
Rated voltage	230V
Rated voltage auxiliary device	N/A
Release characteristic	C
Release characteristics	C
Voltage type	AC
Weight	0
Width	18mm
Width in number of modular spacings	1
