Siemens 5SV60166MC13 AFDD 2-pin 13 A monitors and protects end Circuits

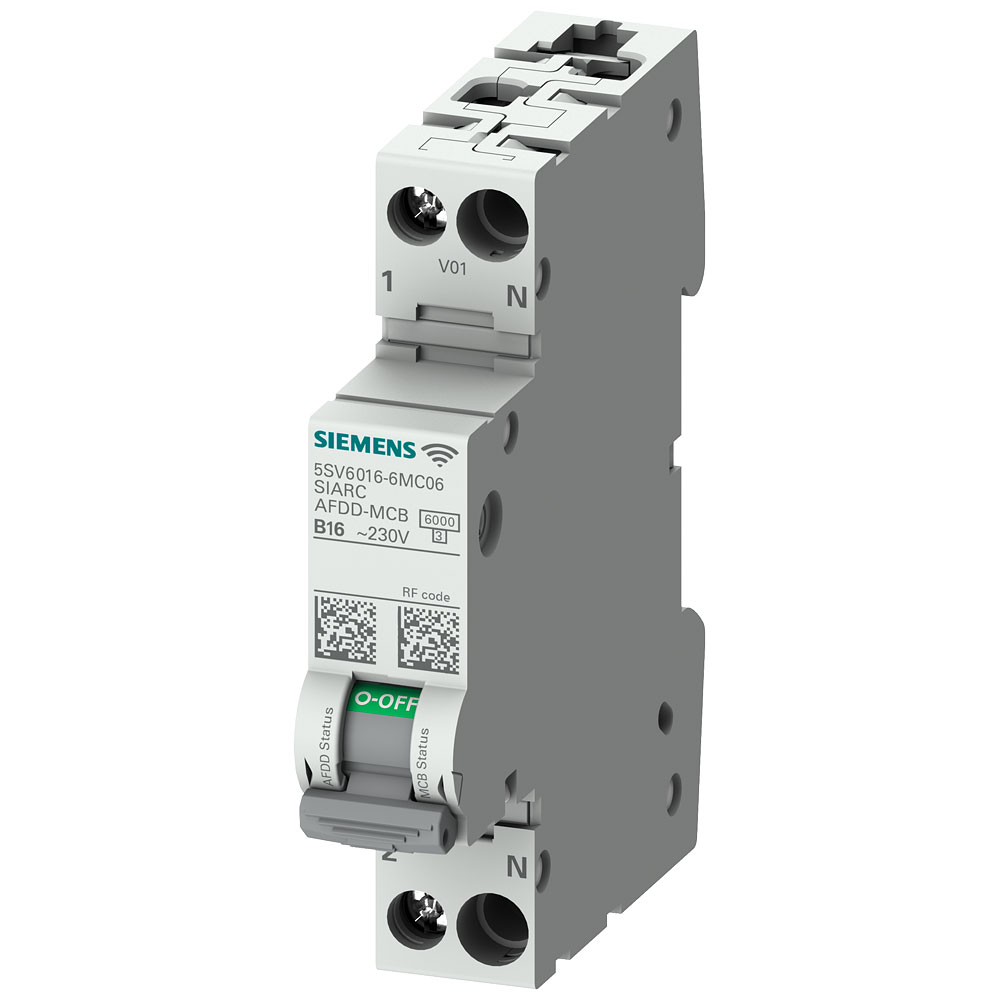

Image Representative of Range

Siemens 5SV60166MC13 AFDD 2-pin 13 A monitors and protects end Circuits

Siemens
Order Code:

07-0478

Brand: Siemens MPN: 5SV60166MC13 EAN-13: 4001869582177
Qty Unit Price (Ex VAT)
1+ £365.44
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 11 days

The Siemens 5SV6016-6MC13 is a 2-pin, 13 A arc fault detection device (AFDD). It enhances safety by identifying hazardous arc faults in electrical circuits. This part is typically used in residential and commercial electrical installations to prevent electrical fires.
Type AFDD
Additional equipment attached at delivery Fire protection switch
Built-in depth 70mm
Concurrently switching neutral conductor TRUE
Control voltage type auxiliary equipment AC
Current limiting class 3
Degree of protection (IP) IP20
Depth 70mm
Dim (W x H x D) 18 x 90 x 70 mm
Height 90mm
Misc Attribute 1 TE
Nominal Current 13A
Nominal current - rounded value 13A
Nominal voltage (details) 230V AC
Number of Pins 2
Number of Poles 2
Pollution degree 2
Rated Current 13A
Rated short-circuit breaking capacity according to EN 60898 6kA
Rated short-circuit breaking capacity according to IEC 60947-2 6kA
Rated switch current auxiliary device 6000
Rated Voltage 230V
Rated voltage auxiliary device 195
Release characteristic B
Release characteristics B
Voltage type AC
Width 18mm
Width in number of modular spacings 1
