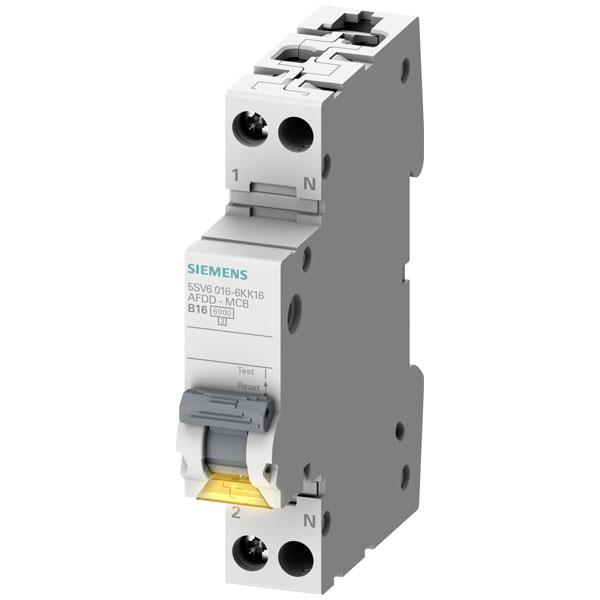

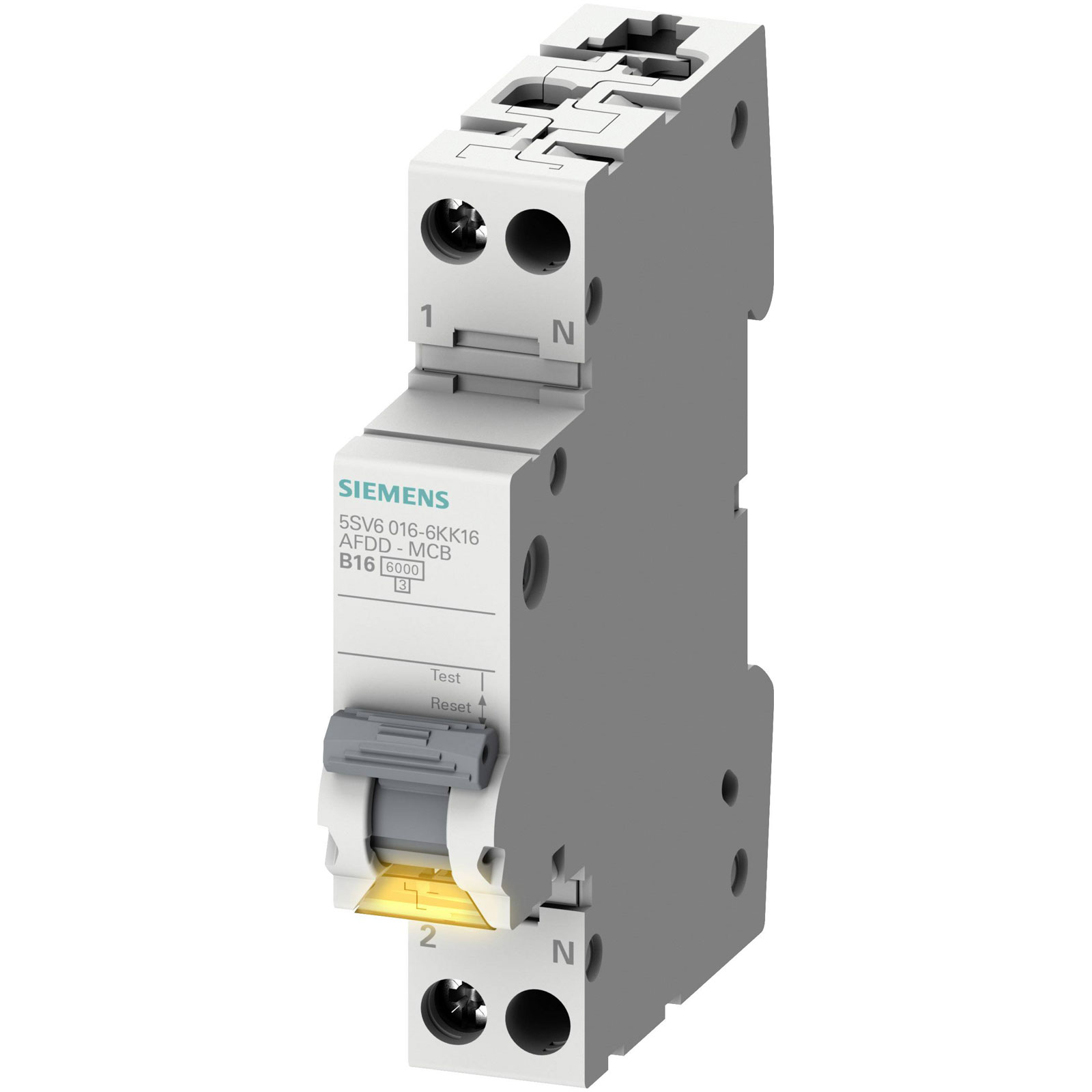

Siemens 5SV60166KK10 AFDD 10A 230V compact residual current Circuit Breaker

Siemens manufactures the 5SV6016-6KK10, an arc fault detection device (AFDD) with a fuse size of 1, suitable for a 2-pin 10 A circuit at 230 V. This AFDD helps prevent electrical fires by detecting dangerous arc faults in residential and commercial settings. Its compact design and reliable performance make it ideal for enhancing electrical safety in homes and businesses.

Type	AFDD
Mounting Type	DIN rail
Fuse Size	1
Current Rating	10A
Voltage Rating - AC	230V
Termination	Screw terminal
Additional equipment attached at delivery	Fire protection switch
Built-in depth	70mm
Colour	White
Concurrently switching neutral conductor	true
Construction size according to DIN 43880	N/A
Control voltage type auxiliary equipment	AC
Current limiting class	3
Degree of protection (IP)	IP20
Depth	68.5mm
Dim	(W x H x D) 18 x 90 x 68.5 mm
Frequency	50 - 50Hz
Height	90mm
Nominal Voltage	230V
Number of pins	2
Number of Poles	2
Overvoltage category	N/A
Pollution degree	2
Rated short-circuit breaking capacity according to EN 60898	6kA
Rated short-circuit breaking capacity according to IEC 60947-2	6kA
Rated switch current auxiliary device	6000
Rated voltage	230V
Rated voltage auxiliary device	N/A
Release characteristic	B
Release characteristics	B
Voltage type	AC
Weight	0
Width	18mm
Width in number of modular spacings	1
