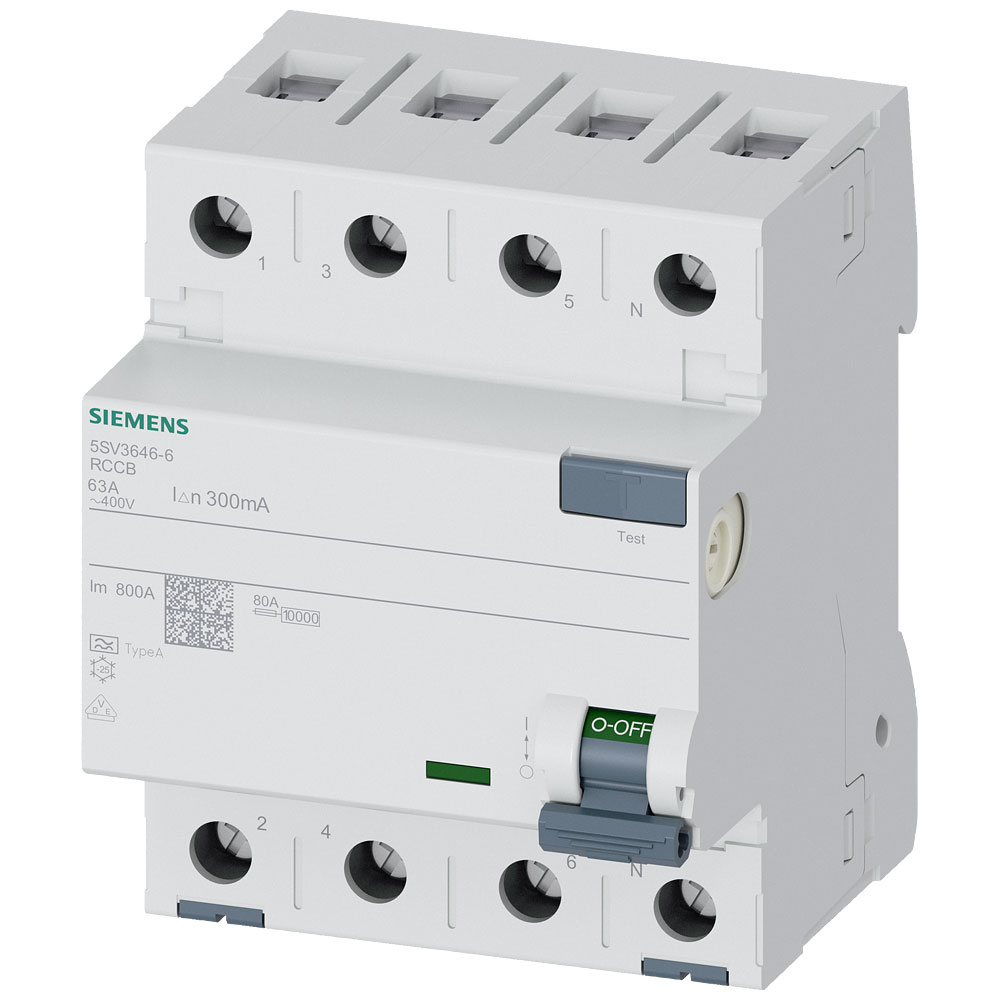

The Siemens 5SV36466 RCCB is a 4-pin residual current circuit breaker with a 63 A rating and 0.3 A sensitivity, designed for 400 V systems. It is used to provide protection against electrical shocks and fire hazards by detecting earth faults. Typical applications include residential, commercial, and industrial electrical installations where safety is a priority.
| Type |
RCCB |
| Current Rating |
63A |
| Voltage Rating - AC |
400V AC |
| No. of Poles |
4 |
| Actuator Type |
Toggle |
| Tripping Characteristics |
A Curve |
| Additional equipment possible |
true |
| Ambient temperature during operating |
-25 - 45°C |
| Built-in depth |
70mm |
| Connectable conductor cross section multi-wired |
0.75 - 35mm² |
| Connectable conductor cross section solid-core |
0.75 - 35mm² |
| Current Ratng |
63A |
| Degree of protection (IP) |
N/A |
| Depth |
70mm |
| Differential current rating |
0.3A |
| Dim |
(W x H x D) 72 x 90 x 70 mm |
| Explosion-proof |
false |
| Factory colour |
Grey |
| Frequency |
50 Hz |
| Height |
90mm |
| Leakage current type |
A |
| Misc Attribute |
Design of the product: without delay; Mounting Type: DIN rail |
| Mounting method |
N/A |
| Number of pins |
4 |
| Number of Poles |
4 |
| Pollution degree |
2 |
| Power loss |
3.9W |
| RAL-number (similar) |
7035 |
| Rated current |
63A |
| Rated fault current |
0.3A |
| Rated impulse withstand voltage Uimp |
6kV |
| Rated insulation voltage Ui |
2000V |
| Rated voltage |
400V |
| Selective protection |
false |
| Short-circuit breaking capacity (Icw) |
10kA |
| Short-time delayed tripping |
false |
| Surge current capacity |
1kA |
| Switch-off Capacity |
0.8kA |
| Voltage Rating |
400V |
| Voltage type |
AC |
| Weight |
0 |
| Width |
72mm |
| Width in number of modular spacings |
4 |
| With interlocking device |
true |
