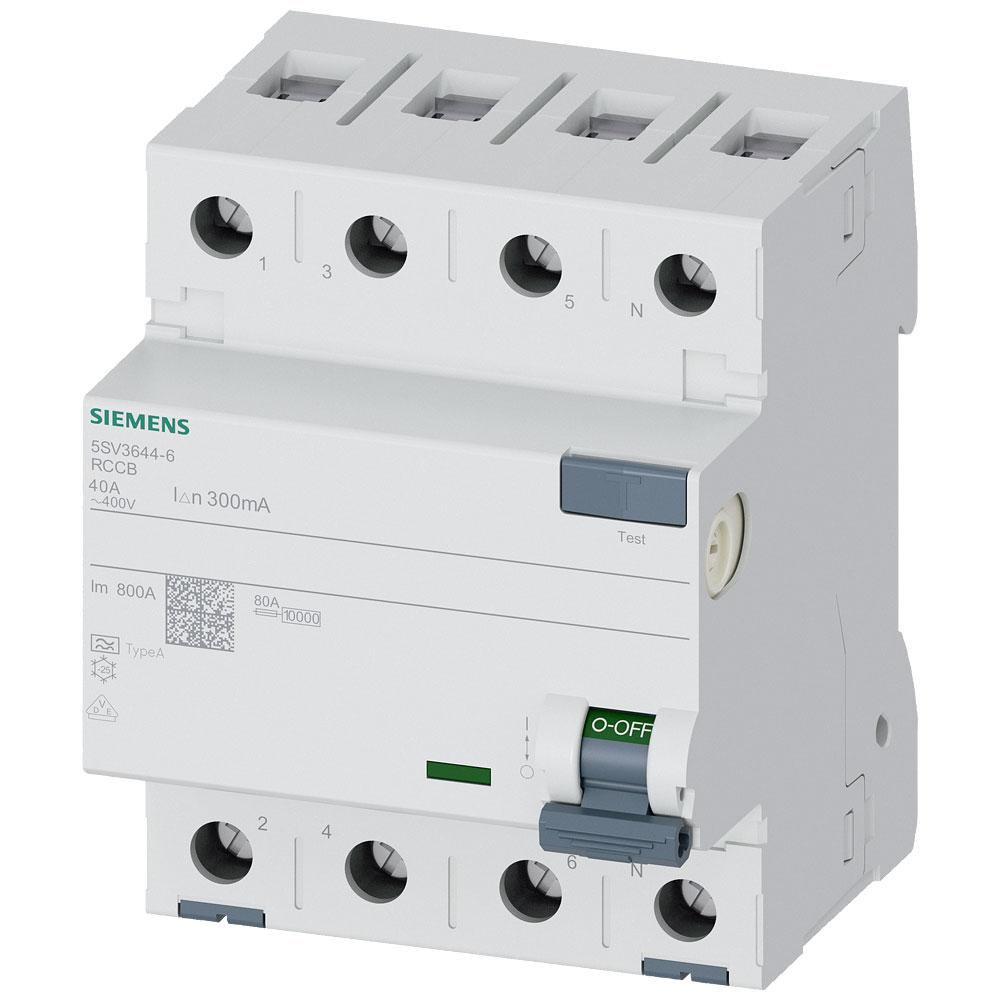

Siemens 5SV36446 RCCB 4-pin 40A 300mA 400V residual current device

Siemens manufactures the 5SV36446 RCCB, which is a 4-pin device rated for 40 A and 0.3 A at 400 V. This residual current circuit breaker (RCCB) provides crucial protection against electric shock and fire caused by ground faults. It is commonly used in residential, commercial, and industrial electrical installations for enhanced electrical safety.

Type	RCCB
Current Rating	40A
Voltage Rating - AC	400V AC
No. of Poles	4
Tripping Characteristics	A Curve
Additional equipment possible	TRUE
Ambient temperature during operating	-25 - 45°C
Built-in depth	70mm
Connectable conductor cross section multi-wired	0.75 - 35mm²
Connectable conductor cross section solid-core	0.75 - 35mm²
Current Ratng	0.3A
Degree of protection (IP)	IP20
Depth	70mm
Differential current rating	0.3A
Dim	(W x H x D) 72 x 90 x 70 mm
Explosion-proof	false
Factory colour	Grey
Frequency	50 Hz
Height	90mm
Leakage current type	A
Misc Attribute	Design of the product: without delay; Mounting Type: DIN rail
Mounting method	DIN rail
Number of Pins	4
Number of Poles	4
Pollution degree	2
Power loss	2W
RAL-number (similar)	7035
Rated current	40A
Rated fault current	0.3A
Rated impulse withstand voltage Uimp	6kV
Rated insulation voltage Ui	2000V
Rated voltage	400V
Selective protection	FALSE
Short-circuit breaking capacity (Icw)	10kA
Short-time delayed tripping	FALSE
Surge current capacity	1kA
Switch-off Capacity	0.8kA
Voltage Rating	400V
Voltage type	AC
Weight	0
Width	72mm
Width in number of modular spacings	4
With interlocking device	TRUE
