Siemens 5SV36444 RCCB 4-pin 40A 300mA 400V protects against electric shock

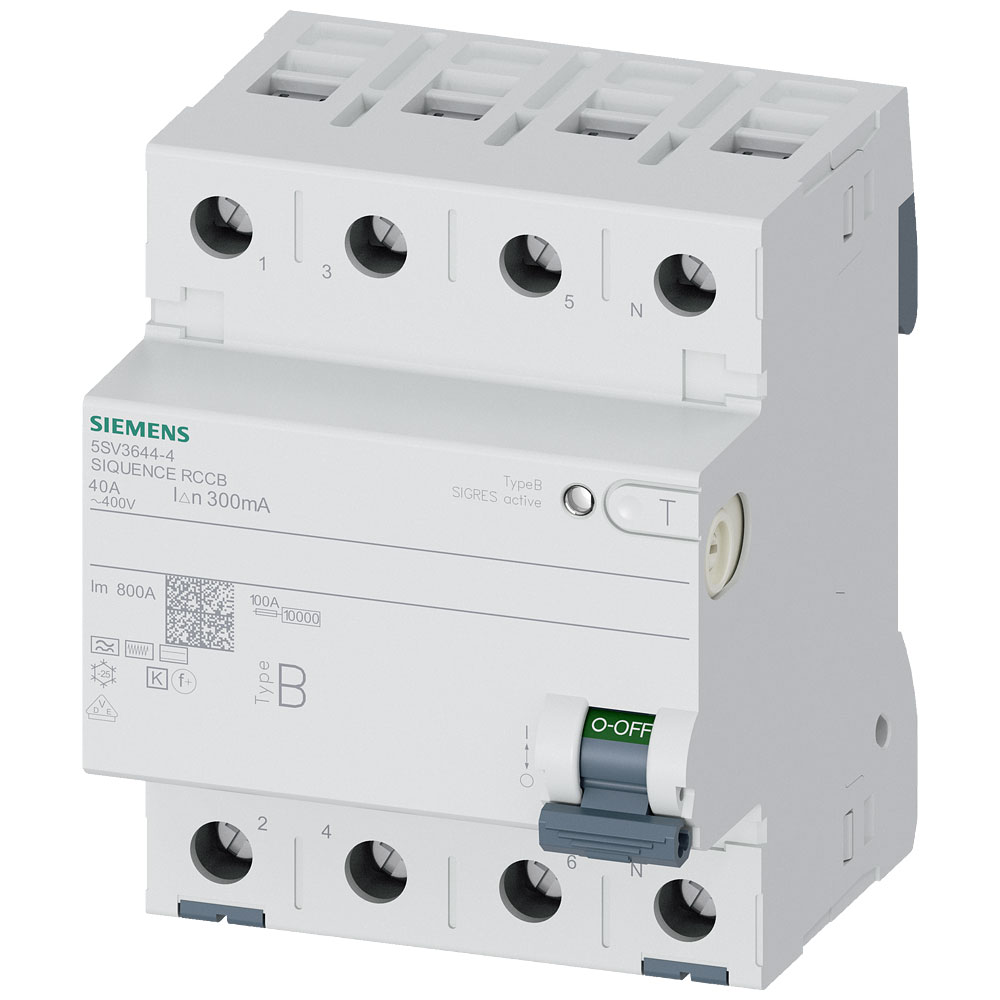

Image Representative of Range

Siemens 5SV36444 RCCB 4-pin 40A 300mA 400V protects against electric shock

Siemens
Order Code:

07-0470

Brand: Siemens MPN: 5SV36444 EAN-13: 4001869549071
Qty Unit Price (Ex VAT)
1+ £385.37
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
17 in stock, despatched in 4 working days

The Siemens 5SV36444 RCCB is a 4-pin residual current circuit breaker rated at 40 A and 0.3 A for use in 400 V systems. It provides protection against electrical leakage, enhancing safety in residential and commercial installations. Typical applications include safeguarding electrical circuits in buildings to prevent potential hazards.
Type RCCB
Additional equipment possible TRUE
Ambient temperature during operating -25 - 45°C
Built-in depth 70mm
Connectable conductor cross section multi-wired 0.75 - 35mm²
Connectable conductor cross section solid-core 0.75 - 35mm²
Current Ratng 0.3A
Degree of protection (IP) IP20
Depth 70mm
Differential current rating 0.3A
Dim (W x H x D) 72 x 90 x 70 mm
Explosion-proof false
Frequency 50/60 Hz
Height 90mm
Leakage current type B
Mounting method DIN rail
Number of Pins 4
Number of Poles 4
Pollution degree 2
Power loss 2.5W
RAL-number (similar) 7035
Rated current 40A
Rated fault current 0.3A
Rated impulse withstand voltage Uimp 6kV
Rated insulation voltage Ui 2000V
Rated voltage 400V
Release characteristics B
Selective protection FALSE
Short-circuit breaking capacity (Icw) 10kA
Short-time delayed tripping TRUE
Surge current capacity 3kA
Switch-off capacity 0.8kA
Voltage Rating 400V
Voltage type AC
Width 72mm
Width in number of modular spacings 4
With interlocking device TRUE
