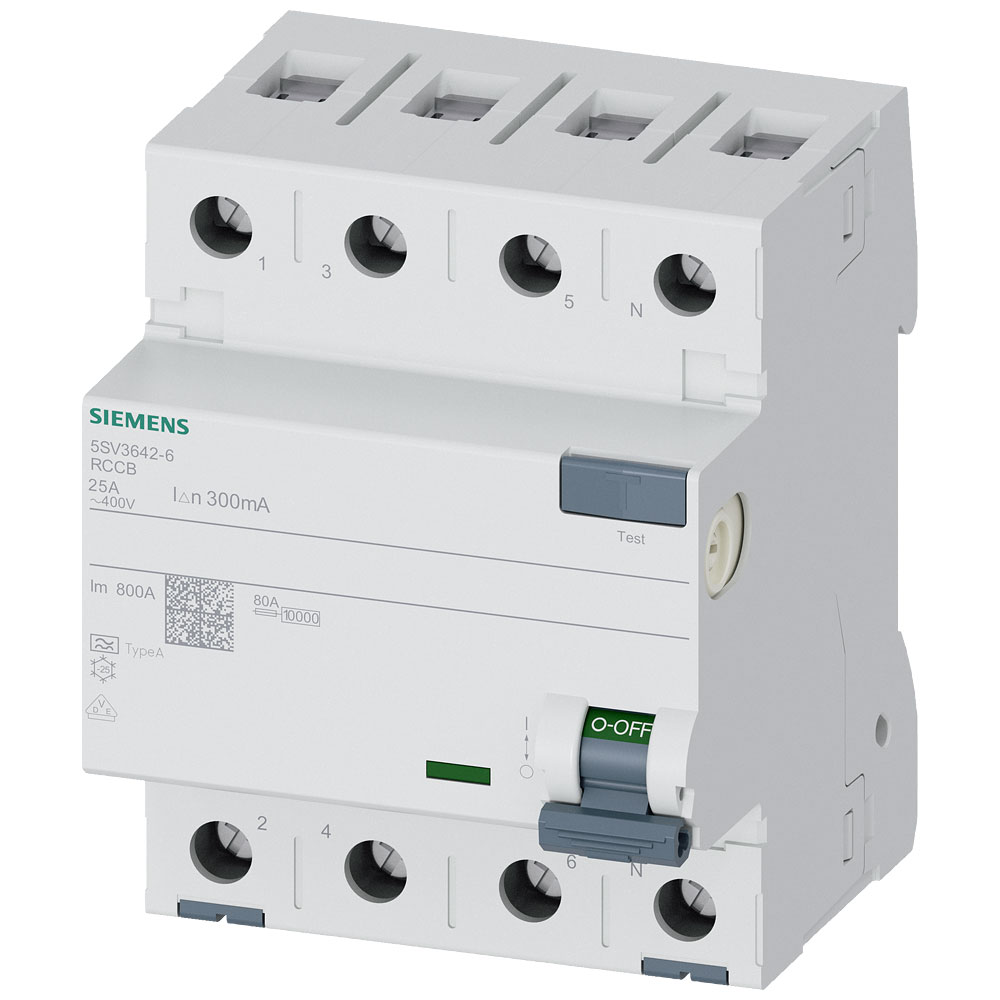

Siemens 5SV36426 SENTRON RCCB 4-pin 25 A 0.3 A 400 V touch protection

The Siemens 5SV36426 RCCB is a 4-pin residual current circuit breaker with a rating of 25 A and a sensitivity of 0.3 A, suitable for a voltage of 400 V. It is used to protect electrical circuits from potential faults and provide personal safety by disconnecting circuits in the event of an earth fault. Typical applications include residential, commercial, and industrial electrical installations.

Type	RCCB
Voltage Rating - AC	400V AC
No. of Poles	4
Tripping Characteristics	A Curve
Additional equipment possible	TRUE
Ambient temperature during operating	-25 - 45°C
Built-in depth	70mm
Connectable conductor cross section multi-wired	0.75 - 35mm²
Connectable conductor cross section solid-core	0.75 - 35mm²
Current Ratng	0.3A
Degree of protection (IP)	IP20
Depth	70mm
Differential current rating	0.3A
Dim	(W x H x D) 72 x 90 x 70 mm
Explosion-proof	false
Factory colour	Grey
Frequency	50 Hz
Height	90mm
Leakage current type	A
Misc Attribute	Design of the product: without delay; Mounting Type: DIN rail
Mounting method	DIN rail
Number of Pins	4
Number of Poles	4
Pollution degree	2
Power loss	0.7W
RAL-number (similar)	7035
Rated current	25A
Rated fault current	0.3A
Rated impulse withstand voltage Uimp	6kV
Rated insulation voltage Ui	2000V
Rated voltage	400V
Selective protection	FALSE
Short-circuit breaking capacity (Icw)	10kA
Short-time delayed tripping	FALSE
Surge current capacity	1kA
Switch-off Capacity	0.8kA
Voltage Rating	400V
Voltage type	AC
Weight	0
Width	72mm
Width in number of modular spacings	4
With interlocking device	TRUE
