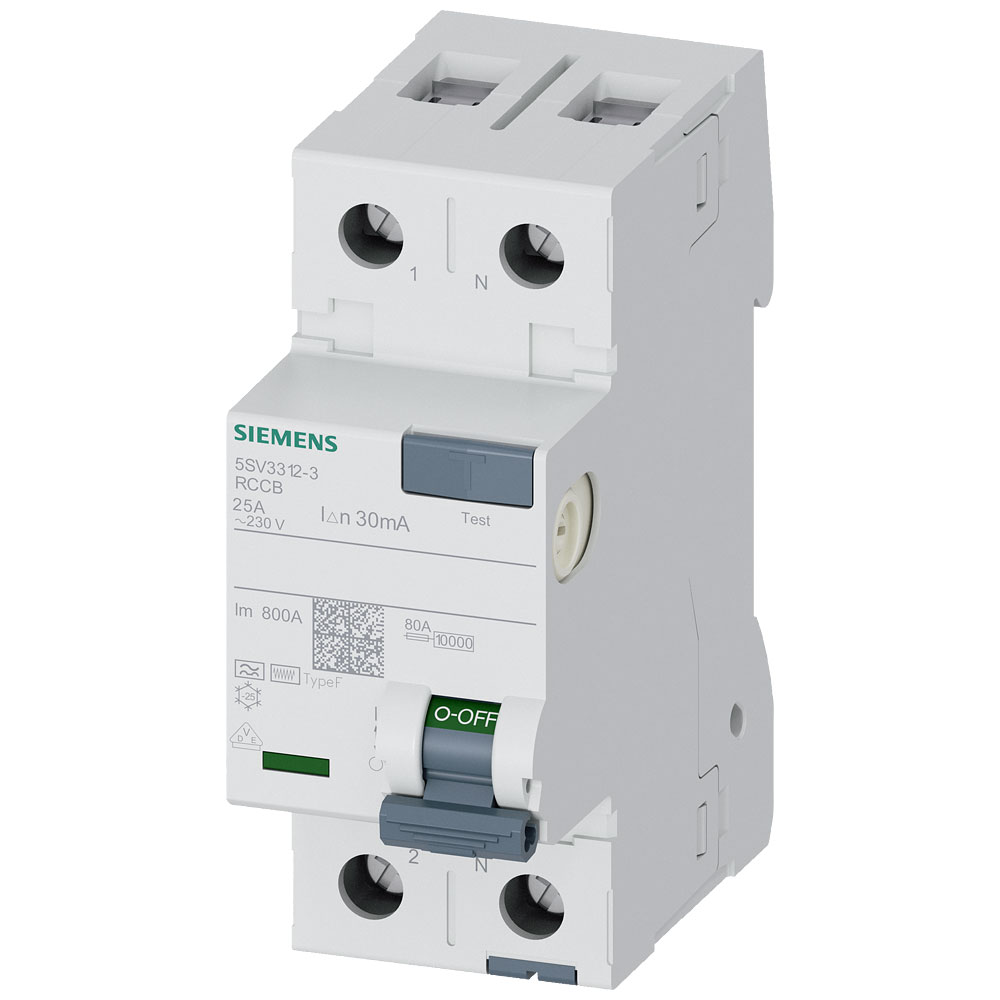

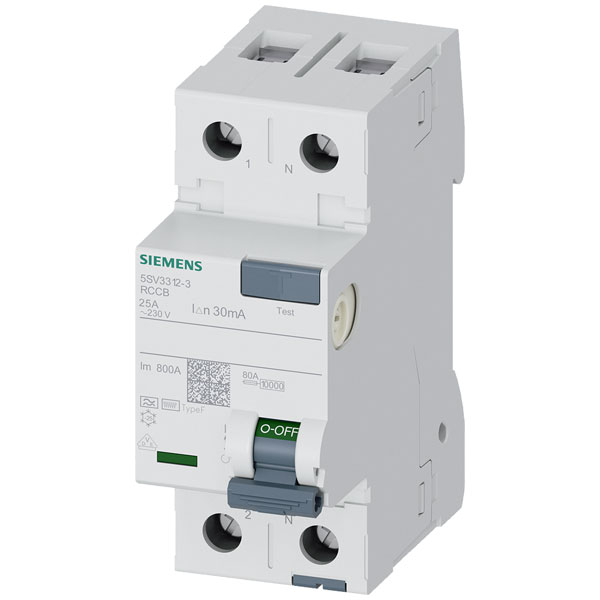

The Siemens 5SV33123 5SV3312-3 RCCB is a residual current circuit breaker designed to provide protection with a rated current of 25 A and a sensitivity of 0.03 A at 230 V. It ensures safety in electrical installations by preventing fault currents, making it essential for residential and commercial applications. Siemens is the manufacturer of this durable and reliable electrical protection device.
| Type |
RCCB |
| Voltage Rating - AC |
230V AC |
| Tripping Characteristics |
F |
| Additional equipment possible |
TRUE |
| Ambient temperature during operating |
-25 - 45°C |
| Built-in depth |
70mm |
| Connectable conductor cross section multi-wired |
0.75 - 35mm² |
| Connectable conductor cross section solid-core |
0.75 - 35mm² |
| Construction size (in accordance with DIN 43880) |
1 |
| Current Ratng |
0.03A |
| Degree of protection (IP) |
IP20 |
| Depth |
70mm |
| Differential current rating |
0.03A |
| Dim |
(W x H x D) 36 x 90 x 70 mm |
| Explosion-proof |
false |
| Frequency |
50 Hz |
| Height |
90mm |
| Leakage current type |
F |
| Mounting method |
DIN rail |
| Number of pins |
2 |
| Number of Poles |
2 |
| Pollution degree |
2 |
| Power loss |
0.8W |
| RAL-number (similar) |
7035 |
| Rated current |
25A |
| Rated fault current |
0.03A |
| Rated impulse withstand voltage Uimp |
6kV |
| Rated insulation voltage Ui |
2000V |
| Rated voltage |
230V |
| Selective protection |
FALSE |
| Short-circuit breaking capacity (Icw) |
10kA |
| Short-time delayed tripping |
TRUE |
| Surge current capacity |
3kA |
| Switch-off Capacity |
0.5kA |
| Voltage Rating |
230V |
| Voltage type |
AC |
| Width |
36mm |
| Width in number of modular spacings |
2 |
| With interlocking device |
TRUE |
