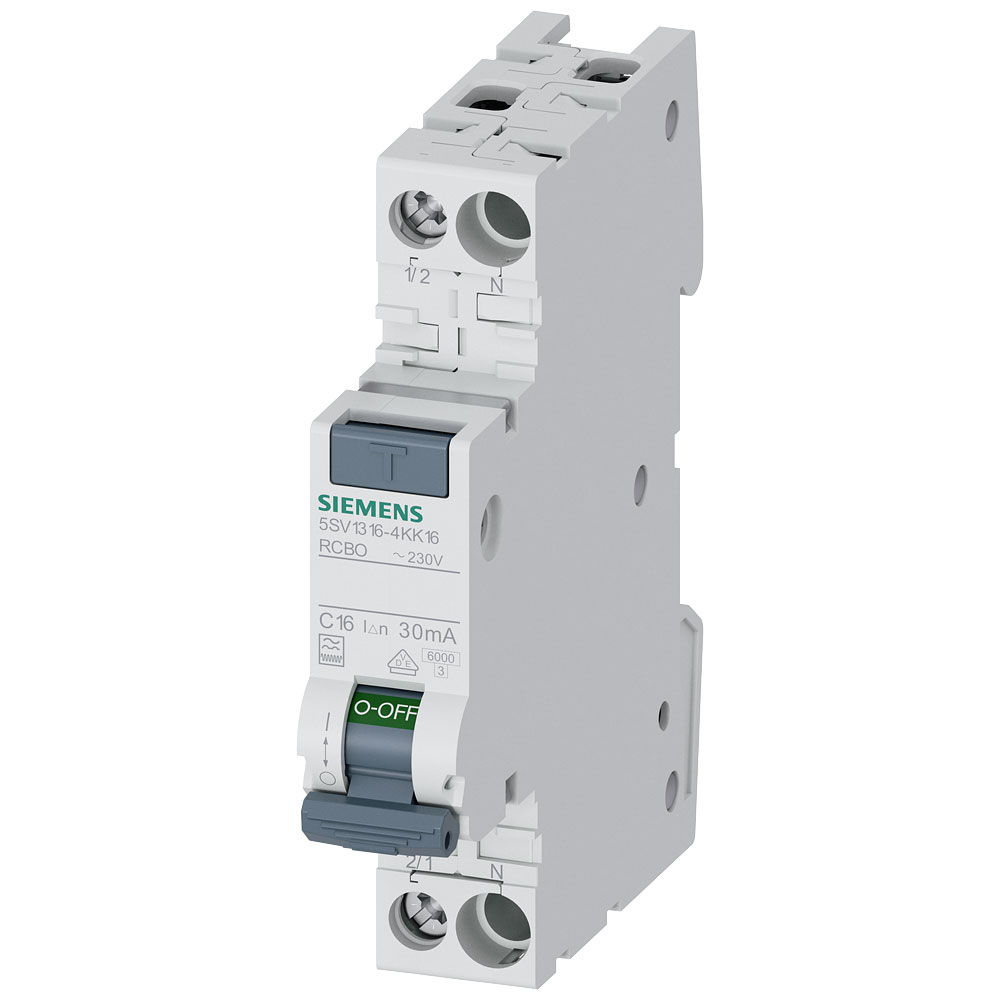

Siemens manufactures the 5SV13164KK16 RCBO, featuring a 16,000 mA rating, 0.03 A residual current, and 230 V operation. This compact device combines circuit breaker and residual current protection in a single unit, enhancing safety by preventing overloads and electrical leakage. It is commonly used in residential and commercial electrical installations to ensure reliable and efficient energy distribution.
| Type |
RCBO |
| Anti-nuisance tripping version |
TRUE |
| Built-in depth |
70mm |
| Concurrently switching neutral conductor |
TRUE |
| Current limiting class |
3 |
| Degree of protection (IP) |
IP20 |
| Depth |
70mm |
| Differential current rating |
0.03A |
| Dim |
(W x H x D) 18 x 90 x 70 mm |
| Disconnection characteristic |
Other |
| Height |
90mm |
| Leakage current type |
Other |
| Misc Attribute |
Super-resistant K |
| Nominal Current |
16000mA |
| Nominal current - rounded value |
16A |
| Nominal Voltage |
230V |
| Number of Poles |
1 |
| Number of poles (total) |
2 |
| Number of protected poles |
1 |
| Operating Voltage |
230V |
| Overvoltage category |
2 |
| Pollution degree |
2 |
| Rated Current |
16A |
| Rated fault current |
0.03A |
| Rated impulse withstand voltage Uimp |
4 |
| Rated insulation voltage Ui |
253V |
| Rated short-circuit breaking capacity according to EN 61009 |
6 |
| Rated short-circuit breaking capacity according to IEC 60947-2 |
10kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
6 |
| Rated Voltage |
230V |
| Release characteristic |
C |
| Release characteristics |
C |
| Surge current capacity |
3kA |
| Switch-off capacity |
6kA |
| Voltage type |
AC |
| Width |
18mm |
| Width in number of modular spacings |
1 |
| With interlocking device |
TRUE |
