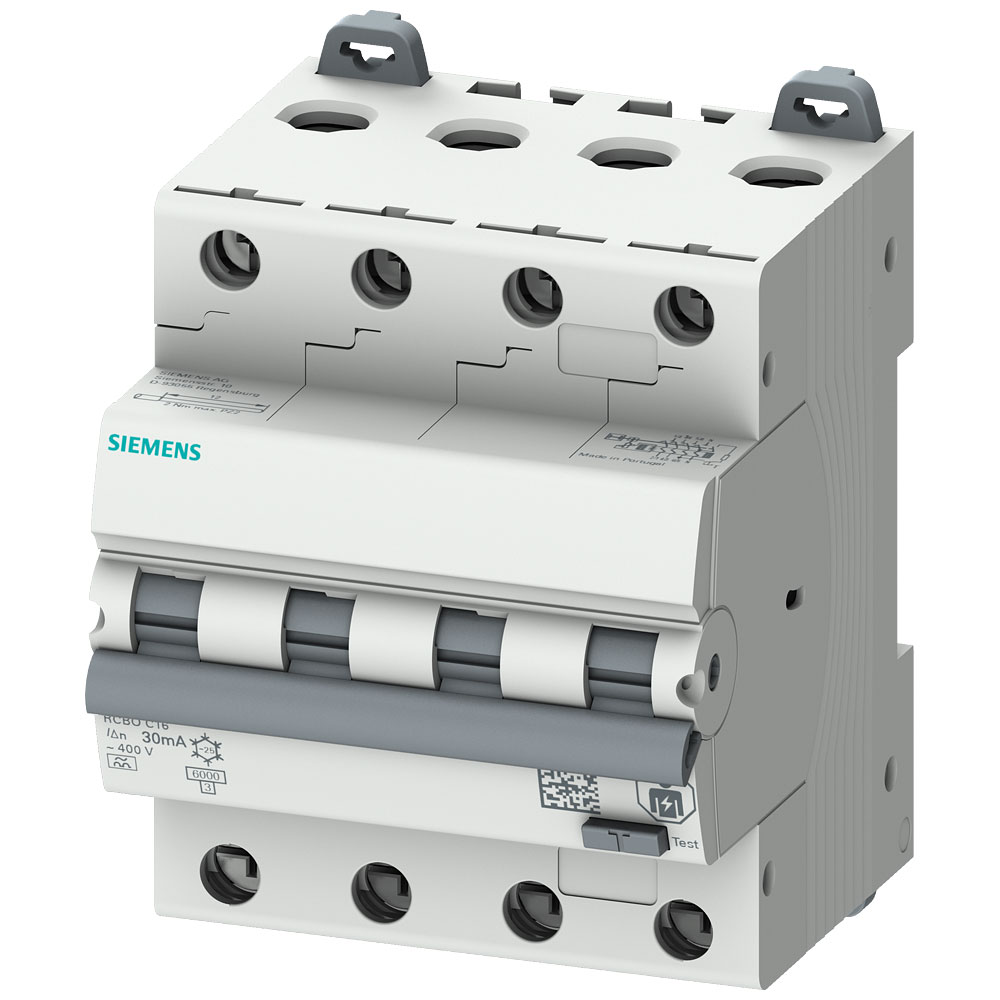

The Siemens RCBO, model 5SU13466FP16, combines overcurrent and earth fault protection with a fuse size of 3, 4-pin, 16 A, and a sensitivity of 0.03 A. This device is ideal for safeguarding electrical circuits in residential and commercial buildings. Its compact design ensures easy installation in modern distribution boards.
| Type |
RCBO |
| Ambient temperature during operating |
N/A |
| Anti-nuisance tripping version |
true |
| Built-in depth |
70mm |
| Concurrently switching neutral conductor |
TRUE |
| Connectable conductor cross section multi-wired |
1 - 35mm² |
| Connectable conductor cross section solid-core |
1 - 35mm² |
| Current limiting class |
3 |
| Current Ratng |
0.03A |
| Degree of protection (IP) |
IP20 |
| Depth |
72mm |
| Differential current rating |
0.03A |
| Dim |
(W x H x D) 72 x 85 x 72 mm |
| Disconnection characteristic |
Undelayed |
| Flush-mounted installation |
true |
| Frequency |
N/A |
| Fuse Size |
3 |
| Height |
85mm |
| Insulation class |
III |
| Leakage current type |
A |
| Misc Attribute |
without hesitation |
| Number of Pins |
4 |
| Number of poles (total) |
4 |
| Number of protected poles |
4 |
| Overvoltage category |
2 |
| Pollution degree |
3 |
| Power loss |
N/A |
| Rated current |
16A |
| Rated fault current |
0.03A |
| Rated impulse withstand voltage Uimp |
4 |
| Rated insulation voltage Ui |
500V |
| Rated short-circuit breaking capacity according to EN 61009 |
6 |
| Rated short-circuit breaking capacity according to IEC 60947-2 |
6kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
6 |
| Rated voltage |
400V |
| Release characteristic |
B |
| Release characteristics |
B |
| Surge current capacity |
0.25kA |
| Voltage Rating |
400V |
| Voltage type |
AC |
| Width |
72mm |
| Width in number of modular spacings |
4 |
| With interlocking device |
true |
