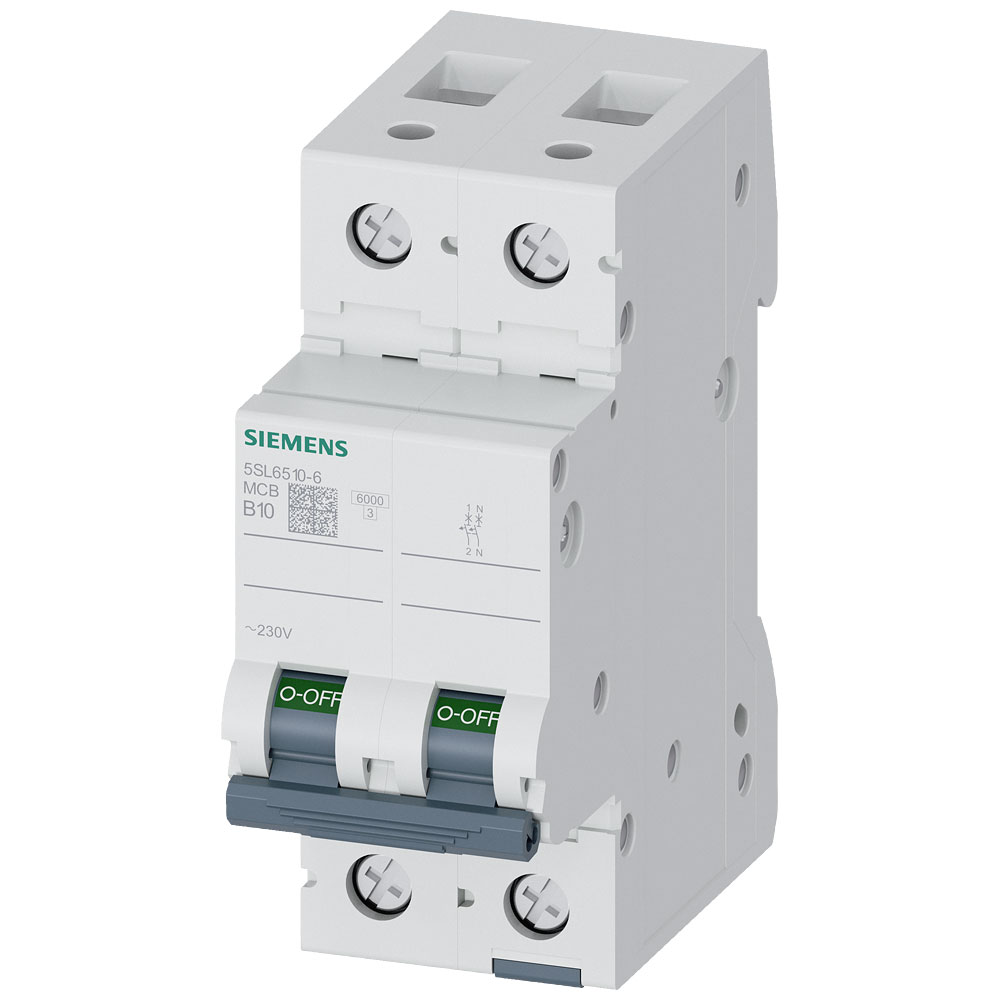

Siemens manufactures the 5SL65106 5SL6510-6 circuit breaker, rated at 10 A and 230 V. This device is a miniature circuit breaker suitable for overcurrent protection in electrical installations. It is typically used in machine and distributor installations for automatic electrical protection.
| Type |
Circuit breaker |
| Additional equipment possible |
TRUE |
| Built-in depth |
70mm |
| Compatible with (details) |
SENTRON |
| Concurrently switching neutral conductor |
TRUE |
| Current limiting class |
3 |
| Degree of protection (IP) |
IP20 |
| Depth |
76mm |
| Dim |
(W x H x D) 36 x 90 x 76 mm |
| Factory colour |
Grey |
| Frequency |
50-60MHz |
| Height |
90mm |
| Nominal current |
10A |
| Nominal current - rounded value |
10A |
| Nominal voltage |
230V |
| Number of pins |
2 |
| Number of poles (total) |
2 |
| Number of protected poles |
1 |
| Overvoltage category |
3 |
| Pollution degree |
2 |
| Rated Current |
10A |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V |
6kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V |
6kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V |
6kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V |
6kA |
| Rated voltage |
230V |
| Release characteristic |
B |
| Release characteristics |
B |
| RoHS-compliant |
Yes |
| Voltage type |
AC |
| Width |
36mm |
| Width in number of modular spacings |
2 |
