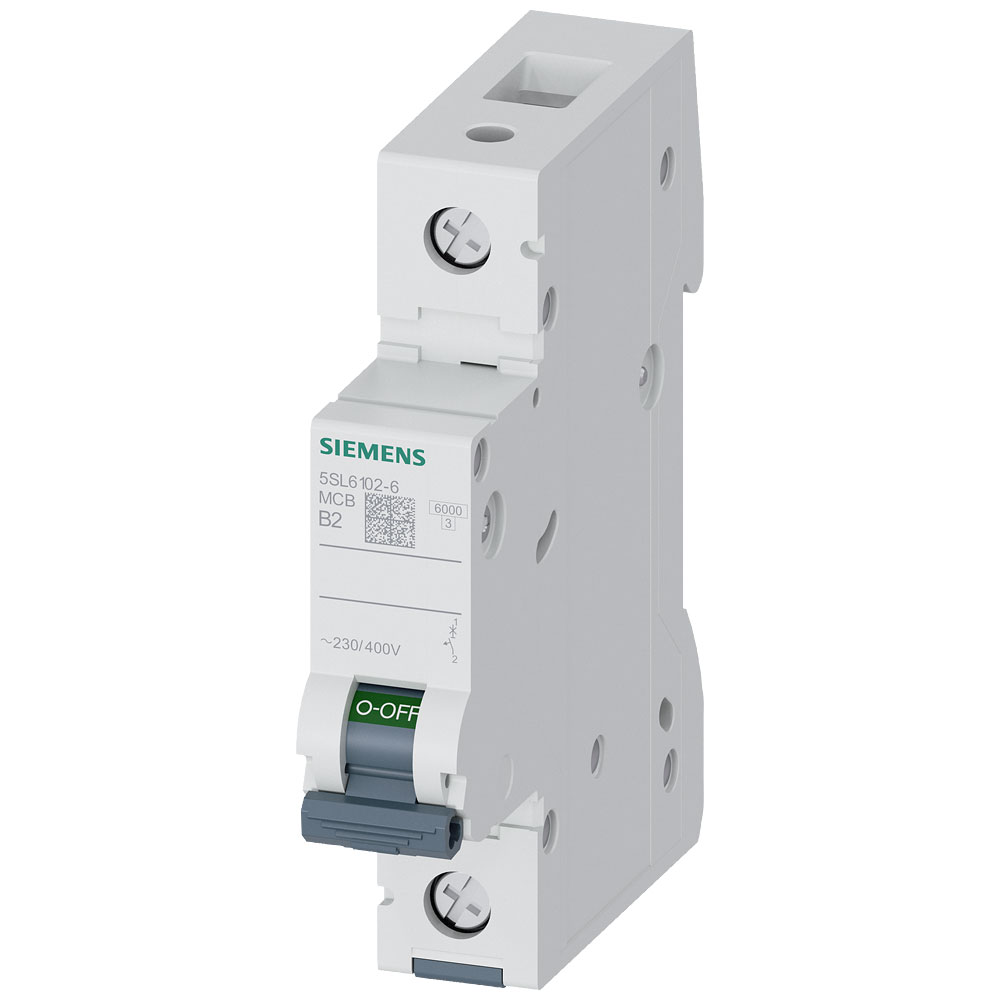

Siemens 5SL61026 SENTRON Circuit Breaker 2A 1-pole 230/400V 6kA

Image Representative of Range

Siemens 5SL61026 SENTRON Circuit Breaker 2A 1-pole 230/400V 6kA

Siemens
Order Code:

07-0366

Brand: Siemens MPN: 5SL61026 EAN-13: 4001869470603
Qty Unit Price (Ex VAT)
1+ £9.90
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Siemens 5SL61026 circuit breaker, rated for 2 A, is designed for reliable protection in electrical systems. Manufactured by Siemens, it offers high-quality performance with a focus on safety and durability. This circuit breaker is commonly used in residential and commercial electrical installations to prevent overcurrent damage.
Type Circuit breaker
Additional equipment possible TRUE
Ambient temperature during operating -25 - 45°C
Built-in depth 70mm
Concurrently switching neutral conductor FALSE
Connectable conductor cross section multi-wired 0.75 - 25mm²
Connectable conductor cross section solid-core 0.75 - 25mm²
Current limiting class 3
Current Ratng 2A
Degree of protection (IP) IP20
Depth 76mm
Dim (W x H x D) 18 x 90 x 76 mm
Explosion-proof false
Flush-mounted installation false
Frequency 50-60MHz
Height 90mm
Misc Attribute Line safety switch 5SL
Number of Poles 1
Number of poles (total) 1
Number of protected poles 1
Operating class 3
Overvoltage category 3
Pollution degree 2
Power loss N/A
Rated current 2A
Rated impulse withstand voltage Uimp N/A
Rated insulation voltage Ui N/A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 6kA
Rated voltage 400V
Release characteristic B
Release characteristics B
Voltage Rating 400V
Voltage type AC
Width 18mm
Width in number of modular spacings 1
