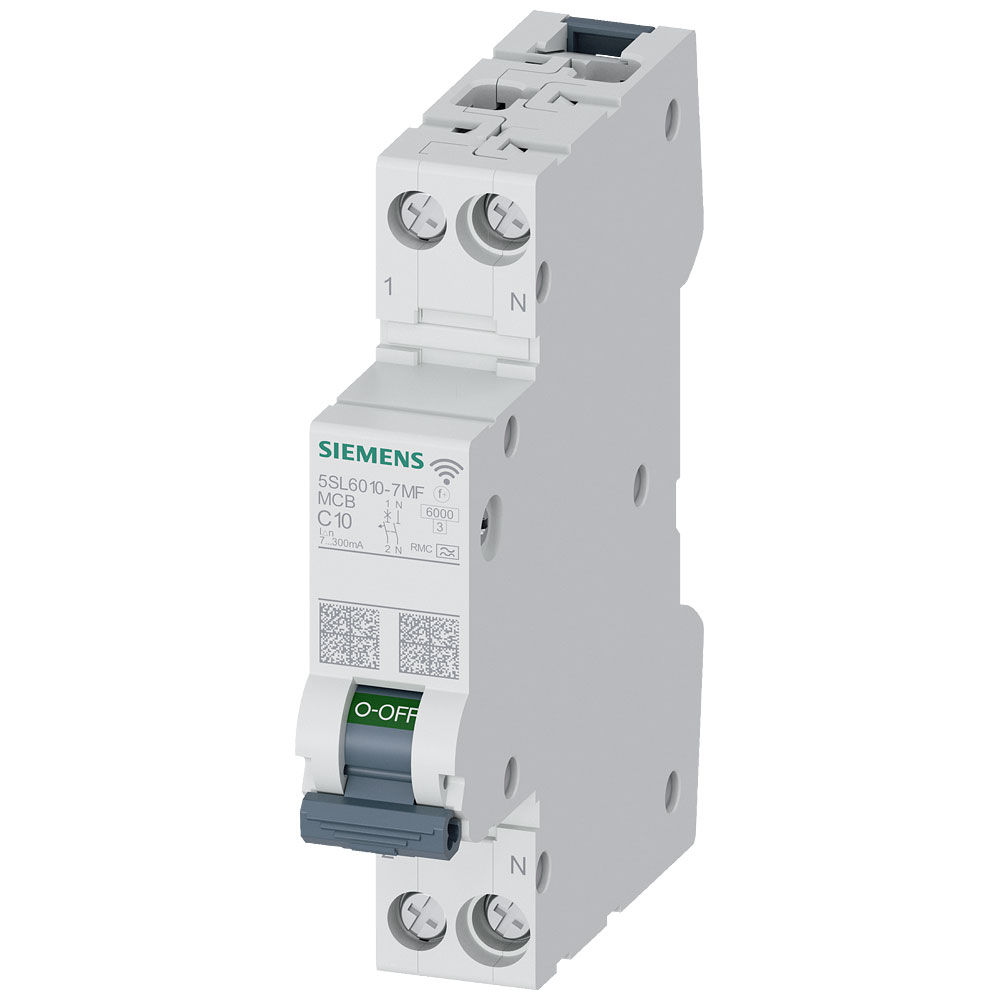

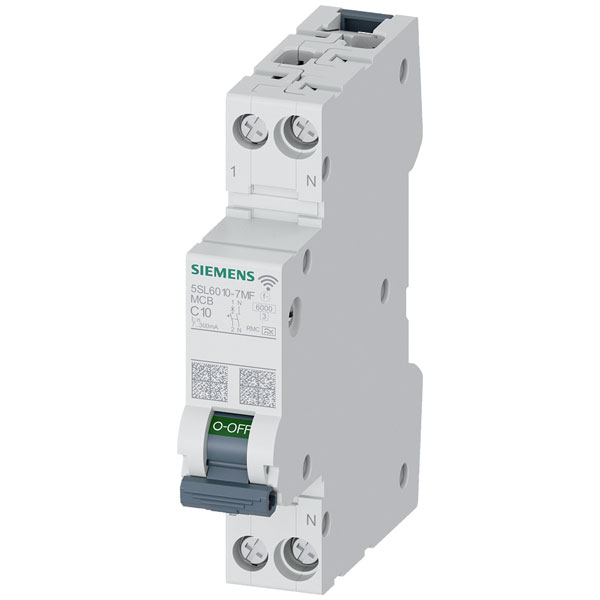

The Siemens 5SL60107MF circuit breaker, a 2-pin device, ensures reliable electrical safety and protection. With robust construction, it is ideal for safeguarding household and commercial circuits. Typical applications include preventing overloads and short circuits in electrical installations.
| Type |
Circuit breaker |
| Additional equipment possible |
true |
| Ambient temperature during operating |
-40 - 70°C |
| Built-in depth |
70mm |
| Concurrently switching neutral conductor |
true |
| Connectable conductor cross section multi-wired |
0.75 - 16mm² |
| Connectable conductor cross section solid-core |
0.75 - 16mm² |
| Current limiting class |
3 |
| Current Ratng |
10A |
| Degree of protection (IP) |
IP20 |
| Depth |
75.4mm |
| Dim |
(W x H x D) 17.6 x 89.8 x 75.4 mm |
| Explosion-proof |
false |
| Flush-mounted installation |
false |
| Frequency |
N/A |
| Height |
89.8mm |
| Number of Pins |
2 |
| Number of poles (total) |
2 |
| Number of protected poles |
N/A |
| Overvoltage category |
3 |
| Pollution degree |
2 |
| Power loss |
N/A |
| Rated current |
10A |
| Rated impulse withstand voltage Uimp |
4 |
| Rated insulation voltage Ui |
285V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V |
6kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V |
6kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V |
N/A |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V |
N/A |
| Rated voltage |
230V |
| Release characteristic |
C |
| Release characteristics |
C |
| Switch-off capacity |
10A |
| Voltage Rating |
230V |
| Voltage type |
AC |
| Width |
17.6mm |
| Width in number of modular spacings |
1 |
