Siemens 5SL60066MF SENTRON Circuit Breaker 1+N pole 6A B type 230V AC

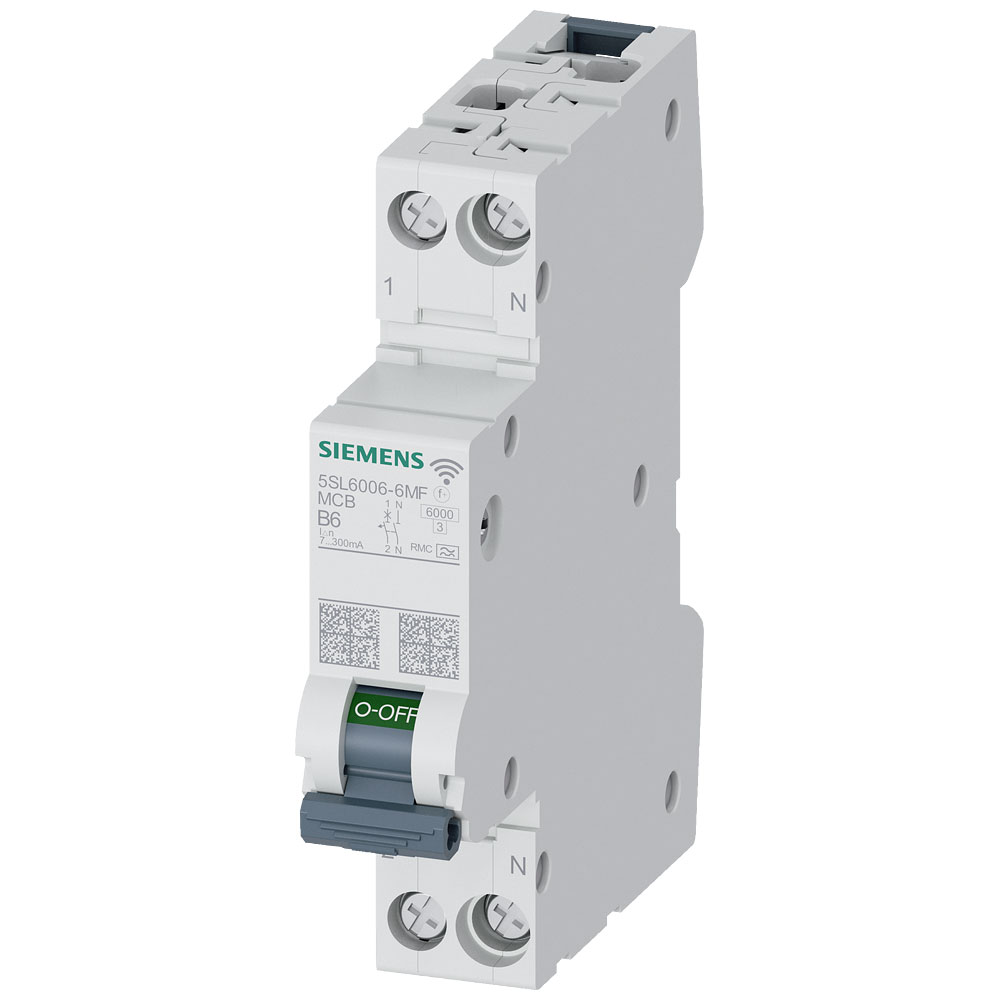

Image Representative of Range

Siemens 5SL60066MF SENTRON Circuit Breaker 1+N pole 6A B type 230V AC

Siemens
Order Code:

07-0357

Brand: Siemens MPN: 5SL60066MF EAN-13: 4047624192519
Qty Unit Price (Ex VAT)
1+ £333.24
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 14 days

Siemens 5SL60066MF circuit breaker is a 2-pin device designed for superior electrical safety. It efficiently protects electrical circuits from overloads and short-circuits in residential and commercial settings. The circuit breaker is ideal for use in power distribution systems, offering reliable performance and protection.
Type Circuit breaker
Additional equipment possible true
Ambient temperature during operating -40 - 70°C
Built-in depth 70mm
Concurrently switching neutral conductor true
Connectable conductor cross section multi-wired 0.75 - 16mm²
Connectable conductor cross section solid-core 0.75 - 16mm²
Current limiting class 3
Current Ratng 6A
Degree of protection (IP) IP20
Depth 75.4mm
Dim (W x H x D) 17.6 x 89.8 x 75.4 mm
Explosion-proof false
Flush-mounted installation false
Frequency N/A
Height 89.8mm
Number of Pins 2
Number of poles (total) 2
Number of protected poles N/A
Overvoltage category 3
Pollution degree 2
Power loss N/A
Rated current 6A
Rated impulse withstand voltage Uimp 4
Rated insulation voltage Ui 285V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V N/A
Rated voltage 230V
Release characteristic B
Release characteristics B
Switch-off capacity 6A
Voltage Rating 230V
Voltage type AC
Width 17.6mm
Width in number of modular spacings 1
