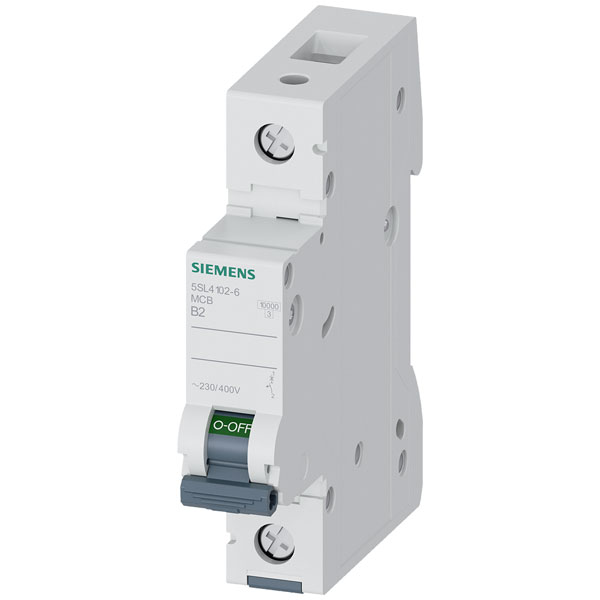

Siemens 5SL41026 Sentinel Circuit Breaker 1-pin 2A 230V 10kA B type

The Siemens 5SL41026 circuit breaker is a 1-pin device rated for 2 A and operates at 230 V/400 V. It is designed for reliable overcurrent protection in both residential and commercial electrical systems. Typical applications include safeguarding circuits from overloads and short circuits.

Type	Circuit breaker
Voltage Rating - AC	230V AC
No. of Poles	1
Tripping Characteristics	B Curve
Additional equipment possible	TRUE
Ambient temperature during operating	-25 - 55°C
Built-in depth	70mm
Compatible with (details)	SENTRON
Concurrently switching neutral conductor	FALSE
Connectable conductor cross section multi-wired	0.75 - 25mm²
Connectable conductor cross section solid-core	0.75 - 25mm²
Current limiting class	3
Current Ratng	2A
Degree of protection (IP)	IP20
Depth	76mm
Dim	(W x H x D) 18 x 90 x 76 mm
Explosion-proof	false
Factory colour	Grey
Flush-mounted installation	false
Frequency	50-60MHz
Height	90mm
Number of pins	1
Number of Poles	1
Number of poles (total)	1
Number of protected poles	1
Operating class	230/400 V
Overvoltage category	3
Pollution degree	2
Power loss	N/A
Rated current	2A
Rated impulse withstand voltage Uimp	N/A
Rated insulation voltage Ui	N/A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	10kA
Rated voltage	400V
Voltage Rating	400V
Voltage type	AC
Width	18mm
Width in number of modular spacings	1
