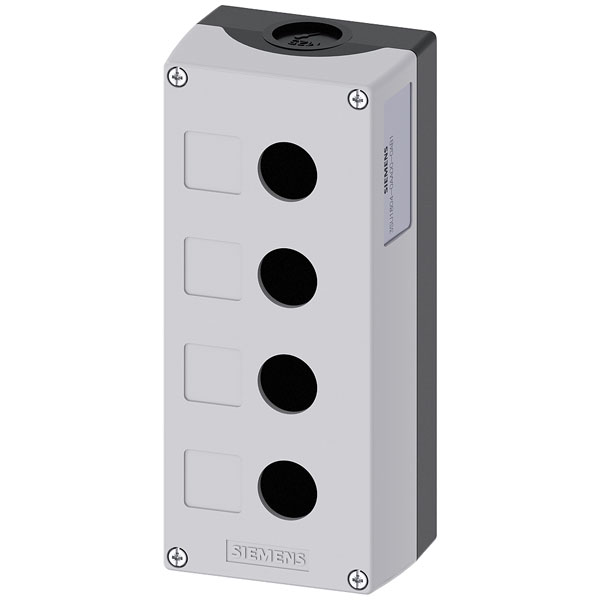

Siemens 3SU1804-0AA00-0AB1 SIRIUS ACT housing 4 slots grey plastic

The Siemens 3SU1804-0AA00-0AB1 enclosure, measuring 194 x 85 x 64 mm, features four installation slots in a blank grey design. Manufactured by Siemens, this durable enclosure is well-suited for protecting electrical components in various industrial settings. It is ideal for applications requiring reliable housing for control and signalling devices.

IP Rating	IP67/IP69K
Type	Enclosure
Colour	Grey
Colour housing cover	Grey
Compatible with (details)	Control Devices
Construction type housing	Surface mounting housing
Degree of protection (NEMA)	Other
Depth	64mm
Diameter openings	22.3mm
Height	194mm
Housing Material	Plastic
Housing material quality	N/A
Length	194mm
Material	Plastic
Maximum Temperature	+70°C
Min. temperature	-25°C
Misc Attribute 1	With recess for identification plate
Misc Attribute 2	3SU1804-0AA00-0AB1
Number of command positions	4
Print motif	Blank
Recess Diameter	22mm
Size/ Dimensions	(L x W x H) 194 x 85 x 64 mm
Switch/button features	4 installation slots
Width	85mm
