Siemens 3SU12002PS101AA0 Illuminated pushbutton amber metal 230V AC

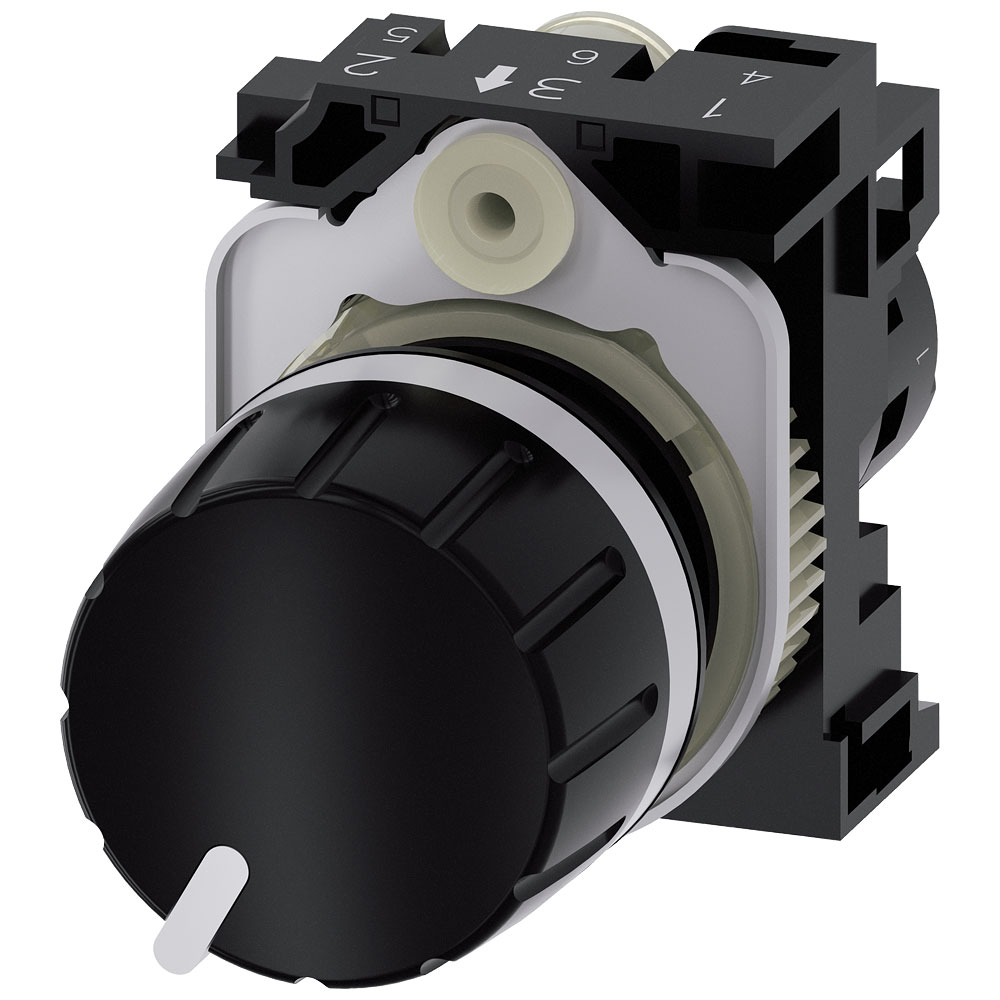

The Siemens single turn rotary potentiometer, model 3SU12002PS101AA0, features a 10 kO resistance. Its straightforward design is suitable for applications requiring variable voltage control, such as in audio equipment or industrial automation systems. Siemens is known for its reliable and high-quality electronic components.

Type	Single turn rotary pot
(Ø)	22.3mm
Axle length	46mm
Axle Type	Round
Colour	Multicolour
Connection	Screws
Degree of protection (IP)	Other
Degree of protection (NEMA)	Other
Dim	(Ø x H) 22.3 mm x 40 mm
Electrical Angle	280°
Height	40mm
Hole Diameter	22.3mm
IP Rating	IP20
Maximum Temperature	+70°C
Min. temperature	-25°C
Misc Attribute 1	3SU1200-2PS10-1AA0
Misc Attribute 2	Compact device
Number of revolutions	280 - 280
Power Consumption	1W
Resistance	10kΩ
Tolerance ±	10%
Torque (max.)	1Nm
Type of electric connection	N/A
Width	30mm
