Siemens 3SU12002PR101AA0 pushbutton 22mm round plastic yellow raised

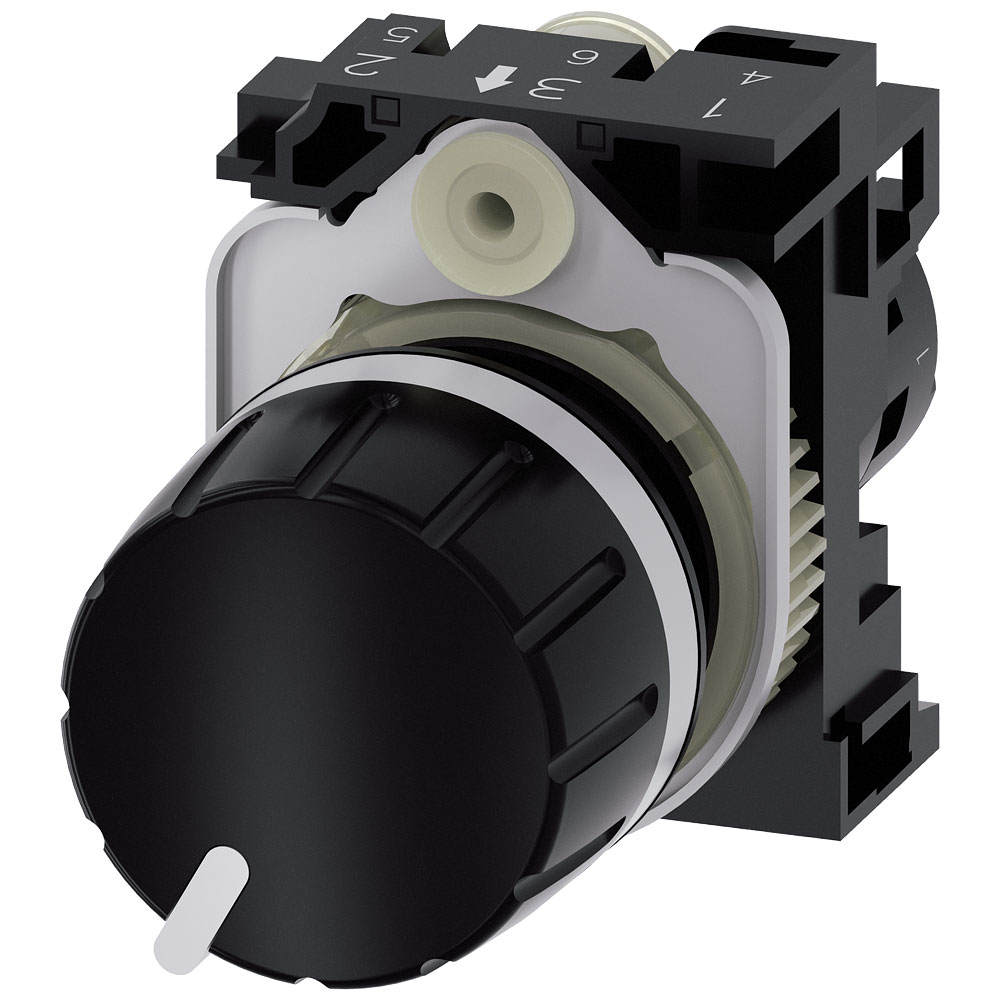

The Siemens 3SU1200-2PR10-1AA0 is a single turn rotary potentiometer with a resistance of 4.7 kO. This variable resistor is useful for applications requiring precise adjustment of electrical parameters. It is typically employed in control panels and instrumentation for fine-tuning voltage or current settings.

Type	Single turn rotary pot
(Ø)	22.3mm
Axle length	46mm
Axle Type	Round
Colour	Multicolour
Connection	Screws
Degree of protection (IP)	Other
Degree of protection (NEMA)	Other
Dim	(Ø x H) 22.3 mm x 40 mm
Electrical Angle	280°
Height	40mm
Hole Diameter	22.3mm
IP Rating	IP20
Maximum Temperature	+70°C
Min. temperature	-25°C
Misc Attribute 1	3SU1200-2PR10-1AA0
Misc Attribute 2	Compact device
Number of revolutions	280 - 280
Power Consumption	1W
Resistance	4.7kΩ
Tolerance ±	10%
Torque (max.)	1Nm
Type of electric connection	N/A
Width	30mm
