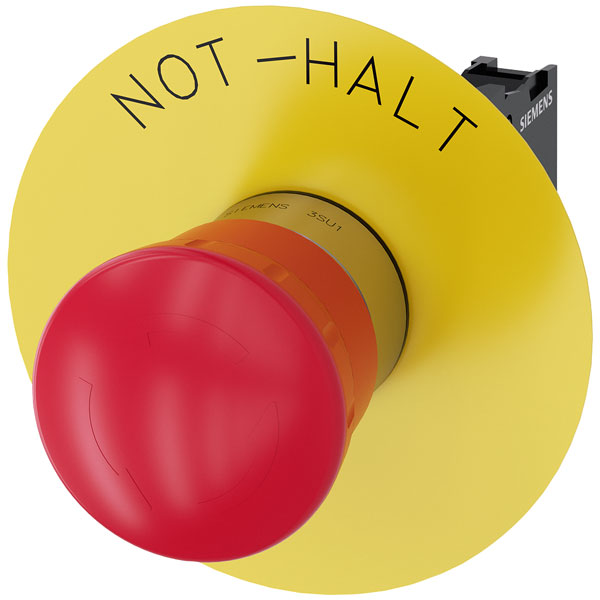

Siemens 3SU11501HB201CH0 SIRIUS ACT kill Switch red 40mm IP69K rotary release

The Siemens 3SU1150-1HB20-1CH0 is a glossy steel front ring kill switch suitable for emergency power off applications. This IP69K-rated switch, operating at 500 V with a single breaker, ensures reliable performance in harsh environments. It is typically used in industrial settings for emergency cut-off operations.

Type	Kill switch
IP Rating	IP67/IP69K
Button Diameter	40mm
Colour button	Red
Colour front ring	N/A
Connection	Screws
Construction type lens	N/A
Contact Configuration	1 breaker
Country of origin	Germany
Degree of protection (NEMA)	Other
Depth	95mm
Diameter	7.5cm
Factory colour	Red
Functions	latch
Height opening	46.4mm
Hole Diameter	22.3mm
Lighting Type	None
Material	Metal, Plastic
Material front ring	N/A
Maximum Temperature	+70°C
Min. temperature	-25°C
Misc Attribute	3SU1150-1HB20-1CH0
Nominal Voltage	500V
Number of command positions	1
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	0
Number of Poles	0
Package depth	120mm
Package height	40mm
Package width	50mm
Print motif	EMERGENCY STOP
Product colour	Red, Yellow
Recess Diameter	22mm
Shape	Round
Spring-return	FALSE
Suitable for lighting	FALSE
Supply voltage lamp	N/A
Switching function latching	FALSE
Transparent	N/A
Type of button	Mushroom
Type of electric connection	N/A
Unlocking mechanism	Turn
Voltage	500 V
Width opening	75mm
With front ring	FALSE
