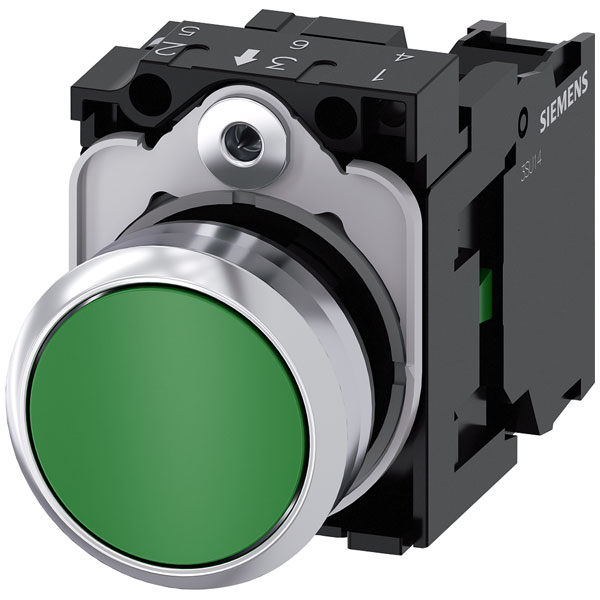

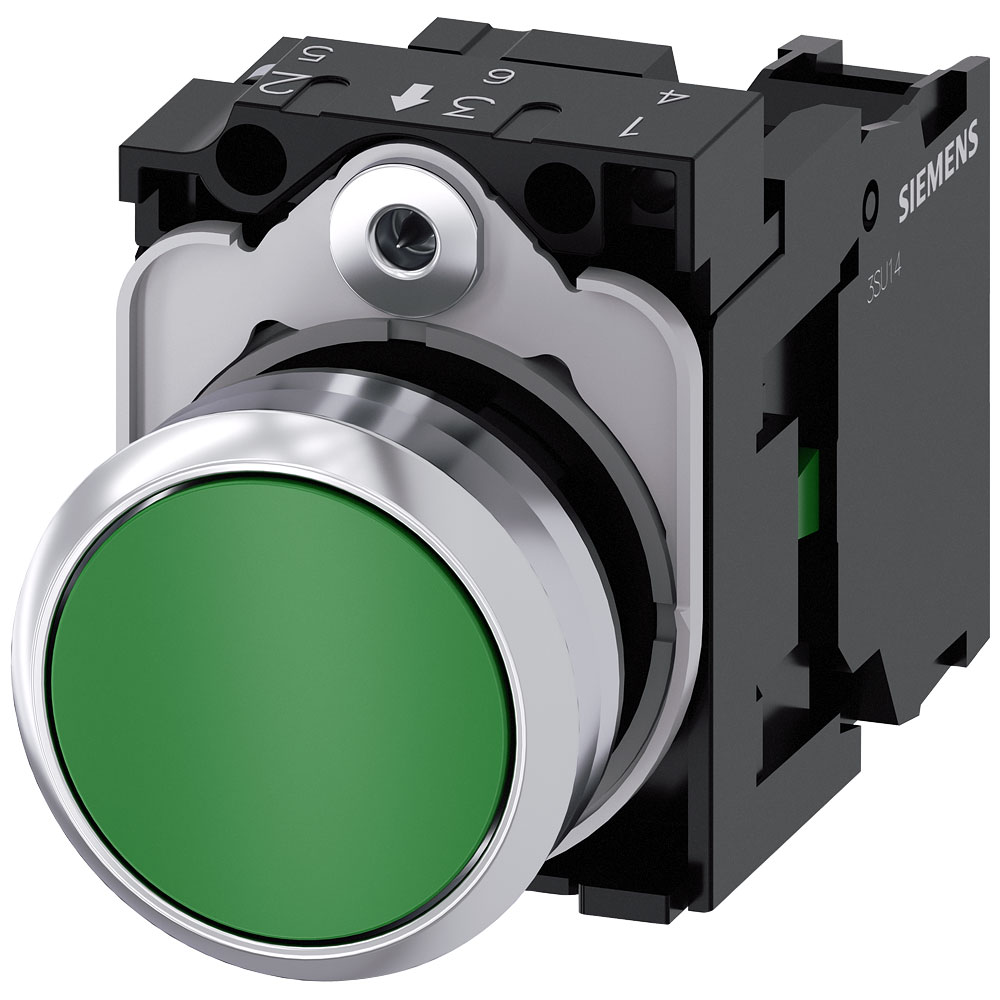

Siemens 3SU11500AB401BA0 SIRIUS ACT pushbutton green metal 22mm round

The Siemens 3SU1150-0AB40-1BA0 is a green pushbutton with a glossy steel front ring designed for efficient and reliable switching tasks. It is typically used in industrial control panels for activating machine operations or processes. This high-quality component is suitable for both new installations and upgrades in existing systems.

Switch Function	1 maker
Type	Pushbutton
IP Rating	IP67/IP69K
Colour button	Green
Colour front ring	Chrome
Connection	Screws
Construction type lens	N/A
Contact Configuration	1 x Off/(On)
Degree of protection (NEMA)	Other
Depth	60.7mm
Factory colour	Green
Height	40mm
Height opening	11mm
Hole Diameter	22.3mm
Lighting Type	None
Material	Metal, Plastic
Material front ring	Plastic
Maximum Temperature	+70°C
Min. temperature	-25°C
Misc Attribute	3SU1150-0AB40-1BA0
Number of command positions	1
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	1
Package depth	153mm
Package height	37mm
Package width	106mm
Print motif	None
Product colour	Black, Green, Silver
Recess Diameter	22mm
Shape	Round
Spring-return	TRUE
Suitable for lighting	FALSE
Supply voltage lamp	N/A
Switching function latching	FALSE
Switching Voltage	500V
Transparent	N/A
Type of button	Flat
Type of electric connection	N/A
Voltage	500 V
Width	30mm
Width opening	29.5mm
With front ring	TRUE
