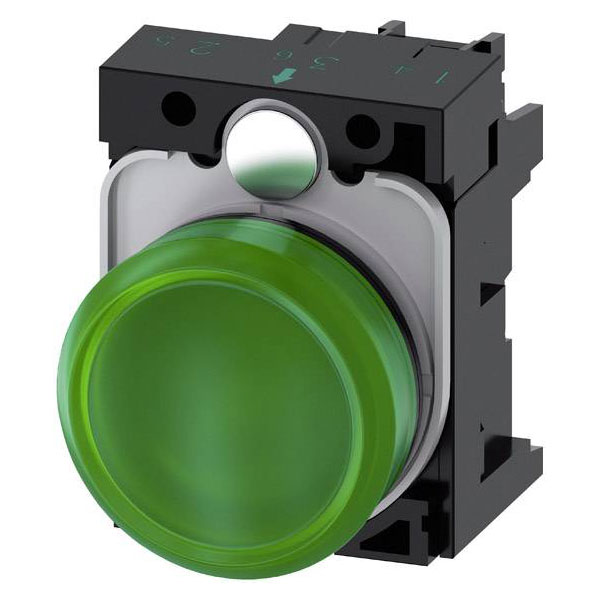

Siemens 3SU11026AA401AA0 SIRIUS ACT indicator light green 24V 22mm

The Siemens 3SU1102-6AA40-1AA0 is a green indicator light designed for 24 V AC/DC applications. It provides a clear visual signal and is ideal for use in control panels and other industrial environments. This product is commonly used for status indication in machinery and automated systems.

Type	Indicator light
Lamp/Lens Colour	Green
(Ø)	29.45mm
Colour front ring	Other
Colour lens	N/A
Connection	Screws
Construction type lens	N/A
Degree of protection (IP)	IP67/IP69K
Degree of protection (NEMA)	Other
Dimensions	(Ø x H) 29.45 mm x 40 mm
Height	40mm
Height opening	11.799999999mm
Hole Diameter	22.3mm
Light bulb included	Yes
Material front ring	Other
Max. temperature	+70°C
Min. temperature	-25°C
Misc Attribute 1	Activation/message element
Misc Attribute 2	3SU1102-6AA40-1AA0
Number of indicator lights	1
Panel Cutout Size	22.3mm
Rated operating voltage Ue	24 - 24V
Recess Diameter	22mm
Switch/button features	planar
Type of electric connection	N/A
Type of lamp socket	Other
Type of lens	N/A
Voltage type	AC/DC
Width	30mm
Width opening	29.5mm
With front ring	FALSE
With light source	TRUE
