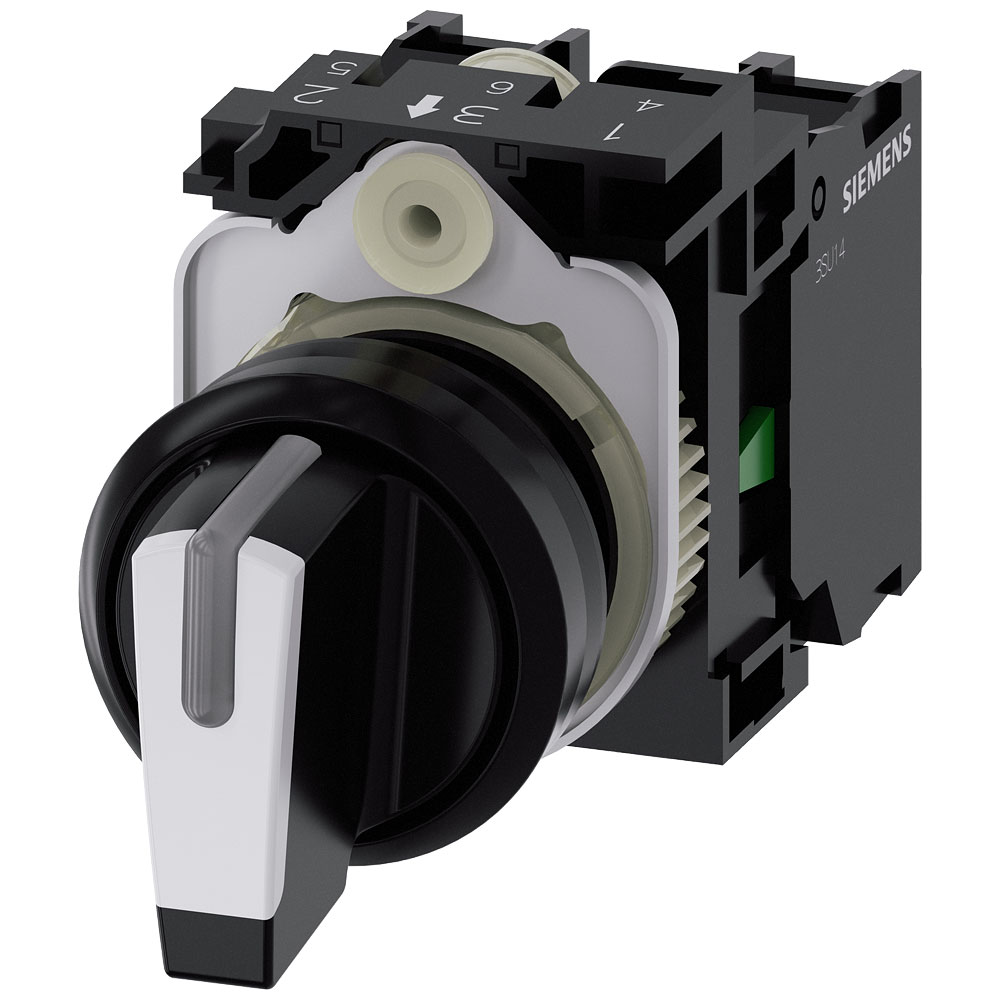

Siemens 3SU11002BL601NA0 SIRIUS ACT toggle Switch 22mm 3 positions

The Siemens 3SU11002BL601NA0 is a knob switch featuring a black and white PVC front ring designed for intuitive control with a 2 x 45° operation angle. Its robust construction makes it suitable for industrial applications, particularly in control panels and machinery. Siemens ensures reliable performance in ergonomic switchgear solutions.

Type	Knob
Colour	White
Colour button	White
Colour front ring	Black
Contact Type	2 makers
Degree of protection (IP)	IP67/IP69K
Degree of protection (NEMA)	Other
Dim	(W x H) 32.3 mm x 40 mm
Durability	1000000
Electrical lifespan	10000000
Functions	latch
Height	40mm
Height opening	28.8mm
Hole Diameter	22.3mm
IP Rating	IP66, IP67, IP69K
Light bulb included	No
Lighting Type	Spot lighting
Material front ring	Plastic
Misc Attribute	3SU1100-2BL60-1NA0
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	2
Number of Switch Positions	3
Power loss	N/A
Print motif	Arrow symbol
Recess Diameter	22mm
Shape	Round
Spring-return	FALSE
Suitable for lighting	TRUE
Supply Voltage	500 - 500V
Switch position	1 x On/Off/On
Switch/button features	Front ring (PVC)
Switching angle	2 x 45 °
Switching function latching	FALSE
Type of control element	Toggle
Type of electric connection	N/A
Width	32.3mm
Width opening	32.3mm
With front ring	TRUE
With light source	FALSE
