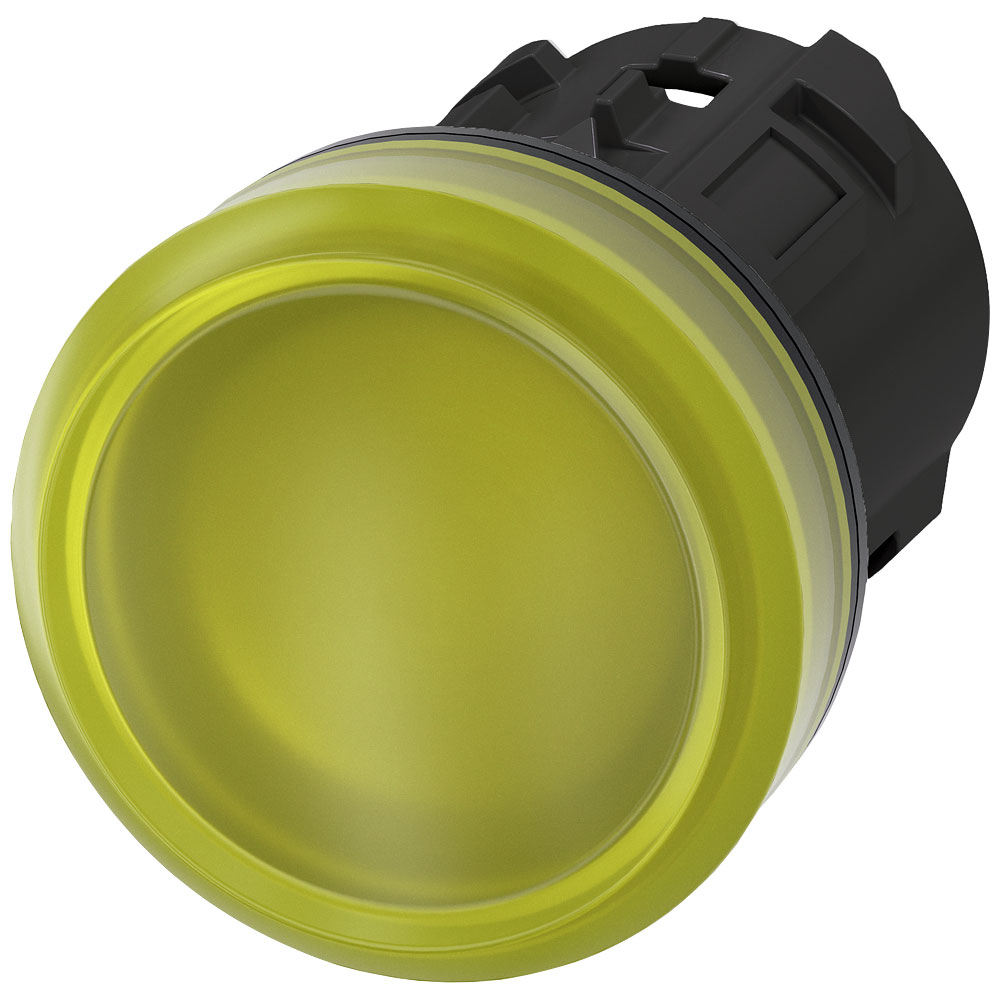

Siemens 3SU10016AA300AA0 SIRIUS ACT indicator light 22mm yellow LED

The Siemens indicator light 3SU1001-6AA30-0AA0 features a planar design in yellow. It is ideal for signalling applications with high visibility requirements. Typical uses include industrial control panels and machinery status indication.

Type	Indicator light
Lamp/Lens Colour	Yellow
(Ø)	29.45mm
Colour front ring	Other
Colour lens	Other
Connection	External LED
Construction type lens	Round
Country of origin	China
Degree of protection (IP), front side	IP67/IP69K
Degree of protection (NEMA)	N/A
Dimensions	(Ø x H) 29.45 mm x 29.5 mm
Height	29.5mm
Height opening	11.799999999mm
Hole Diameter	22.3mm
IP Rating	IP66, IP67, IP69/IP69K
Material front ring	Other
Maximum Temperature	+70°C
Min. temperature	-25°C
Misc Attribute 1	Activation/message element
Misc Attribute 2	3SU1001-6AA30-0AA0
Package depth	30mm
Package height	38mm
Package width	30mm
Panel Cutout Size	22.3mm
Quantity per pack	1 pc(s)
Recess Diameter	22mm
Suitable for number of built-in signal lights	1
Switch/button features	planar
Type of lens	High
Width	29.5mm
Width opening	29.5mm
With front ring	FALSE
