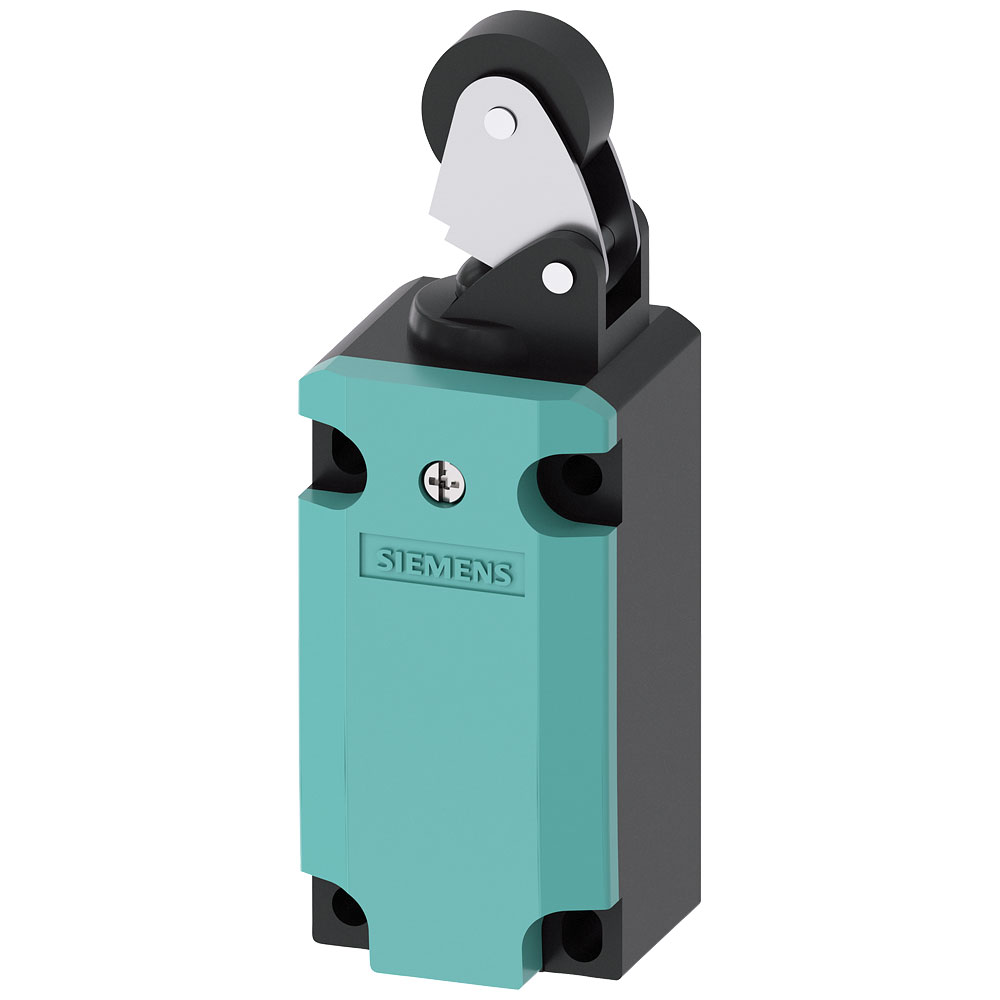

Siemens 3SE51120CE01 Switch metal lever 6A IP66/IP67 1NO/1NC Contacts

The Siemens door-operated switch 3SE5112-0CE01 features a metal lever and a plastic wheel, designed for durability with an IP66/IP67 rating. Typically used in industrial settings, it supports up to 6 A and provides reliable position switching. Ideal for ensuring safety in machinery and equipment operations.

Type	Door-operated switch
Actuating Force	10N
Alignment of the control element	Roller cam straight
Ambient temperature during operating	-25 - 85°C
Coating housing	Lacquered
Connection	Screws
Construction type housing	Cuboid
Contact Material	Silver alloy
Degree of protection (IP)	IP66/IP67
Degree of protection (NEMA)	12
Depth	37.3mm
Diameter sensor	N/A
Dim	(L x W) 119 mm x 40 mm
Durability	15000000
Electrical lifespan	100000
Explosion safety category for dust	None
Explosion safety category for gas	None
Forced opening	TRUE
Height of sensor	37.3mm
Housing Material	Metal
Length	119mm
Length of sensor	119mm
Material	Metal
Max. temperature	+85°C
Min. temperature	-25°C
Misc Attribute	3SE5112-0CE01
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of safety auxiliary contacts	1
Output electronic	FALSE
Rated operation current Ie at AC-15, 125 V	6A
Rated operation current Ie at AC-15, 230 V	N/A
Rated operation current Ie at AC-15, 24 V	6A
Rated operation current Ie at DC-13, 125 V	0.55A
Rated operation current Ie at DC-13, 230 V	N/A
Rated operation current Ie at DC-13, 24 V	3A
Suitable for safety functions	TRUE
Switching current (max.)	6A
Switching function	Quick-break switch
Switching function latching	FALSE
Thread Size	M20 x 1.5
Type of control element	Roller lever
Type of electric connection	N/A
Type of interface	None
Type of interface for safety communication	None
Weight	350g
Width	40mm
Width sensor	40mm
With status indication	FALSE
