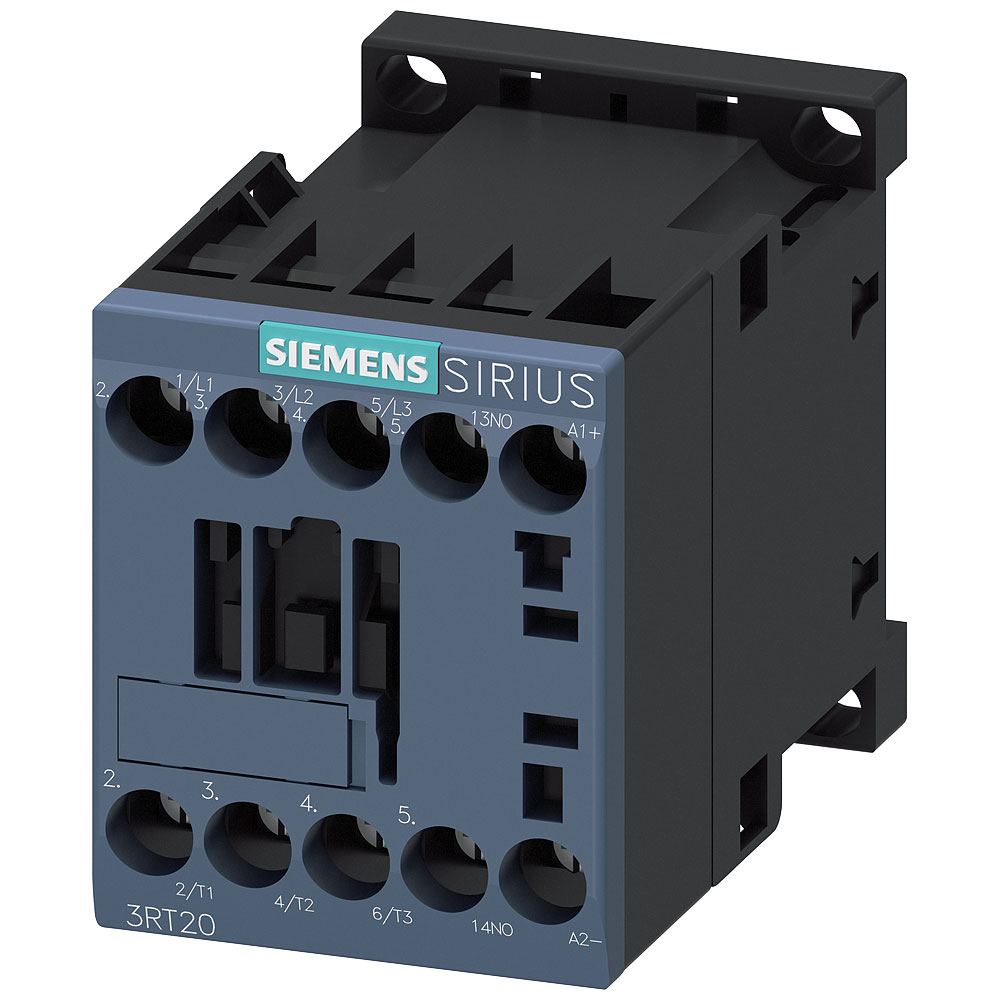

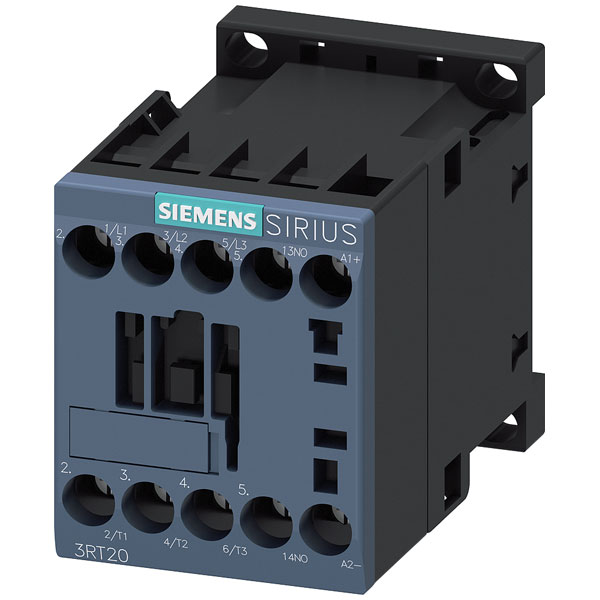

The Siemens 3RT2017-1BB41 contactor is manufactured by Siemens and is designed for use in electrical circuits with a power rating of 5.5 kW, operating at 24 V DC and capable of carrying up to 12 A. This electrical contactor includes an auxiliary contact and is typically used in industrial applications for controlling electric motors and circuits. It is suitable for both power and auxiliary switching tasks in various automation systems.
| Type |
Contactor |
| Coil Voltage |
24V DC |
| Auxiliary contact type |
1 maker |
| Connection |
Screw terminal |
| Contact Current Rating |
12A |
| Contact Type |
3 makers |
| Current load |
12A |
| Depth |
73mm |
| Dimensions |
(W x H x D) 45 x 58 x 73 mm |
| Durability |
3.0E7 |
| Height |
58mm |
| IP Rating |
IP20 |
| Maximum Temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
3RT2017-1BB41 |
| Misc Attribute 2 |
S00 |
| Mounting Style |
DIN rail |
| Number of auxiliary contacts as normally closed contact |
N/A |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of normally closed contacts as main contact |
N/A |
| Number of normally open contacts as main contact |
3 |
| Number of Poles |
3 |
| Operating voltage AC 50 Hz |
N/A |
| Operating voltage AC 60 Hz |
N/A |
| Power |
5.5kW |
| Power Rating |
5.5 |
| Rated control supply voltage AC 50 Hz |
N/A |
| Rated control supply voltage AC 60 Hz |
N/A |
| Rated control supply voltage DC |
24 - 24V |
| Rated operation current Ie at AC-1, 400 V |
22A |
| Rated operation current Ie at AC-3, 400 V |
12A |
| Rated operation current Ie at AC-4, 400 V |
8.5A |
| Rated operation power at AC-3, 400 V |
5.5kW |
| Rated operation power at AC-4, 400 V |
N/A |
| Rated operation power NEMA |
5.516240624 |
| Suitable for distribution board |
TRUE |
| Switching voltage (max.) |
400V AC |
| Terminals |
3-pin |
| Type of electrical connection of main circuit |
Screw connection |
| Voltage type for actuating |
DC |
| Weight |
0.29 |
| Width |
45mm |
